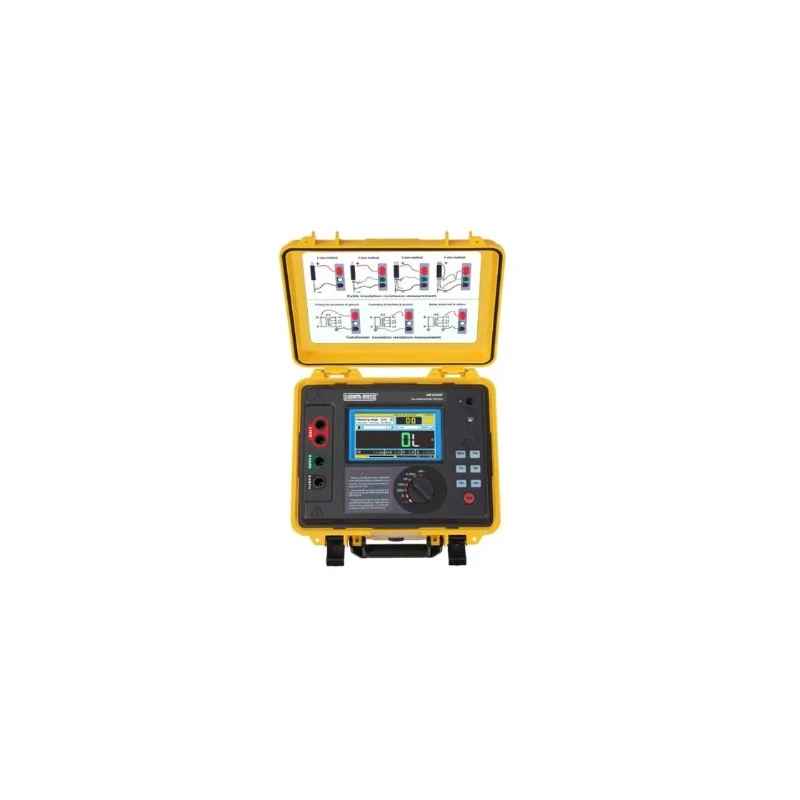

Kusam Meco 0.5 Mω-20 Tω High Voltage Insulation Resistance Tester KM5310IN
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusam Meco KM 5305IN 0.5 MΩ - 10 TΩ Insulation Tester / Host |
| Accuracy | ±(5%Rdg+3V) |
| Capacitance Range | 10nF–25μF |
| Voltage Range | AC/DC 0–1000V |
| Brand | Kusam Meco |
| Dimension | 280(L)×260(W)×160(H)mm |
| Power | Rechargeable Lithium Battery 6.2Ah |
| Working Environment | -20°C To 50°C≤80%RH |
| Function | Insulation Resistance Tester |
| Model | KM5310IN |
| Weight | Approx .4900g |
| Safety | IEC61010-1/IEC61326-1 |
| Short Circuit Current | ≥7mA |
| Protection level | IP65(Closed)/IP40(Open) |
| Automatic Shutdown | After 15 Minutes |
| Data Storage | 1000 Groups |
| Rated Voltage | 250V/500V/1000V/2500V/5000V |
| Insulation Resistance Range | 0.5MΩ–10TΩ |
| USB Upload | Yes |
Key Features
- Measures insulation resistance up to 30TW with 15kV output
- Includes PI, DAR, Ramp, and Filtered Resistance test modes
- Touchscreen interface with combined button and knob operation
- Stores 1000 test results and supports USB data upload
- Rechargeable lithium battery and IP65 dustproof, waterproof design
Product Description
The Kusam Meco KM5310IN High Voltage Insulation Resistance Tester is designed for professional-grade diagnostics up to 20TΩ. Featuring a true color touch screen and USB data export, it simplifies insulation analysis. Equipped with PI/DAR, Ramp, and Filtered Resistance modes, it’s ideal for 400kV substations and electrical maintenance. Its rugged design and intelligent auto-discharge ensure maximum operator safety.
Available on EnvMart, these 10 kV Insulation Testers measure resistance up to 20 TΩ with multiple test modes. Kusam Meco Devices ensure advanced insulation testing accuracy and data storage.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kusam Meco KM5310IN can measure insulation resistance up to 20 TΩ.
The Kusam Meco KM5310IN features PI, DAR, Ramp, and Filtered Resistance test modes.
The Kusam Meco KM5310IN has a voltage output of 15 kV.
The accuracy of the Kusam Meco KM5310IN is ±(5% reading + 3V).
The operating temperature range for the Kusam Meco KM5310IN is -20°C to 50°C with a relative humidity of ≤80%.
The Kusam Meco KM5310IN can store up to 1000 test results.
The Kusam Meco KM5310IN is powered by a rechargeable lithium battery with a capacity of 6.2Ah.
The dimensions of the Kusam Meco KM5310IN are 280 mm (L) x 260 mm (W) x 160 mm (H).
The weight of the Kusam Meco KM5310IN is approximately 4900 grams.
The Kusam Meco KM5310IN has a protection level of IP65 when closed and IP40 when open.
Yes, the Kusam Meco KM5310IN supports USB data upload for easy data transfer.
The Kusam Meco KM5310IN complies with IEC61010-1 and IEC61326-1 safety standards.
