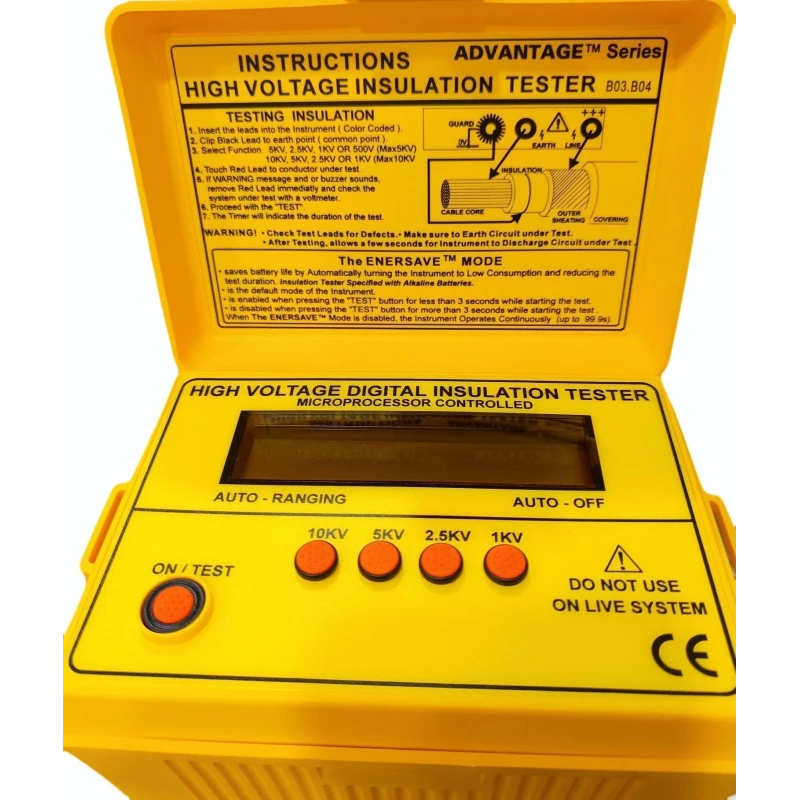

Kusam Meco Automatic High Voltage 10kv Digital Insulation Resistance Tester KM2804
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusum Meco KM 2804 IN / Test Leads-AL-50 (3 Meter) / AL-30 (1.25 Meter) / AL-30C (1.25 Meter) / Shoulder Belt (BET-2800) / Instruction Manual Batteries |
| Accuracy | 0~50G ±3% Of Reading / 50~500G ±5% Of Reading |
| Power Source | 1.5V AA×8 Alkaline Batteries |
| Brand | Kusam Meco |
| Dimension | 170L×120W×95D Mm |
| Altitude | Up To 2000m |
| Model | KM2804 |
| Pollution Degree | 2 |
| Storage Temperature & Humidity | -10°C~65°C ≤80%RH |
| Weight (Battery Included) | Approx 930g |
| Temperature & Humidity | 0°C~40°C ≤80%RH |
| Test Voltage (DCV) | 1kV / 2.5kV / 5kV / 10kV |
| Measuring Range (Auto-Range) | 0~50G / 0~125G / 0~250G / 0~500G |
Key Features
- Selectable test voltages: 1 kV, 2.5 kV, 5 kV, 10 kV
- Measures insulation resistance up to 500 GΩ
- Microprocessor-controlled with auto-ranging and bargraph
- External voltage detection with auto power-off
- Rugged dual-line LCD with built-in hard carrying case
Product Description
Kusam Meco KM2804 Automatic Insulation Tester is designed for high voltage insulation testing up to 10kV. It offers automatic range selection, stable output, and True RMS measurement for precise results. With built-in memory and data hold, it simplifies recording and review. The durable housing and backlit display enhance field usability. Suitable for industrial inspection, maintenance, and power equipment diagnostics, it ensures reliable, safe, and efficient insulation analysis.
Available on EnvMart, these High Voltage Testers offer automatic 10 kV testing and advanced insulation analysis. Kusam Meco Instruments ensure accuracy, safety, and professional performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kusam Meco KM2804 Insulation Resistance Tester has a maximum test voltage of 10 kV.
The KM2804 measures insulation resistance in an auto-ranging mode from 0 to 500 GΩ.
The Kusam Meco KM2804 offers selectable test voltages of 1 kV, 2.5 kV, 5 kV, and 10 kV.
The accuracy of the KM2804 is ±3% of reading for 0~50 GΩ and ±5% of reading for 50~500 GΩ.
The package of the KM2804 includes the tester, test leads (AL-50, AL-30), a shoulder belt, and an instruction manual.
The Kusam Meco KM2804 operates on 1.5V AA alkaline batteries, requiring a total of 8 batteries.
The dimensions of the KM2804 are 170 mm in length, 120 mm in width, and 95 mm in depth.
The weight of the Kusam Meco KM2804, including the battery, is approximately 930 grams.
The operating temperature range for the Kusam Meco KM2804 is from 0°C to 40°C with a humidity level of up to 80% RH.
The pollution degree rating for the Kusam Meco KM2804 is rated at 2.
The Kusam Meco KM2804 can be used at altitudes of up to 2000 meters.
The recommended storage temperature for the Kusam Meco KM2804 is between -10°C to 65°C with a humidity level of up to 80% RH.
