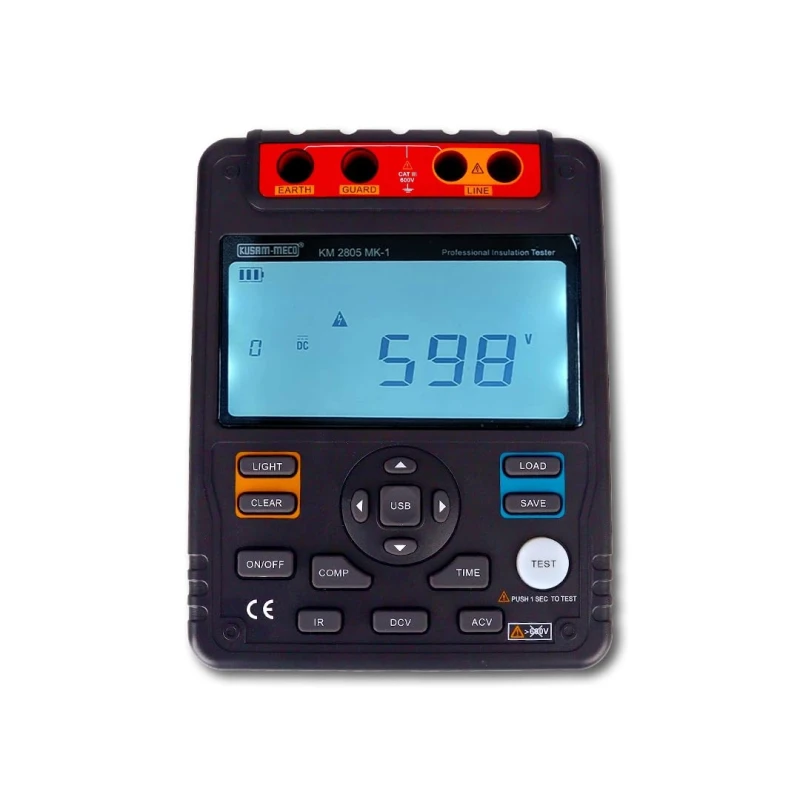

Kusam Meco Digital Insulation Resistance Tester (5kv 1t Ohms With Pi & Dar) KM2805Mk-1
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Plug Test Leads With Alligator Clips (Red Black & Green) / Batteries / User Manual / Tool Box / USB Cable / Software / Power Adapter |
| Resolution | 1mV |
| Accuracy | ±(% Of Reading)+Least Significant Digits |
| Voltage | DC 500V / 1000V / 2500V / 5000V |
| Measurement Range | DC Voltage / AC Voltage |
| Display | LCD |
| Relative Humidity | 85% |
| Range | Auto Ranging |
| Brand | Kusam Meco |
| Dimension | 202H×155W×94L mm |
| Storage Temperature | -20°C~60°C |
| Battery type | 8×1.5V LR14 Or Power Adaptor |
| Model | KM2805Mk-1 |
| Temperature | -20°C~60°C |
| Weight | Approx 2kg |
| Short Circuit Current | ≥3.5mA |
| Operating Range | 18°C~28°C |
| Current consumption | Max 1.0A Avg 20mA |
| Battery indicator | Displays Battery Condition |
| Time | Adjustable Within 15 Minutes |
| Relative Humidity Range | 45~75%RH |
| Test Current | 3.5mA |
| Display Backlight | Bright Backlight For Dim Light Use |
| Computer Connection | USB Interface |
| Warning | Auto Discharge Voltage Function |
| Open Circuit Voltage | ±20% |
| Overloading | Display OL On Insulation Resistance Range |
| Icon Display | Function And Battery Indicator Icons |
| Data Logging & Recall | 18 Points |
| Autorange | Automatic Range Selection |
| Compare Measurement | Pass/Fail Compare Function |
| PI Measurement | Yes |
| Accuracy Voltage | ±(2%+3) |
| Insulation Resistance Measurement | 500V(1MΩ~5.5GΩ)/1000V(2MΩ~40GΩ)/2500V(5MΩ~100GΩ)/5000V(10MΩ~1000GΩ) |
Key Features
- Test voltages selectable up to 5 kV for insulation resistance
- Measures up to 1 TΩ with automatic range selection
- Stores 18 test results with PI and DAR functions
- USB interface for data export and backlit LCD
- Auto-discharge ensures safe handling after tests
Product Description
Kusam Meco KM2805Mk-1 Digital Insulation Tester is a handheld 5kV device for measuring insulation resistance up to 1TΩ. Equipped with PI and DAR functions, it ensures precise evaluation of insulation condition. The bright LCD screen provides easy readability, while the rugged casing offers durability in field environments. Auto discharge and safety lock features make testing safe and reliable. Widely used in power, industrial, and maintenance applications, it guarantees consistent performance and high accuracy.
Available on EnvMart, these Insulation Resistance Testers feature 5 kV output and PI/DAR measurement. Kusam Meco Testers ensure long-term accuracy and reliability for industrial insulation analysis.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kusam Meco KM2805Mk-1 can measure insulation resistance up to 1 TΩ.
The tester supports selectable test voltages of DC 500V, 1000V, 2500V, and 5000V.
The accuracy of the Kusam Meco KM2805Mk-1 is ±(% of Reading) + Least Significant Digits.
Yes, the Kusam Meco KM2805Mk-1 can store up to 18 test results with data logging and recall functions.
The operating temperature range for the Kusam Meco KM2805Mk-1 is between 18°C and 28°C.
The dimensions of the Kusam Meco KM2805Mk-1 are 202H × 155W × 94L mm.
The Kusam Meco KM2805Mk-1 weighs approximately 2 kg.
The package includes plug test leads with alligator clips, batteries, a user manual, a toolbox, a USB cable, software, and a power adapter.
The resolution of the Kusam Meco KM2805Mk-1 is 1 mV.
The tester features an auto discharge voltage function to ensure safe handling after tests.
The relative humidity range for the Kusam Meco KM2805Mk-1 is 45% to 75% RH.
The short circuit current of the Kusam Meco KM2805Mk-1 is ≥3.5 mA.
