Hioki Digital Multimeter DT4222
Specifications
| Country of Origin | Japan |
|---|---|
| DC Voltage Range | 600.0 mV to 600.0 V / 4 ranges / ±0.5 % rdg. ±5 dgt. accuracy |
| AC Voltage Range | 6.000 V to 600.0 V / 3 ranges / 40 Hz - 1 kHz / ±1.0 % rdg. ±3 dgt. (True RMS / crest factor 3) |
| Capacitance Range | 1.000 μF to 10.00 mF / 5 ranges / ±1.9 % rdg. ±5 dgt. accuracy |
| Resistance Range | 600.0 Ω to 60.00 MΩ / 6 ranges / ±0.9 % rdg. ±5 dgt. accuracy |
| Display | Main & Sub LCD (4 digits / max. 6000) / bar graph |
| Frequency range | AC V measurement - 99.99 Hz (≥5 Hz) to 9.999 kHz / 3 ranges / ±0.1 % rdg. ±2 dgt. accuracy |
| Diode Test | Open terminal voltage - ≤2.5 V / Testing current - ≤0.5 mA / Forward voltage threshold - 0.15 V to 1.5 V |
| Brand | HIOKI |
| Power Supply | 1× LR03 alkaline battery / 40h use (backlight OFF) |
| Dimensions | 72 × 149 × 38 mm |
| Model | DT4222 |
| Weight | 190 g (with battery and holster) |
| Other functions | Filter function / display hold / relative value display / auto-power save |
| Continuity Check | ON - ≤25 Ω (buzzer sound) / OFF - ≥245 Ω / Response time - ≥0.5 ms |
| Refresh Rate | 5 times/s (Capacitance - 0.05-5 times/s / Frequency - 1-2 times/s) |
Key Features
- Pocket-sized, compact digital multimeter for versatile use.
- Includes resistance, capacitance, and diode test functionalities.
- Compact and lightweight design for easy handling and portability.
- Operates on a single, easily replaceable AAA alkaline battery.

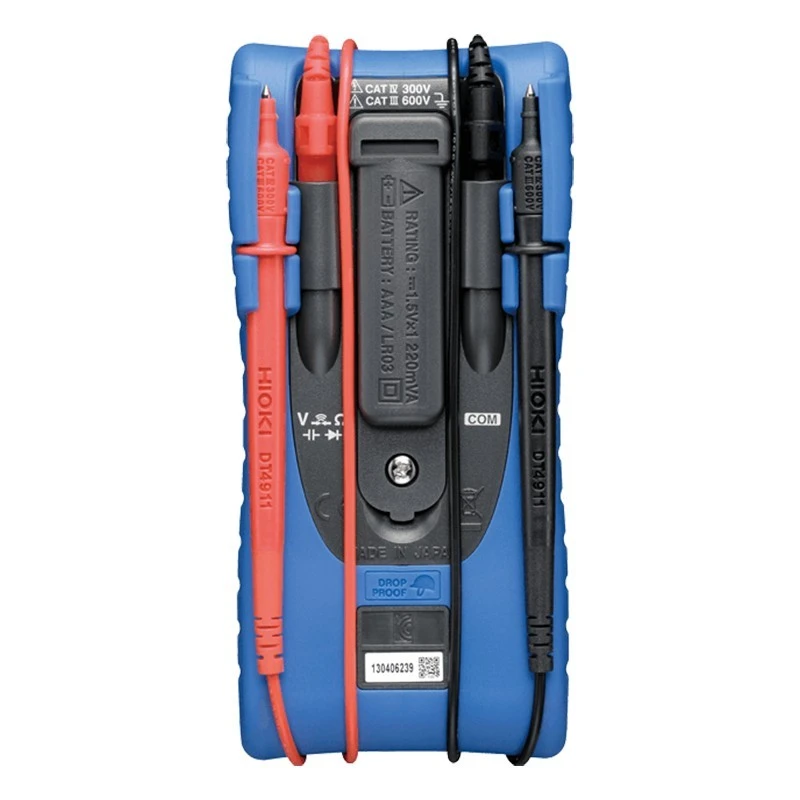

- Rear probe connections for clear screen visibility and convenient storage.
- Features a low-pass filter for accurate inverter output voltage measurement by eliminating harmonics.
- Provides True RMS measurement for accurate readings of distorted current waveforms.
- Designed and manufactured in Japan, backed by a 3-year warranty for high quality and reliability.
Product Description
The Hioki DT4200 Digital Multimeter Series consists of a complete lineup of 9 models ranging from professional to industrial to pocket meters, delivering a super-fast response rate and safety features that enhance electrical testing. The DT4222 is a pocket-sized digital multimeter designed specifically for general-purpose testing, with ±0.5% DC V accuracy and a wide 40 Hz to 1 kHz AC V bandwidth.
Available on EnvMart, these Multimeters are designed for accurate measurement of voltage, current, and resistance in electrical circuits. Hioki Multimeters offer high precision and reliability, making them essential for electrical testing, diagnostics, and maintenance applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DC voltage measurement range is from 600.0 mV to 600.0 V across 4 ranges, with an accuracy of ±0.5 % reading ±5 digits.
It supports an AC voltage range from 6.000 V to 600.0 V, with a frequency bandwidth of 40 Hz to 1 kHz and an accuracy of ±1.0 % reading ±3 digits (True RMS).
The capacitance measurement range is from 1.000 μF to 10.00 mF, with an accuracy of ±1.9 % reading ±5 digits across 5 ranges.
The resistance measurement range is from 600.0 Ω to 60.00 MΩ, with an accuracy of ±0.9 % reading ±5 digits across 6 ranges.
The dimensions are 72 × 149 × 38 mm, and it weighs 190 g including the battery and holster.
It operates on a single LR03 alkaline battery, providing approximately 40 hours of use with the backlight turned off.
Yes, it includes a low-pass filter function for accurate inverter output voltage measurement, as well as a diode test and continuity check functionality.
It features a main and sub LCD display with 4 digits and a maximum reading of 6000, along with a bar graph.
The frequency measurement capability ranges from 99.99 Hz (≥5 Hz) to 9.999 kHz, with an accuracy of ±0.1 % reading ±2 digits across 3 ranges.
It offers features such as a filter function, display hold, relative value display, and auto-power save.
The continuity check is ON at ≤25 Ω (with buzzer sound) and OFF at ≥245 Ω, with a response time of ≥0.5 ms.
This multimeter is designed and manufactured in Japan.
