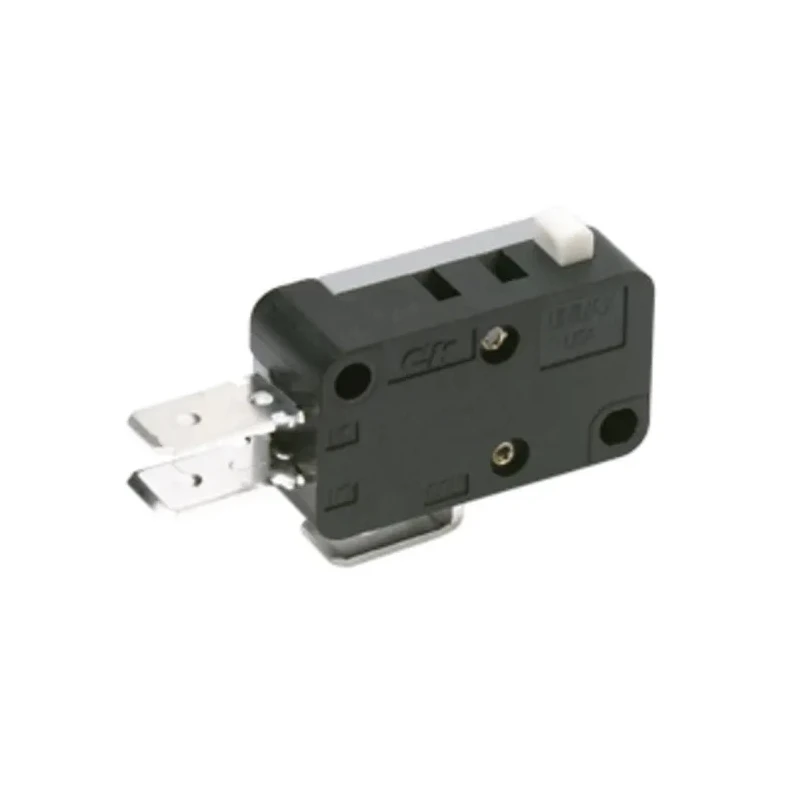

C & K Pin Plunger Snap Action Micro Switch, Solder Terminal, 500 mA / 15A, 250 V AC, SPST TMCJG6VP0010Y

Name: C & K Pin Plunger Snap Action Micro Switch, Solder Terminal, 500 mA / 15A, 250 V AC, SPST TMCJG6VP0010Y
Brand: C & K
SKU: 425815
Price: 1512.44 INR
Availability: InStock



Category Micro Switch Brand C & K Condition New

Specifications

Country of Origin	China
Brand	C & K
Model	TMCJG6VP0010Y
Series	TM
Maximum Operating Temperature	150°C
Contact Configuration	SPST
Actuator Type	Pin Plunger
Minimum Operating Temperature	-55°C
Terminal type	Solder
Standards/Approvals	cURus
Switch Contact Current	500, 15mA
Operating Force	150g
Contact AC Voltage	250V ac
Microswitch Type	Miniature

Key Features

Equipped with a solder terminal type for secure electrical connections.
Operates with a contact current rating of 500 mA for sensitive and up to 15 A for higher power circuits.
Rated for 250 V AC voltage ensuring compatibility with standard AC loads.
Requires 150 grams of operating force to actuate the pin plunger mechanism.
Functional across a wide temperature range from -55°C to 150°C for industrial environments.
Compact miniature form factor suited for tight installation spaces.
Features a single-pole single-throw (SPST) configuration for basic on-off switching.
Constructed with copper alloy contacts for reliable conductivity and durability.

Product Description

C & K TMCJG6VP0010Y Pin Plunger Snap Action Micro Switch features a solder terminal and a compact miniature design, delivering reliable switching performance at 250 V AC and currents from 500 mA to 15 A. This snap action micro switch actuates via a pin plunger lever requiring 150 g operating force, suitable for diverse industrial applications.

The switch is engineered to operate efficiently in harsh environments, supporting temperatures from -55°C to 150°C, and is built with copper alloy contacts for superior electrical conductivity and durability. Its SPST (single-pole single-throw) contact configuration provides simple on/off control suitable for various equipment.

Its robust mechanical design guarantees up to 350,000 machine cycles, ensuring long-term reliability. The compact form factor makes it ideal for space-saving installations in consumer appliances and industrial motors and pumps.

C & K TMCJG6VP0010Y complies with cURus certifications, assuring compliance with North American electrical safety standards. Equipped with solder terminal type for secure mounting. Compact design suitable for miniature applications.

Copper alloy contact material enhances conductivity and life span. Wide operating temperature range from -55°C to 150°C. Endures up to 350,000 mechanical life cycles. Voltage rating of 250 V AC meets industry standards. Contact current rated at 500 mA and 15 A for versatile use.

SPST contact configuration for simple switching tasks. Highly reliable pin plunger actuator mechanism requiring 150 g force. Ideal for consumer appliances, motors, and pump applications.

This micro switch is used in electronics and electrical assembly, industrial automation, and HVAC systems requiring precise and reliable switching functions. Its durability and certification make it a practical choice for critical control environments.

Discover more quality Micro Switches and related components in our comprehensive Electronics & Electricals catalogue at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This micro switch has a contact current rating of 500 mA for sensitive circuits and up to 15 A for higher power applications.

It is rated for 250 V AC, ensuring compatibility with standard AC loads.

This model features a pin plunger actuator type, which requires an operating force of 150 grams to actuate.

It operates efficiently across a wide temperature range from -55°C to 150°C, making it suitable for industrial environments.

The switch has a single-pole single-throw (SPST) contact configuration for basic on-off switching.

It is designed to endure up to 350,000 mechanical life cycles, ensuring long-term reliability in applications.

This model is equipped with solder terminals for secure electrical connections.

The contacts are constructed from copper alloy, which enhances conductivity and durability.

Yes, it complies with cURus certifications, assuring adherence to North American electrical safety standards.

This micro switch is suitable for various applications including consumer appliances, industrial motors, and HVAC systems requiring reliable switching functions.

It features a compact miniature form factor, making it ideal for tight installation spaces.

This model belongs to the TM series of micro switches.
