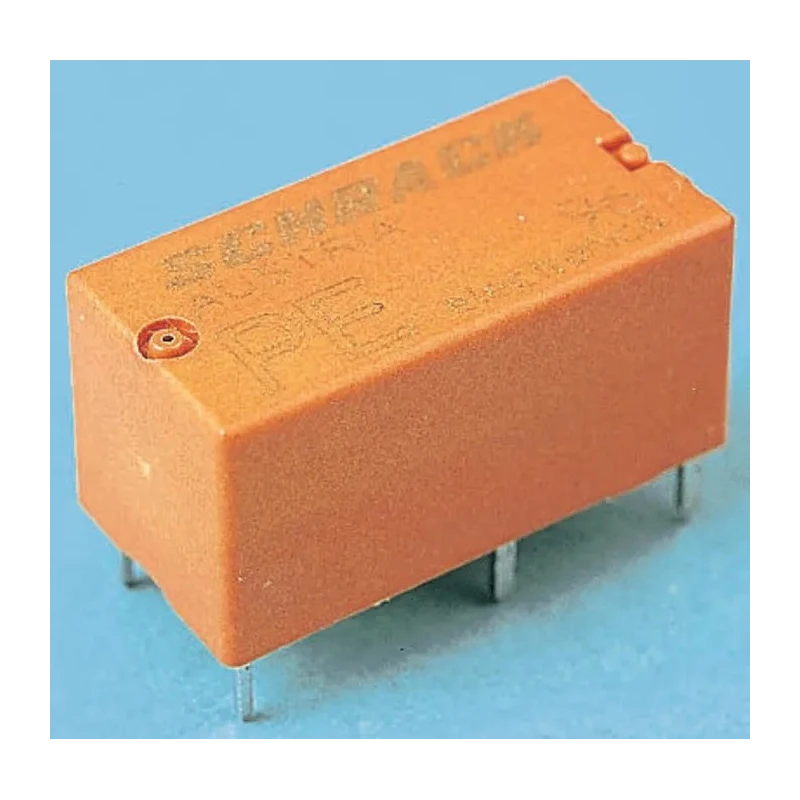

TE Connectivity PCB Power Relay, 24V DC Coil, 5A Switching Current, SPST, PE Series 5-1415535-1

TE Connectivity 5-1415535-1 is a high-quality PCB Power Relay featuring a 24V DC coil voltage and 5A switching current with an SPST contact configuration, designed specifically for mounting on printed circuit boards.

Belonging to the PE series, this relay offers an excellent combination of compact size and reliable electrical characteristics, making it ideal for industrial electronic applications, household appliances, and control equipment.

The relay features a coil resistance of 2.7kΩ and a coil power consumption of just 211mW, demonstrating its efficiency and high coil sensitivity at 200mW. This low power consumption ensures less heating and better energy management in sensitive circuits.

Operating temperature ranges from -40°C to 85°C allow this relay to function reliably in harsh environmental conditions. It supports switching AC voltages up to 400V AC, and its silver alloy contacts guarantee superior conductivity and wear resistance over long operational cycles.

The compact dimensions of 20mm length, 10mm width, and 10mm height make it suitable for densely packed PCB layouts, while the solder terminal type facilitates secure and durable mounting.

This product conforms to strict international standards including REACH, VDE, UL, and RoHS, reflecting its compliance with regional and global regulatory and safety requirements.

Applications include industrial automation systems, electronic control devices, household appliance circuits, and other scenarios requiring dependable power relays with efficient coil power consumption.

Choose TE Connectivity 5-1415535-1 PCB Power Relay for dependable switching performance in compact industrial and commercial electronic equipment designs. Explore more Power Relays and electronic components in EnvMart's Electronics & Electricals category for your industrial, manufacturing, and automation needs.

The relay is designed for PCB mounting with solder terminal type. It offers a high coil sensitivity power of 200mW and coil power of 211mW. Operating temperature ranges from -40°C to 85°C, suitable for industrial environments.

Switching AC voltage rating is up to 400V AC ensuring robust performance. Constructed with silver alloy contacts for reliable conductivity and durability. Compact dimensions at 20mm length, 10mm width, and 10mm height allow for space-efficient PCB designs.

Certified to standards including REACH, VDE, UL, and RoHS, ensuring quality and compliance.
