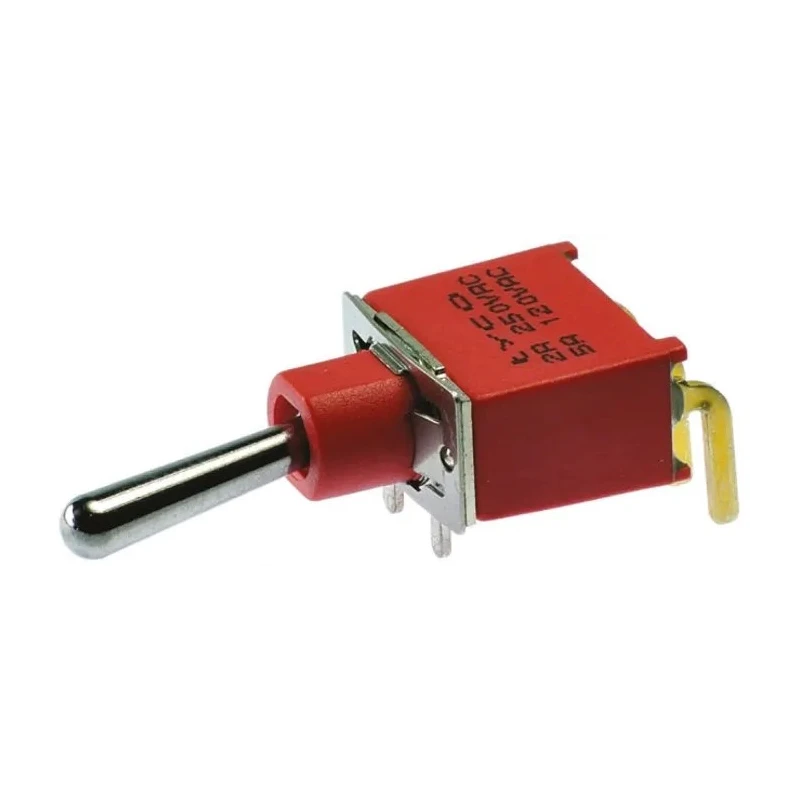

TE Connectivity Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 28 V dc 115 V ac 1-1825142-5

TE Connectivity 1-1825142-5 Toggle Switch PCB Mount On-On SPDT is engineered to provide durable and efficient switching solutions in electronic and electrical applications operating at 28 V dc and 115 V ac voltages. Featuring a robust phenolic actuator and epoxy sealed terminals, this toggle switch is well suited for PCB mounting in environments requiring IP67 rated protection.

This switch has a single pole double throw (SPDT) contact configuration, enabling versatile circuit control with On-On switch operation. The rated contact current is 400mA, making it suitable for moderate current switching tasks in industrial and commercial electrical systems.

Rated operational temperature ranges from -30°C to 85°C, allowing use in various environmental conditions. Its stainless steel frame and brass tin plated solder support enhance mechanical reliability and ease of installation. The epoxy sealed terminal ensures protection against environmental contaminants, making it ideal for applications requiring stringent durability standards.

The switch meets RoHS compliance standards, reflecting its safe and environmentally friendly design. Mechanical life is rated at 6000 cycles, assuring long-term operational stability and consistent performance.

Typical use cases include industrial automation controls, instrumentation panels, control cabinets, and electronic equipment that demand reliable, durable switch components protected against dust and water ingress.

The switch features a single pole double throw (SPDT) contact configuration. It operates with an On-On switch operation providing reliable switching cycles. Rated for 400mA contact current ensuring safe electrical switching.

Designed for PCB mounting with through hole terminal type for secure soldering. IP67 rated sealing guarantees dust tight and water immersion protection. The actuator is made of phenolic material with a length of 12.7mm for ergonomic operation.

Suitable for use with 28 V dc and 115 V ac contact voltages. Operates reliably from -30°C up to a maximum of 85°C ambient temperature. Meets RoHS standards ensuring compliance with hazardous material directives. Mechanical durability rated for 6000 switch cycles for long-term use.
