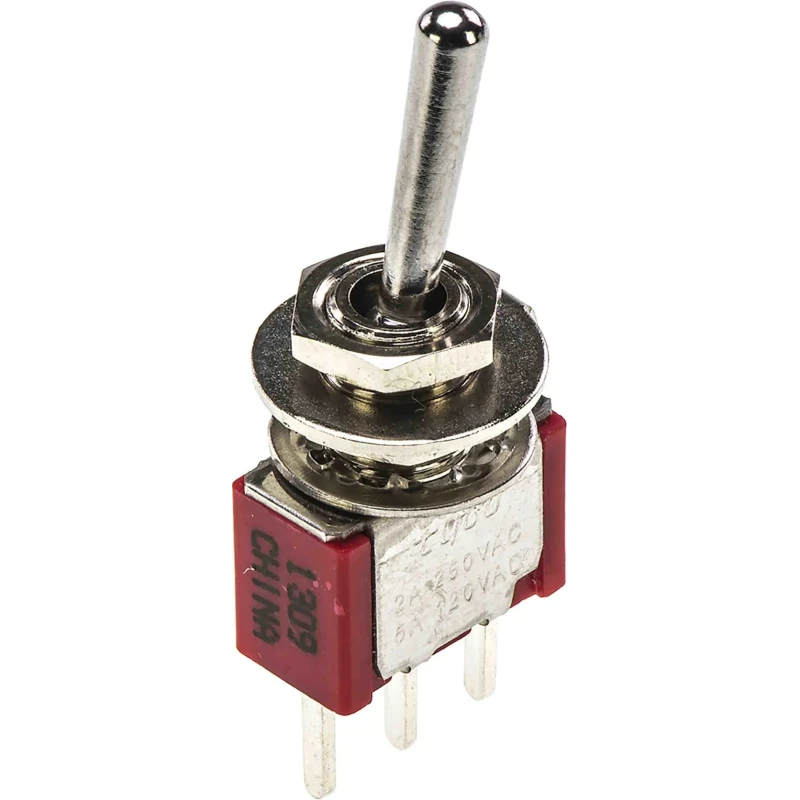

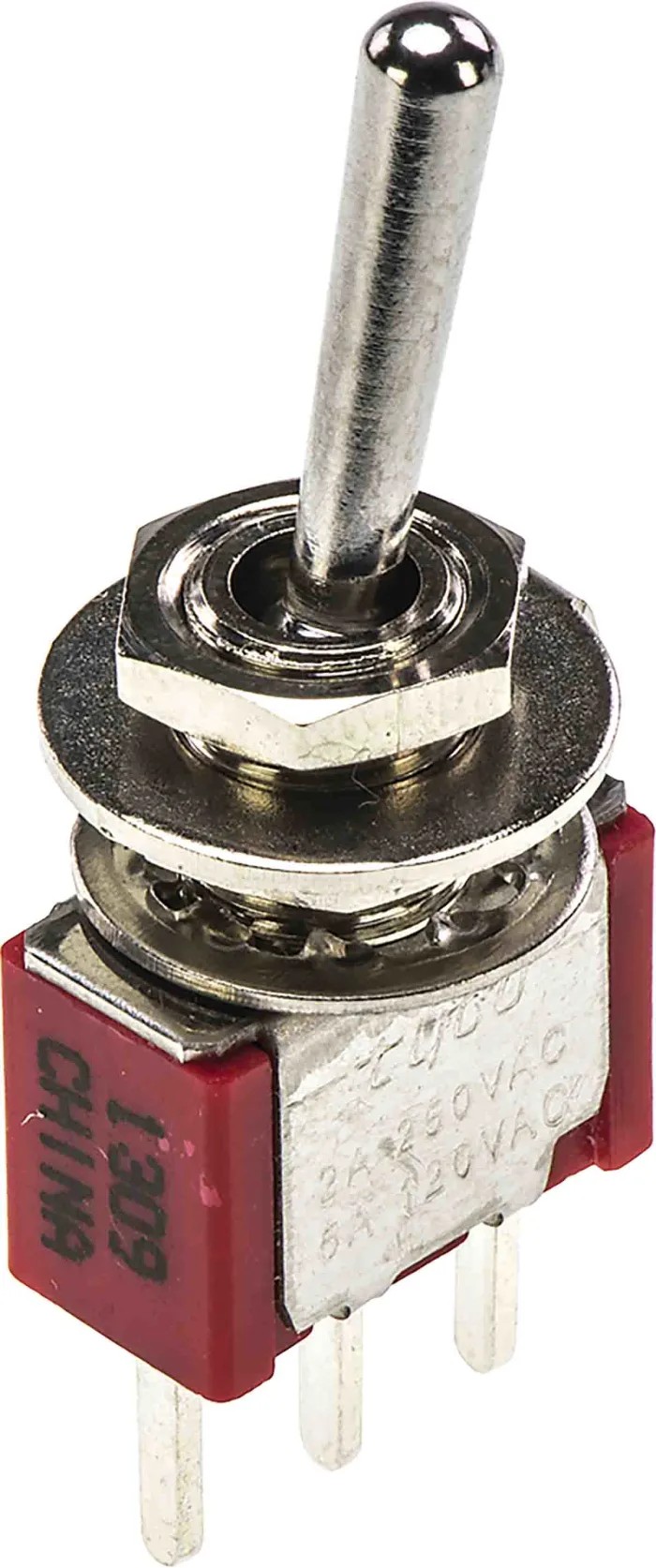

TE Connectivity Toggle Switch PCB Mount On-Off-On SPDT Through Hole Terminal 28V dc 115V ac 3-1825137-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | (On)-Off-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 115V ac |
| Actuator Material | Nickel |
Key Features
- The switch features a robust IP67 rating for dust and water protection.
- It has a contact current capacity of 5A suitable for moderate electrical loads.
- Constructed with a nickel actuator for durability.
- Allows (On)-Off-(On) switch configuration for versatile control.
- Designed for PCB mounting with a panel cutout size of 6.35 mm for easy installation.
- Epoxy sealed terminals provide reliable electrical contact.
- Stainless steel frame with brass tin plated solder support enhances mechanical stability.
- Operates reliably in temperatures ranging from -30°C to 85°C.
Product Description
TE Connectivity 3-1825137-7 Toggle Switch is a PCB mount switch designed for On-Off-On operation with SPDT contact configuration. Rated for DC voltage of 28V and AC voltage of 115V, this switch is suitable for a range of electrical control applications. Its through hole terminal construction ensures secure connections on printed circuit boards.
The switch features a stainless steel frame combined with brass tin plated solder supports for enhanced mechanical robustness. Epoxy sealed terminals provide protection against contaminants, contributing to an IP67 rated enclosure for dust and water resistance. The actuator, made of nickel, has a length of 10.41 mm suitable for reliable manual switching.
Designed for use in demanding industrial and automation environments, it supports a switch contact current of 5A and withstands operating temperatures from -30°C to 85°C. Its compact panel cutout size of 6.35 mm enables integration into compact electronic assemblies.
This toggle switch is RoHS certified, ensuring compliance with environmental regulations by restricting hazardous substances. Typical applications include automation systems, PCB-based control panels, electrical equipment requiring manual on/off switching, and machinery controls.
The switch's SPDT contact configuration allows selection between two circuits. On-Off-On switch operation offers an intermediate off position with two selectable ON states. The nickel actuator and metal frame assure durability and reliable performance.
IP67 rating ensures protection from dust ingress and water immersion. Through hole mounting enables secure installation on printed circuit boards. Operational temperature range supports use in varied environmental conditions.
Compliance with RoHS standards makes it environmentally friendly. Compact panel cutout facilitates installation in tight spaces.
Overall, the TE Connectivity 3-1825137-7 toggle switch is engineered for industrial, automation, HVAC, and electrical control system applications where reliable switching and robust construction are critical. Browse more Toggle Switches from TE Connectivity and related automation components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch has an IP67 rating, providing protection against dust ingress and water immersion.
It features a Single Pole Double Throw (SPDT) contact configuration, allowing selection between two circuits.
The switch is rated for a DC voltage of 28V and an AC voltage of 115V.
The contact current capacity is 5A, suitable for moderate electrical loads.
It operates reliably in temperatures ranging from -30°C to 85°C.
The required panel cutout size for installation is 6.35 mm.
The actuator is constructed from nickel, which contributes to its durability.
This toggle switch is designed for PCB mounting with through hole terminals for secure connections.
Yes, this model is RoHS certified, ensuring compliance with environmental regulations by restricting hazardous substances.
It is suitable for automation systems, PCB-based control panels, and electrical equipment requiring manual on/off switching.
The actuator length is 10.41 mm, which is suitable for reliable manual switching.
The switch features a stainless steel frame combined with brass tin plated solder supports to enhance mechanical stability.
