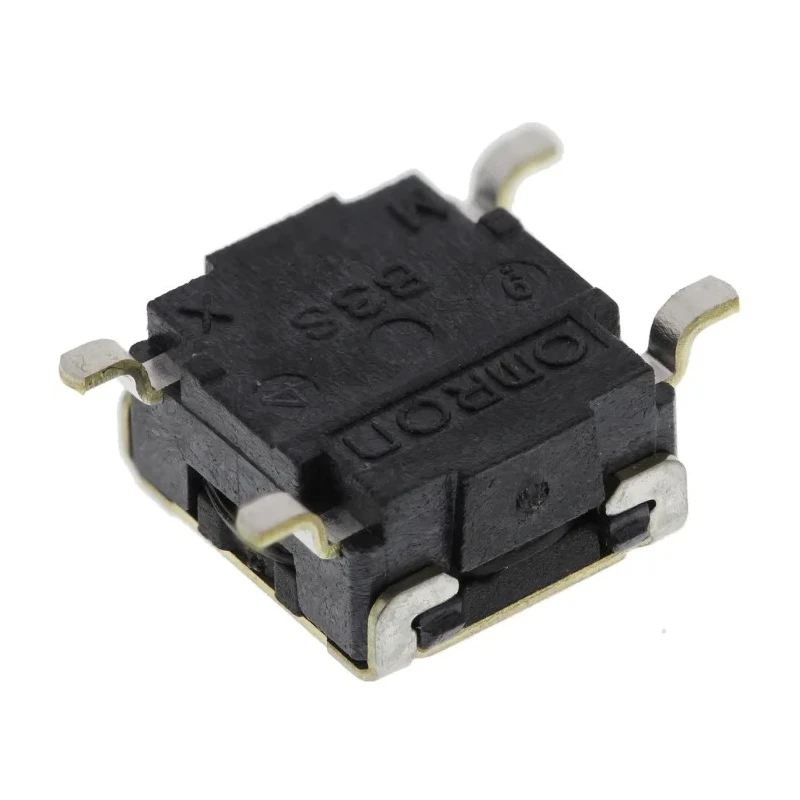

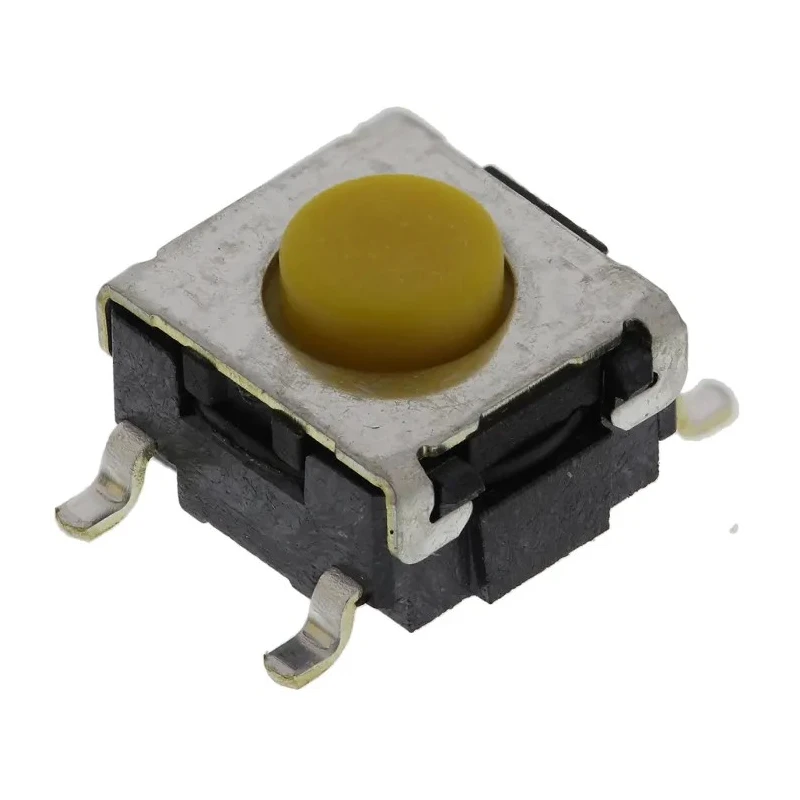

Omron IP64 Black Tactile Switch Button 0.8 mm SPST 50mA 24 V dc Through Hole B3S-1002P
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 4.3mm |
| Length | 6.6mm |
| Model | B3S-1002P |
| IP Rating | IP64 |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | B3S1000 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Actuator Colour | Black |
| Actuator Length | 0.8mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Button |
| Switch Contact Current | 50mA |
| Operating Force | 2.26N |
| Mechanical Life | 300000Operations |
| Reflow temperature | 235°C, 10 secs max |
| Aratas Black Tactile Switch Button, 0.55 mm, SPST 50mA 24 V dc, SurfaceBrand | Omron |
Key Features
- Features a single-pole single-throw (SPST) contact configuration for simple ON/OFF switching.
- Black actuator button with a compact 0.8 mm actuator length providing tactile feedback.
- Rated for 50mA current at 24 V dc suitable for low-power electronic circuits.
- Through hole mount type facilitating secure PCB installation with surface mount terminals.
- Durable IP64 rated sealing protecting against dust ingress and water splashes.
- Mechanical life expectancy of 300,000 operations ensuring long-term reliability.
- Operates within temperature range from -25°C to 70°C for demanding environments.
- High dielectric strength over 500 Vac for one minute ensures electrical safety.
Product Description
Omron B3S-1002P is a high-quality IP64 rated black tactile switch button featuring a 0.8 mm actuator length and SPST contact configuration. This switch supports a DC voltage of 24 V at 50mA current, making it ideal for electronic switching applications where tactile feedback and durability are critical.
The compact design with through hole mounting and surface mount terminals is suitable for PCB assemblies requiring precise actuation. It offers sealed construction with IP64 protection to prevent dust and water ingress, enhancing operation in industrial and automation environments. The tactile switch is capable of enduring mechanical life cycles up to 300,000 operations, withstanding temperatures from -25°C up to 70°C.
Key electrical characteristics include dielectric strength greater than 500 Vac for one minute and insulation resistance exceeding 100 MΩ at 250 V dc, ensuring safety and reliability. This product is RoHS compliant and manufactured in China.
The Omron B3S-1002P tactile switch is well-suited for industrial automation systems, instrumentation, electronic equipment controls, and other applications requiring reliable push-button operation with tactile response.
Single-pole single-throw (SPST) contact configuration. Black actuator button, 0.8 mm length. Through hole mounting with surface mount terminals. IP64 dust and water splash protection. Mechanical life of 300,000 operations.
Operating temperature range: -25°C to 70°C. Dielectric strength: >500 Vac for 1 min. Insulation resistance: >100 MΩ at 250 V dc. RoHS compliant and made in China. Explore more Tactile Switches and related electronic components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single-pole single-throw (SPST) contact configuration, allowing for simple ON/OFF switching.
It is rated for a maximum current of 50mA at a contact DC voltage of 24V.
This tactile switch has an IP64 rating, providing protection against dust ingress and water splashes.
The mechanical life expectancy of the B3S-1002P is 300,000 operations, ensuring long-term reliability.

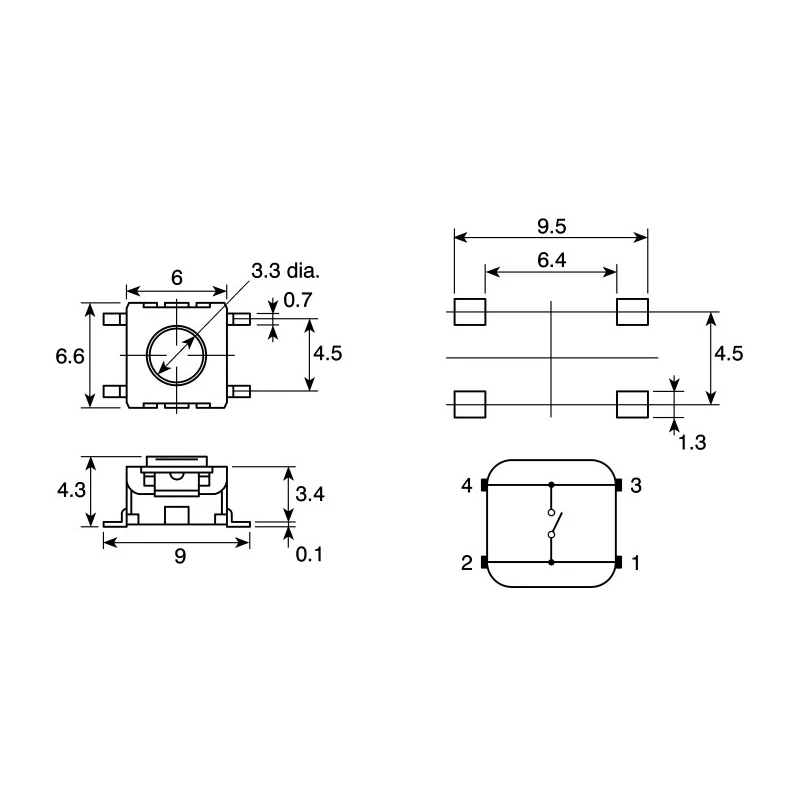

The switch has a height of 4.3mm, a length of 6.6mm, and a width of 6mm.
It operates effectively within a temperature range of -25°C to 70°C.
This unit features a through hole mount type, facilitating secure installation on PCBs.
It is equipped with surface mount terminals, suitable for various PCB applications.
The actuator length is 0.8mm, providing tactile feedback during operation.
The dielectric strength is greater than 500 Vac for one minute, ensuring electrical safety.
Yes, this tactile switch is RoHS compliant, adhering to environmental standards.
It is well-suited for industrial automation systems, instrumentation, and electronic equipment controls.
