Omron Sealed Subminiature Roller Lever Micro Switch, Solder Terminal, 100mA, 30 V dc, SPDT, IP67 D2SW-01L2H

Free Delivery in India | Lowest Global Shipping Charges

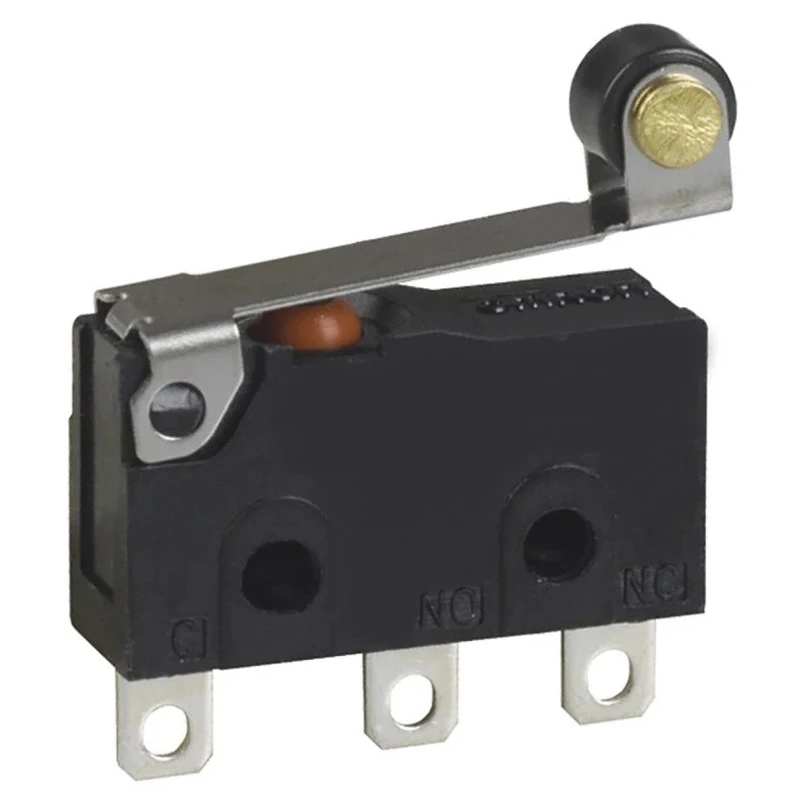

Omron Sealed Subminiature Roller Lever Micro Switch, Solder Terminal, 100mA, 30 V dc, SPDT, IP67 D2SW-01L2H

Name: Omron Sealed Subminiature Roller Lever Micro Switch, Solder Terminal, 100mA, 30 V dc, SPDT, IP67 D2SW-01L2H
Brand: Omron
SKU: 425325
Price: 6.08 USD
Availability: InStock



Category Micro Switch Brand Omron Condition New

Specifications

Country of Origin	Japan
Brand	Omron
Operating Temperature Range	-40 to +80°C
Model	D2SW-01L2H
IP Rating	IP67
Series	D2SW
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Actuator Type	Roller Lever
Contact Rating	3A@30Vdc/125Vac, 2A@250Vac
Minimum Operating Temperature	-40°C
Terminal type	Solder
Standards/Approvals	RoHS
Contact DC Voltage	30V dc
Switch Contact Current	100mA
Operating Force	0.59N
Mechanical Life	5000000Operations
Microswitch Type	Sealed Subminiature

Key Features

The switch has a SPDT contact configuration suitable for versatile applications.
Operating voltage is rated up to 30 V DC with a contact rating of 3A@30Vdc/125Vac and 2A@250Vac.
Designed for durability with a mechanical life of 5,000,000 operations.
Operates reliably between -40°C and 85°C, suitable for harsh environments.
Features a robust roller lever actuator type for precise switching control.
Constructed with a sealed miniature monoblock housing ensuring high sealing capability.
IEC IP50 rated for solder/pcb terminal types and IP67 rated for wire lead types.
Compliant with RoHS standards ensuring environmental safety.

Product Description

Omron D2SW-01L2H is a sealed subminiature roller lever micro switch designed for industrial, automation, and electrical system control applications. This micro switch features a solder terminal connection type and delivers a contact current rating of 100mA at 30 V DC, making it suitable for low current switching tasks. The SPDT contact configuration allows for single-pole double-throw operation enhancing flexibility in circuit design.

The device operates reliably over a broad temperature range from -40°C to 85°C, with a mechanical operational life extending to 5 million cycles, ensuring long-term durability in demanding environments. Its monoblock construction is highly sealed, providing excellent protection against dust and water ingress with an IP67 rating for wire lead versions, suitable for use in harsh or exposed conditions.

The roller lever actuator provides precise and sensitive actuation suitable for automation controls and limit switch applications. It is IEC IP50 rated for solder/pcb terminals, maintaining rigorous protection and reliability standards. This model complies with RoHS environmental directives, underscoring its eco-friendly design and manufacture.

Manufactured in Japan, the Omron D2SW-01L2H model combines premium build quality with robust performance, making it ideal for industrial automation, HVAC controls, manufacturing equipment, and other electrical device integrations.

The switch provides dependable, high-precision switching in industrial and laboratory automation systems. Its sealed and durable design withstands dusty and wet environments effectively. Suitable for demanding mechanical applications requiring millions of operation cycles.

Compact subminiature size allows for space-saving implementations. Operates at low voltage and current ratings for sensitive circuit protection.
