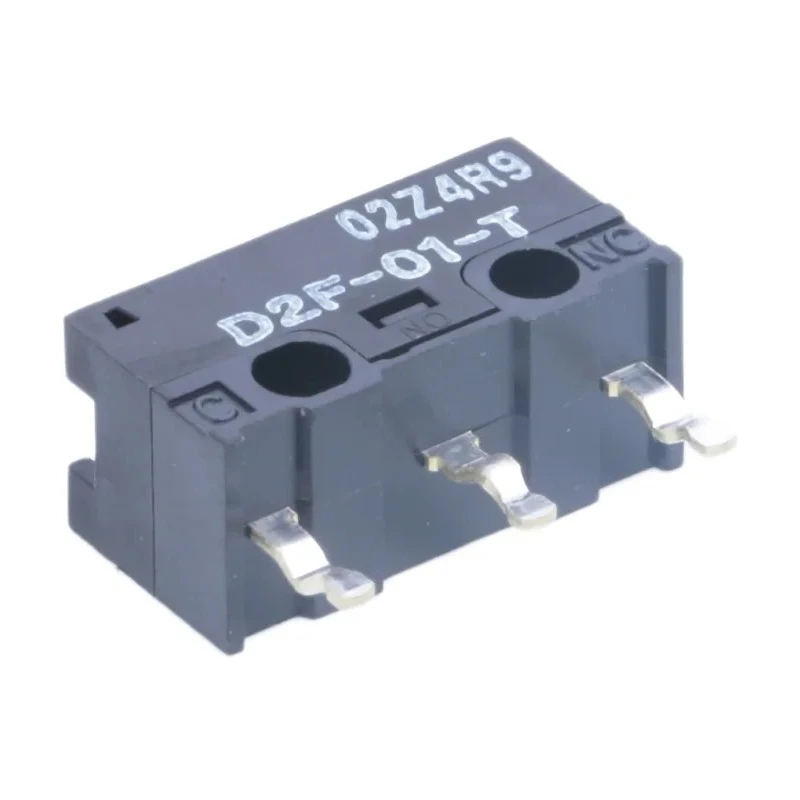

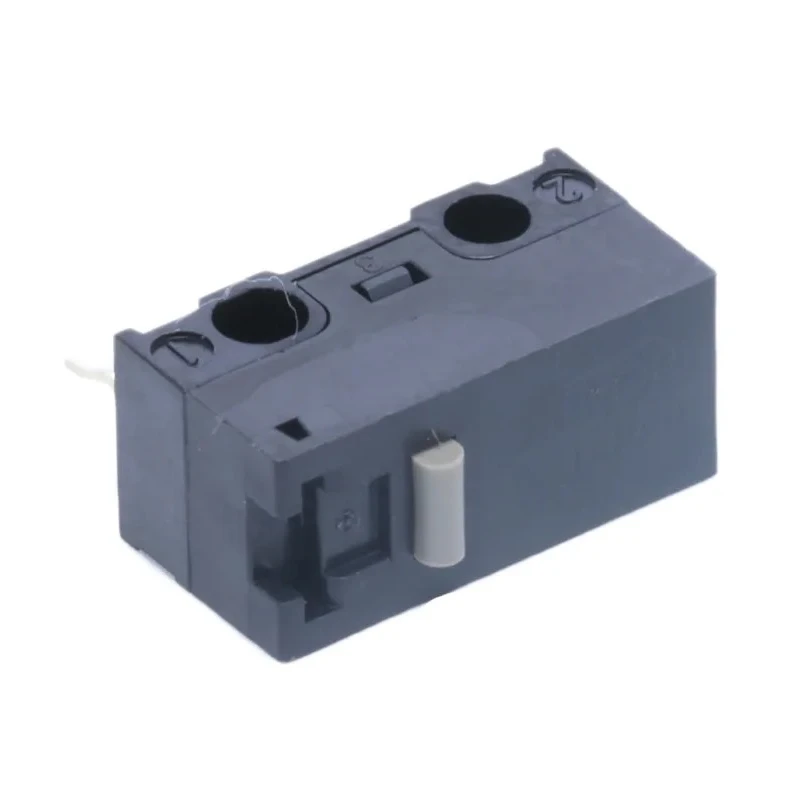

Omron Ultra Subminiature Pin Plunger Micro Switch, PCB Terminal, 100mA, 30 V dc, SPDT, IP40 D2F-01-T

Omron D2F-01-T is an ultra subminiature pin plunger micro switch designed for high-precision snap action switching with PCB terminal connectivity. It is engineered to provide reliable switching solutions in compact electronics and electrical equipment, including home appliances, audio devices, and communications systems. The switch's SPDT contact configuration allows for single-pole double-throw operation, suitable for various circuit implementations.

This micro switch supports a maximum contact current of 100mA and operates with a contact DC voltage of 30 V dc. The actuator type is a pin plunger, enabling sensitive and accurate mechanical action. It features an ingress protection rating of IP40, suitable for environments requiring moderate protection against solid objects.

The operating force is measured at 1.47N, balancing ease of actuation with dependable contact operation. This switch offers a robust mechanical life of up to 1,000,000 operations, designed to meet the demands of industrial and consumer applications within the temperature range of -25°C to 65°C.

Omron's D2F-01-T micro switch is RoHS compliant and holds UL & CSA approvals, reflecting its adherence to environmental and safety standards. The switch supports contact ratings of 3A at 125Vac with silver contacts and 0.1A at 30Vdc with gold contacts, catering to a range of switching power requirements.

This product is made in Japan, ensuring high manufacturing standards. It is ideal for use across industrial, laboratory, electronic manufacturing, and home appliance sectors. Precise snap action with pin plunger actuator.

SPDT contact configuration for versatile circuit integration. Rated for 100mA contact current at 30 V dc. IP40 rated for protection against solid objects. Mechanical life of up to one million operations. RoHS compliant and UL & CSA approved.

Operating force of 1.47 Newtons for easy actuation. Operating temperature range from -25°C to 65°C. Contact rating of 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts. Browse more Micro Switches from Omron in EnvMart’s Electrical, Automation & Cables category for your industrial and electronic system needs.
