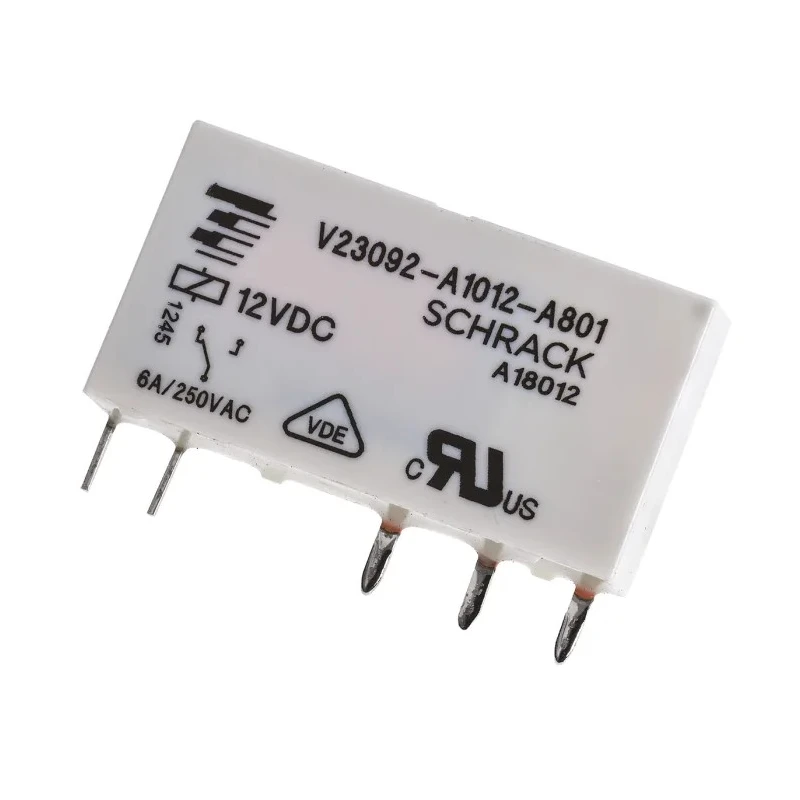

TE Connectivity Power Relay PCB Mount 12V DC Coil 6A Switching Current SPDT V23092A1012A801

TE Connectivity V23092A1012A801 Power Relay is a durable and compact slim relay designed for PCB mounting with a coil voltage rating of 12V DC and a switching current capacity of 6A. It features a SPDT (Single Pole Double Throw) contact configuration suitable for various electronic and electrical control applications.

The relay utilizes a silver nickel alloy contact material, which guarantees reliable conductivity and long service life. Its coil power consumption of 170 mW allows for high coil sensitivity and low power operation, optimizing energy efficiency in control circuits.

This Power Relay is engineered to operate within a wide temperature range from -40°C to +85°C, making it suitable for industrial, commercial, and HVAC system applications that require robust performance in varied environments. It is capable of switching up to 1.5 kVA of power and handling switching AC voltages up to 400 V AC.

The design incorporates clearances of 8 mm creepage and 6 mm clearance to meet safety standards. It provides isolation of 4000 V AC between coil and contacts, ensuring protection and electrical separation in sensitive circuits.

Its compact dimensions with 15 mm height, 28 mm length, and 5 mm thickness facilitate installation into high-density PCBs common in automation, manufacturing, and electrical control panels. The solder terminal type ensures secure and reliable PCB mounting.

The TE Connectivity V23092A1012A801 relay complies with certifications including VDE Cert. No. 40010063, UL E214025, IEC 61810-1, and EN60730-1, providing assured quality and safety for demanding industrial and electrical environments.

Compact slim design 5mm thickness suitable for dense PCB layouts. High coil sensitivity with 170mW coil power consumption. Wide operating temperature range from -40°C to +85°C. Silver nickel alloy contact material for enhanced durability.

High switching capabilities: 6A current, 1.5kVA power, 400V AC voltage. Isolation voltage rating of 4000 V AC between coil and contacts. SPDT contact configuration allowing flexible switching options. Solder terminal type for reliable PCB mounting.

Complies with VDE, UL, IEC, and EN standards for safety and performance. Dimensions optimized for compact industrial and automation applications.

This relay is ideal for industrial automation, electrical control, manufacturing equipment, HVAC systems, and other commercial electronic applications requiring reliable, low-power control switching devices. Explore a wide range of TE Connectivity relays and components at EnvMart for your specialized industrial needs.
