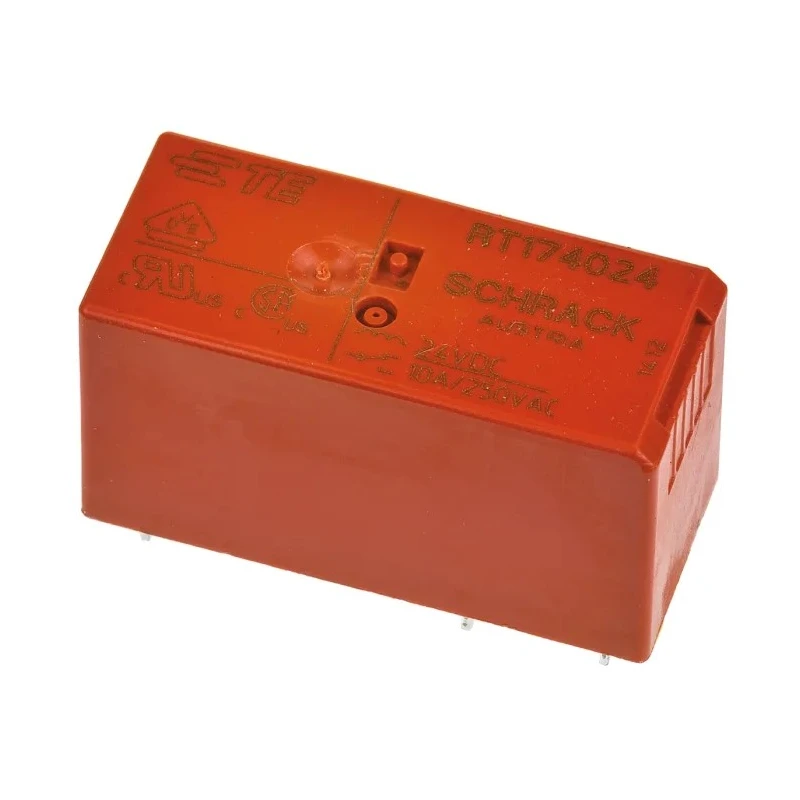

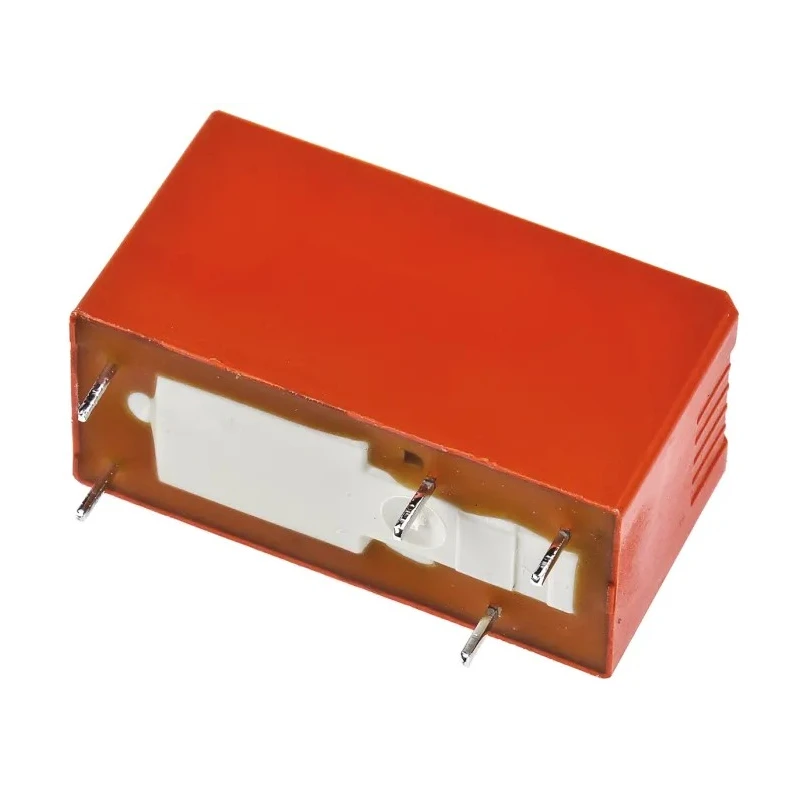

TE Connectivity PCB Power Relay 24V dc Coil 10A Switching Current SPDT RT174024
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT174024 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | RoHS, VDE, IEC 60335-1 |
| Coil Resistance | 2.3kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- The relay features a sensitive coil with 250mW power consumption.
- SPDT (Single Pole Double Throw) contact configuration ensures versatile switching.
- Designed for PCB mount with solder terminal type for easy integration.
- Switching AC voltage rating is up to 400V ac for various industrial uses.
- Operating temperature range extends from -40°C to 85°C supporting diverse environments.
- The coil resistance is 2.3kΩ, contributing to efficient operation.
- Contact material uses durable silver nickel alloy for longevity.
- Complies with RoHS, VDE, and IEC 60335-1 standards ensuring quality and safety.
Product Description
TE Connectivity RT174024 PCB Power Relay is a high-quality power relay featuring a 24V dc coil and 10A switching current. It is designed for printed circuit board mounting with solder terminals, providing excellent integration in electrical and automation applications.
This RT1 series relay is characterized by ultra-high coil sensitivity requiring only 250mW, making it energy efficient. It has a single pole double throw (SPDT) contact configuration suitable for versatile electrical switching tasks. The relay can handle switching voltages up to 400V AC, suitable for domestic and industrial temperature control applications.
The relay’s operating temperature ranges from -40°C to 85°C, supporting operation in harsh environments. Its coil resistance is 2.3kΩ, ensuring stable performance. The contact material is silver nickel alloy, offering reliability and longevity in switching operations.
Compact size dimensions of 29mm length, 12.7mm width, and 15.7mm height allow it to fit efficiently within circuit designs. This device complies with international standards including RoHS, VDE, and IEC 60335-1, guaranteeing safety and regulatory compliance.
Typical applications include temperature control and domestic electrical equipment requiring precise and reliable switching. The relay features a sensitive coil with 250mW power consumption. SPDT contact configuration offers versatile switching options.
Designed for secure PCB mounting with solder terminals. Supports switching voltages up to 400V AC with 10A current. Operating temperature range ensures reliable function from -40°C to 85°C. Silver nickel alloy contacts provide durability and performance.
Compact form factor simplifies integration into electronic circuits. Meets RoHS, VDE, and IEC 60335-1 standards for safety and quality. Explore EnvMart’s Electronics & Electricals category for more Power Relays and electrical components designed for industrial, commercial, and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power relay has a switching current capacity of 10A.
This model operates with a 24V DC coil voltage.
It can handle switching AC voltages up to 400V AC.
The relay features a Single Pole Double Throw (SPDT) contact configuration.
The dimensions are 29mm in length, 12.7mm in width, and 15.7mm in height.
The operating temperature range extends from -40°C to 85°C.
It uses solder terminals for PCB mounting.
The contact material is a silver nickel alloy, which provides reliability and longevity.
The coil resistance is 2.3kΩ.
It complies with RoHS, VDE, and IEC 60335-1 standards.
The coil has a power consumption of 250mW.
Typical applications include temperature control and domestic electrical equipment requiring precise and reliable switching.
