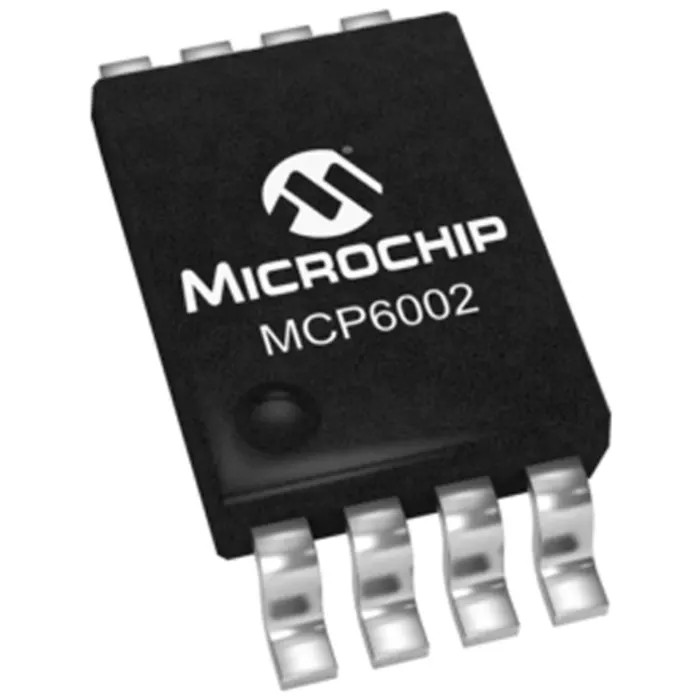

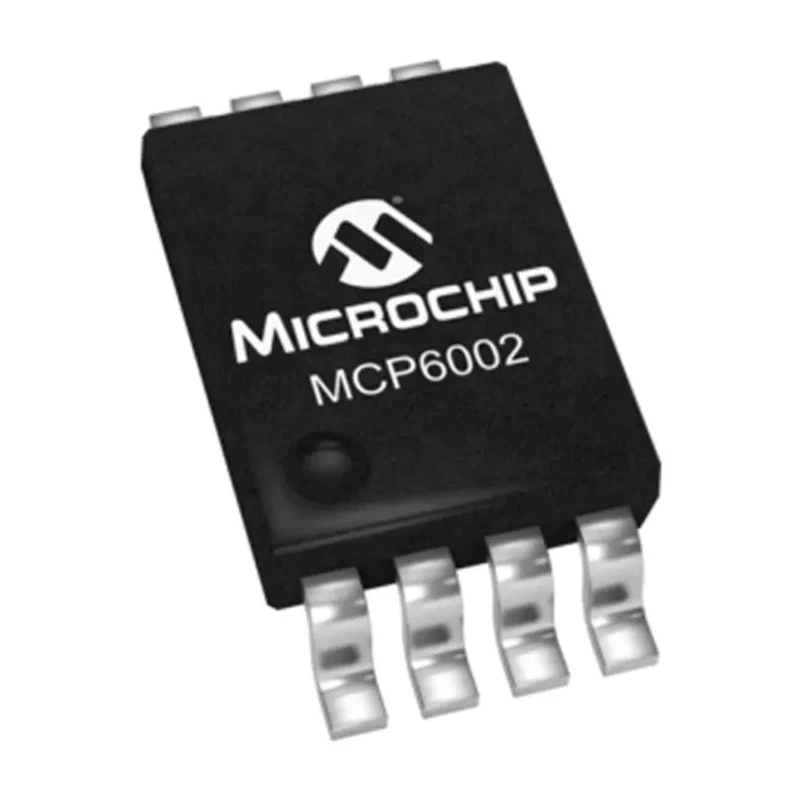

Microchip MCP6002-I/MS Operational Amplifier 1 MHz Gain Bandwidth, 8-Pin MSOP, 3-6 V Supply Voltage

Free Delivery in India | Lowest Global Shipping Charges

Microchip MCP6002-I/MS Operational Amplifier 1 MHz Gain Bandwidth, 8-Pin MSOP, 3-6 V Supply Voltage

Name: Microchip MCP6002-I/MS Operational Amplifier 1 MHz Gain Bandwidth, 8-Pin MSOP, 3-6 V Supply Voltage
Brand: Microchip
SKU: 425214
Price: 0.58 USD
Availability: InStock



Category Operational Amplifier Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	0.85mm
Length	3mm
Model	MCP6002-I/MS
Width	3mm
Mount Type	Surface
Series	MCP6002
Output Current	23mA
Maximum Operating Temperature	85°C
Package Type	MSOP
Minimum Operating Temperature	-40°C
Number Of Channels	2
Standards/Approvals	RoHS
Pin Count	8
Maximum Supply Voltage	6V
Minimum Supply Voltage	3V
GBP - Gain Bandwidth Product	1MHz
Input Bias Current	19 pA
Vos - Input Offset Voltage	4.5 mV
Slew Rate	0.6V/μs
Input Offset Current	1 pA
Microchip, Operational Amplifier, 1 MHz, 8-Pin 6V SOICBrand	Microchip

Key Features

Dual channel operational amplifier with 8 pins for compact surface mounting.
Wide supply voltage range from 3 V to 6 V allows versatile low voltage applications.
Gain bandwidth product of 1 MHz supports precision amplification.
Low input offset voltage of 4.5 mV ensures signal accuracy.
Slew rate of 0.6 V/μs allows for moderate speed signal response.
Extends operation over a temperature range from -40°C to 85°C.
Low input bias current at 19 pA reduces error for sensitive circuits.
Maximum output current capability of 23 mA supports diverse loads.

Product Description

Microchip MCP6002-I/MS is a dual operational amplifier designed for surface mount technology with an 8-pin MSOP package. It operates efficiently at supply voltages ranging from 3 V up to a maximum of 6 V, enabling flexible deployment in a variety of electronic applications requiring low power consumption and high precision.

The device features a gain bandwidth product (GBP) of 1 MHz, suitable for medium-frequency analog signal amplification tasks. Key electrical characteristics include a low input offset voltage of 4.5 mV and input bias current of 19 pA, which make it ideal for sensitive instrumentation circuits.

With its slew rate of 0.6 V/μs, the MCP6002-I/MS can handle moderately fast transient signals and maintain signal integrity. The amplifier supports an output current up to 23 mA and functions reliably within the extended temperature range from -40°C to 85°C, making it compatible with industrial and automotive ambient conditions.

Physically compact, the 3 mm by 3 mm footprint and 0.85 mm height of the MSOP package facilitate high density PCB layouts and space-saving designs in constrained environments. Compliance with RoHS standards underscores its environmentally conscious manufacture.

Dual channel operational amplifier ensures efficient design integration. Wide supply voltage makes it adaptable to various power sources. Precision input characteristics enhance measurement and control accuracy. Moderate slew rate suits general-purpose amplification tasks.

Robust temperature range expands industrial usability. Compact MSOP package supports space-constrained PCB layouts. Meets RoHS compliance for environmental safety.

This operational amplifier is widely used in electronics, instrumentation, automotive, industrial control systems, and consumer devices requiring compact, reliable analog signal amplification. For additional details and design files, users can refer to the Microchip technical documents and datasheets.
