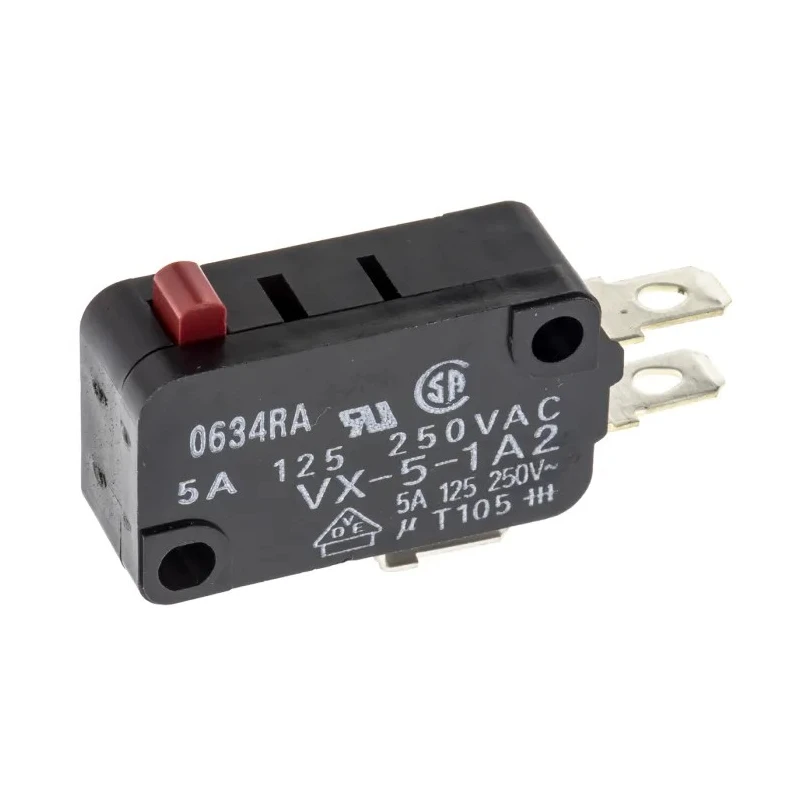

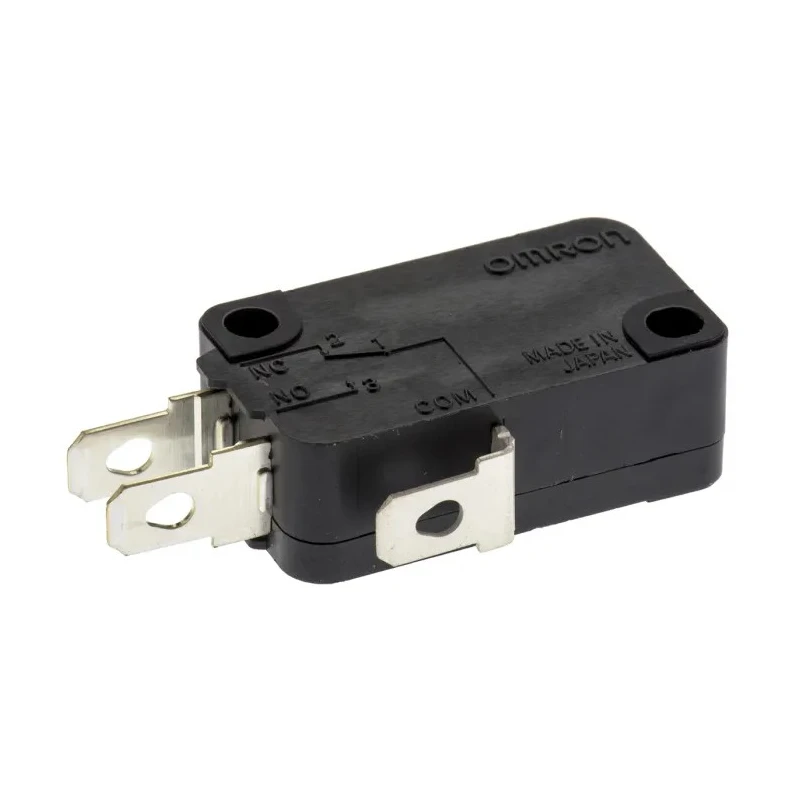

Omron Miniature Pin Plunger Micro Switch, Solder Terminal, 5A Contact, 30V DC, SPDT, IP40 VX-5-1A2
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Model | VX-5-1A2 |
| IP Rating | IP40 |
| Approvals | UL, CSA, VDE, TUV, SEMKO |
| Series | V |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Contact Rating | 5A @ 250Vac resistive |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 5A |
| Operating Force | 0.25N |
| Mechanical Life | 50000000Operations |
| Microswitch Type | Miniature |
| Aratas Pin Plunger Micro Switch, Solder Terminal, 5A, 250 V ac, SPDT, IP40Brand | Omron |
Key Features
- Compact miniature switch with ultra-low operating force.
- Pin plunger actuator with solder terminals for reliable connection.
- Contact rating of 5 amps at 250 VAC resistive load.
- SPDT contact configuration enabling versatile switching functionality.
- IP40 rated housing provides protection against solid objects larger than 1 mm.
- Wide operating temperature range from -25°C to 80°C.
- Robust mechanical life rated at 50 million operations.
- Compliance with RoHS directives ensuring environmental safety.
Product Description
The Omron VX-5-1A2 is a miniature pin plunger micro switch engineered for precise electrical switching applications. Featuring a solder terminal connection type, this switch supports a contact current of 5A with a 30V DC voltage rating. Its robust SPDT contact configuration and IP40 ingress protection make it suitable for varied industrial and electronic applications.
This micro switch operates with an ultra-low force of 0.25 Newtons, housed in a compact V3 style enclosure optimised for minimal actuator friction. Designed to perform reliably over a mechanical lifespan of approximately 50 million operations, it can withstand temperatures ranging from -25°C to 80°C, making it ideal for environments requiring durability and consistent performance.
Omron has integrated RoHS compliance and obtained certifications including UL, CSA, VDE, TUV, and SEMKO, assuring quality and global acceptance. The switch's pin plunger actuator provides tactile and precise switching action for control circuits and automation systems.
Compact miniature switch with ultra-low operating force. Pin plunger actuator with solder terminals for reliable connection. Contact rating of 5 amps at 250 VAC resistive load. SPDT contact configuration enabling versatile switching functionality.
IP40 rated housing provides protection against solid objects larger than 1 mm. Wide operating temperature range from -25°C to 80°C. Robust mechanical life rated at 50 million operations. Compliance with RoHS directives ensuring environmental safety.
Manufactured in Japan with international approvals including UL, CSA, VDE, TUV, and SEMKO.
This micro switch is widely used in industrial automation, control panels, home appliances, and electronic instrumentation, providing reliable on/off switching. Its solder terminal design facilitates secure PCB connections, making it a preferred choice for electronics manufacturing and repair.
Explore the full range of Micro Switches at EnvMart for your electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating of this micro switch is 5A at 250VAC resistive load.
It operates within a temperature range of -25°C to 80°C.
This model features a pin plunger actuator type.
The VX-5-1A2 has an IP40 rating, providing protection against solid objects larger than 1 mm.
The mechanical life of this micro switch is rated at approximately 50 million operations.
The minimum operating force is 0.25 Newtons.
It has solder terminals for reliable connection.
This model is certified by UL, CSA, VDE, TUV, and SEMKO, ensuring quality and global acceptance.
The contact DC voltage rating is 30V DC.
It is manufactured in Japan.
It is widely used in industrial automation, control panels, home appliances, and electronic instrumentation.
The contact configuration is SPDT (Single Pole Double Throw).
