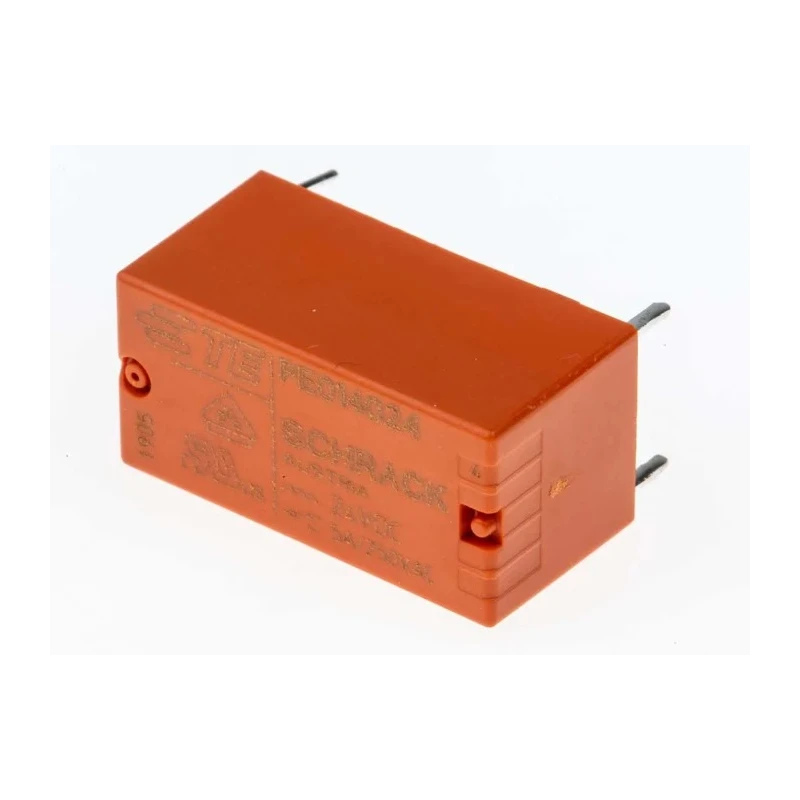

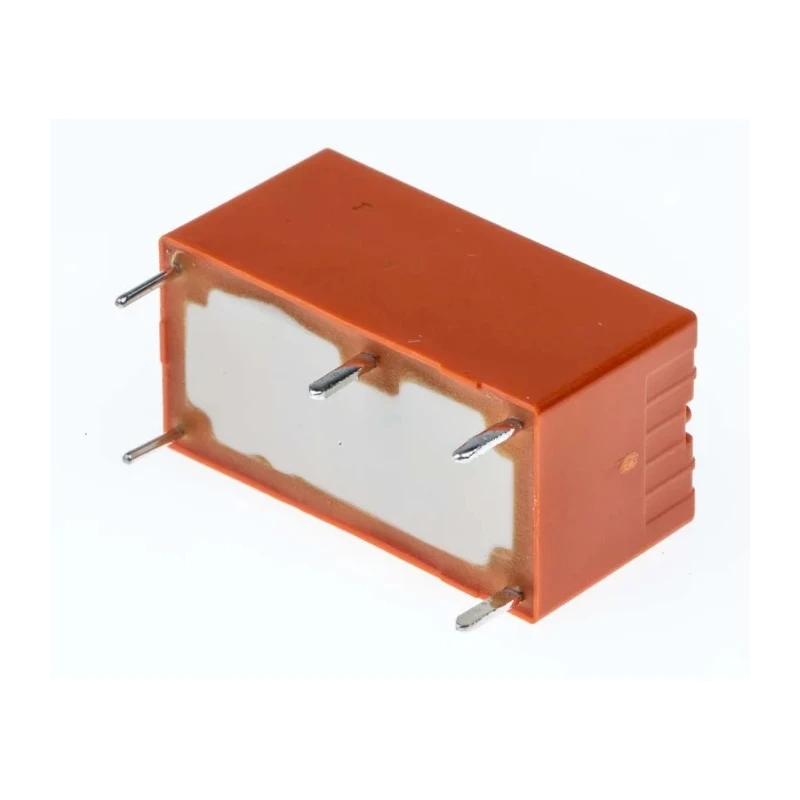

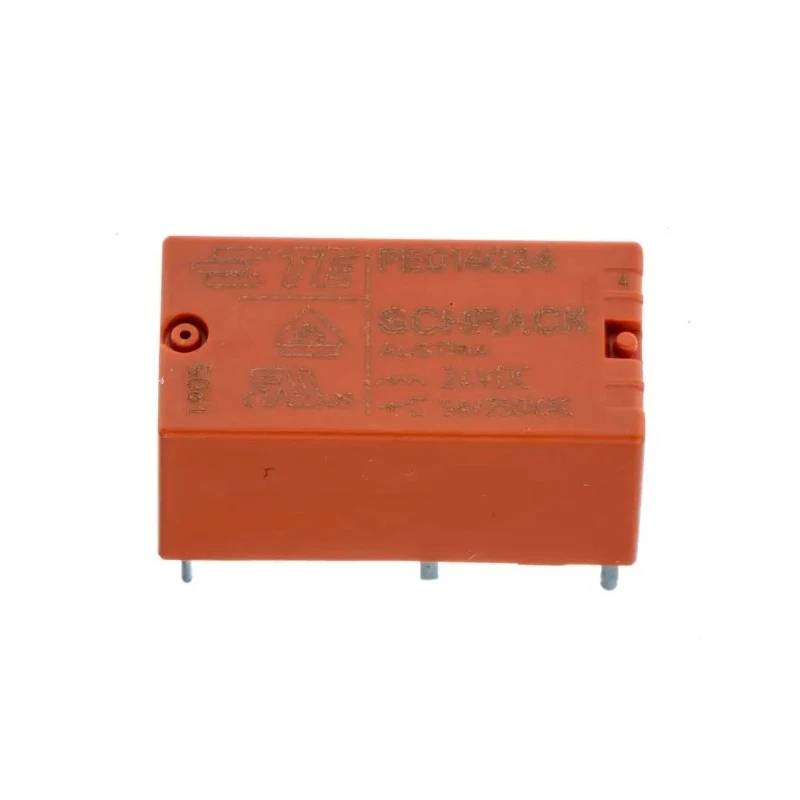

TE Connectivity PCB Power Relay 24V DC Coil 5A Switching Current SPDT PE014024
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 10mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 20mm |
| Model | PE014024 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | PE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Standards/Approvals | VDE, cULus |
| Coil Resistance | 2.7kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 211mW |
| High Coil sensitivity | 200mW |
Key Features
- Operates with a coil voltage of 24V DC and coil power of 211mW for efficient performance.
- Features a single pole double throw (SPDT) contact configuration suitable for switching applications.

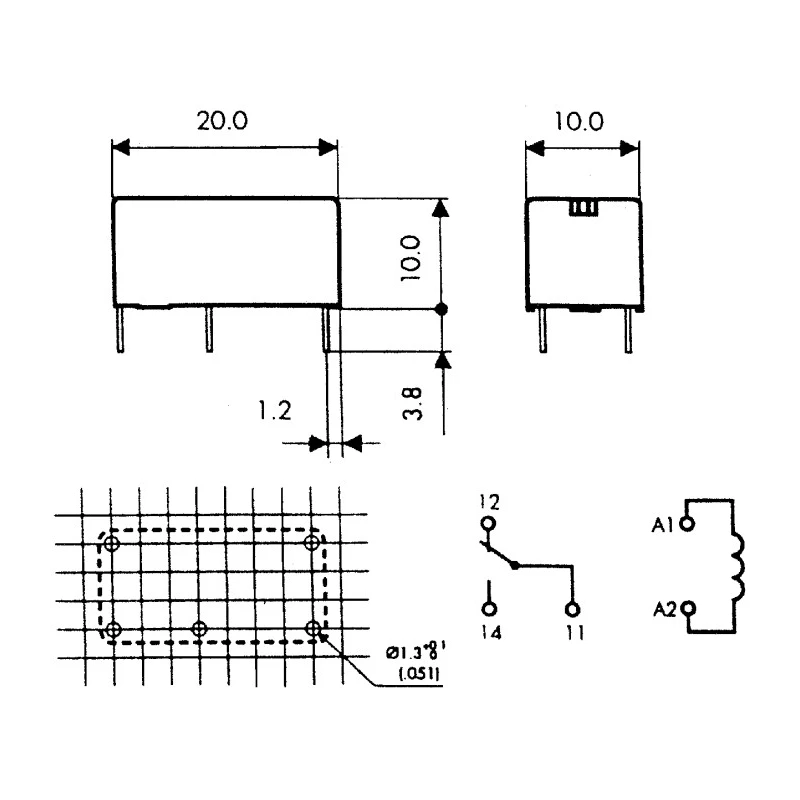

- Compact dimensions of 20mm length, 10mm width, and 10mm height facilitate easy PCB mounting.
- Constructed with silver nickel alloy contacts ensuring reliable conductivity and long life.
- Supports switching AC voltage up to 400V AC and switching power of 1.3kVA.
- Suitable for operating temperature range from -40°C to 85°C for robust industrial use.
- Terminal type is solder with high coil sensitivity of 200mW, optimizing low power control circuits.
- Complies with standards and approvals including VDE, cULus for quality assurance.
Product Description
TE Connectivity PE014024 PCB Power Relay is a high-quality industrial relay designed for versatile applications requiring precise control and reliable switching. Featuring a 24V DC coil and a 5A switching current capability, this SPDT relay ensures efficient operation in electronic circuits and control systems.
The compact relay has dimensions of 20mm length, 10mm width, and 10mm height, making it ideal for PCB mounting and space-constrained designs. Its silver nickel alloy contacts provide excellent conductivity and long service life, while the solder terminal type facilitates easy installation.
This power relay supports a switching AC voltage of 400V AC and a switching power rating of 1.3kVA, making it suitable for a broad range of industrial electronic equipment and household appliances. The coil power consumption is low at 211mW, with a high coil sensitivity of 200mW, allowing for low-power control inputs.
Operating reliably within a temperature range of -40°C to 85°C, the relay is compliant with key standards such as VDE and cULus, ensuring safety and performance under demanding conditions. Its robust design and certification make it suitable for applications including automation, control equipment, and general industrial electronic uses.
Operates with a coil voltage of 24V DC and coil power of 211mW for efficient performance. Single pole double throw (SPDT) contact configuration for flexible switching. Compact dimensions enable easy PCB mounting. Silver nickel alloy contacts for durability and conductivity.
Supports switching AC voltage up to 400V AC and power of 1.3kVA. Wide operating temperature range from -40°C to 85°C. Solder terminals facilitate reliable mounting. High coil sensitivity optimizes low power control. Complies with VDE, cULus standards for industrial use.
This PCB Power Relay from TE Connectivity is a reliable, efficient choice for engineers and professionals in industrial, automation, household appliances, and control equipment domains. It enhances production efficiency and is delivered packaged ready for insertion into machinery.
Browse our wide range of Power Relays and related electronic components at EnvMart for advanced industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It has a maximum switching current capability of 5A.
The relay has compact dimensions of 20mm in length, 10mm in width, and 10mm in height.
This model supports a switching AC voltage of up to 400V AC.
It features a single pole double throw (SPDT) contact configuration.
The contacts are constructed from silver nickel alloy, ensuring reliable conductivity.
It operates reliably within a temperature range of -40°C to 85°C.
The coil power consumption is 211mW.
It has solder terminals for reliable mounting.
It complies with VDE and cULus standards for quality assurance.
The coil resistance is 2.7kΩ.
It has a high coil sensitivity of 200mW, optimizing low power control circuits.
