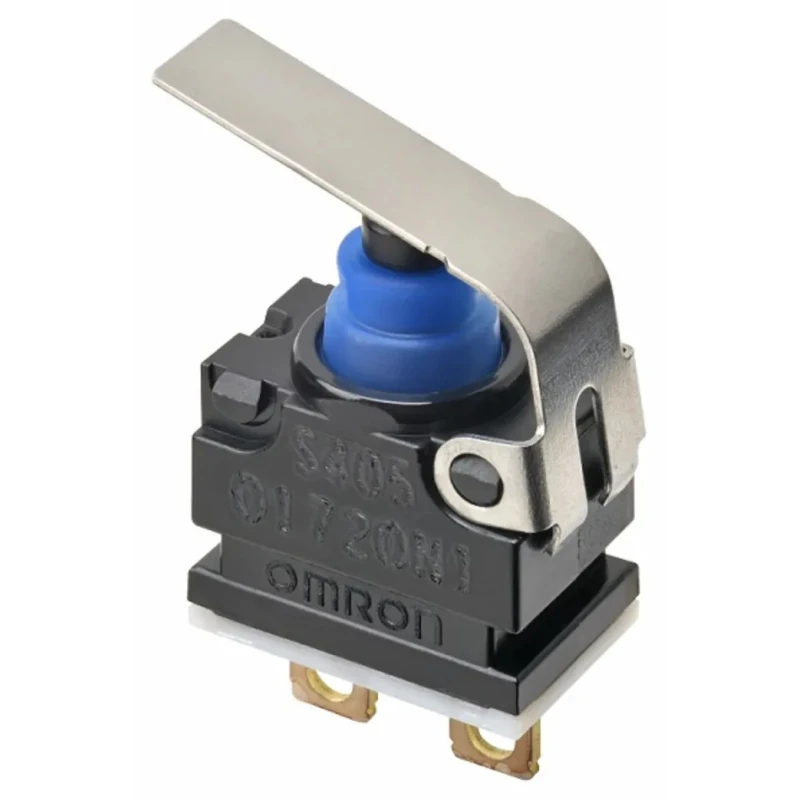

Omron Hinge Lever Subminiature Micro Switch SPST-NO 13.5 V dc 1mA IP67 D2GW-SC03M

Name: Omron Hinge Lever Subminiature Micro Switch SPST-NO 13.5 V dc 1mA IP67 D2GW-SC03M
Brand: Omron
SKU: 424392
Price: 8.5 USD
Availability: InStock



Category Micro Switch Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Model	D2GW-SC03M
IP Rating	IP67
Series	D2GW
Maximum Operating Temperature	85°C
Contact Configuration	SPST-NO
Actuator Type	Hinge Lever
Minimum Operating Temperature	-40°C
Terminal type	Solder
Standards/Approvals	RoHS
Contact DC Voltage	13.5V dc
Switch Contact Current	1mA

Key Features

The hinge lever actuator provides precise and reliable switching operations.
Solder terminal type ensures secure and stable electrical connections.
Operates reliably within temperature range from -40°C to 85°C.
Designed with high contact reliability supporting micro-load applications.
Compact sealed design compliant with IP67 protection standards for dust and water resistance.
Ideal for use in automation systems, electrical devices, and industrial equipment.
Conforms to RoHS standards ensuring eco-friendly manufacturing.
Built with a bilaterally symmetrical shape enabling versatile actuator adaptation.

Product Description

Omron D2GW-SC03M is a high-reliability hinge lever subminiature micro switch with a SPST-NO (Single Pole Single Throw - Normally Open) contact configuration, suitable for precise control applications in electrical and automation systems.

This micro switch features a solder terminal for convenient PCB mounting and supports a low DC contact voltage of 13.5 V and a contact current of 1mA, making it ideal for low power signal switching.

The switch body is sealed to an IP67 rating, providing excellent protection against dust ingress and water exposure, suitable for challenging industrial environments.

Operating temperature ranges from -40°C to 85°C, ensuring robust performance under wide thermal conditions. The hinge lever actuator offers smooth and quiet mechanical action enabled by a sliding construction that reduces noise and wear.

The switch shape is bilaterally symmetrical, easing design integration and enabling compatibility with various actuator forms and materials. The product complies with RoHS directives, reflecting environmentally responsible design and manufacture.

The hinge lever actuator provides precise and reliable switching operations. Solder terminal type ensures secure and stable electrical connections. Operates reliably within temperature range from -40°C to 85°C. Designed with high contact reliability supporting micro-load applications.

Compact sealed design compliant with IP67 protection standards for dust and water resistance. Ideal for use in automation systems, electrical devices, and industrial equipment. Conforms to RoHS standards ensuring eco-friendly manufacturing.

Built with a bilaterally symmetrical shape enabling versatile actuator adaptation. Sliding mechanism reduces operational noise for quiet performance.

This micro switch belongs to applications including industrial automation, electrical control panels, instrumentation, and other precision equipment requiring reliable and compact switching components.

Explore more Micro Switches and related components on EnvMart for all your industrial, commercial, and laboratory needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The micro switch features a SPST-NO (Single Pole Single Throw - Normally Open) contact configuration, suitable for precise control applications.

It operates reliably within a temperature range from -40°C to 85°C, ensuring robust performance under various thermal conditions.

This micro switch has an IP67 rating, providing excellent protection against dust ingress and water exposure, making it suitable for challenging environments.

The switch supports a maximum contact current of 1mA, making it ideal for low power signal switching applications.

It uses a hinge lever actuator, which provides smooth and quiet mechanical action, reducing operational noise and wear.

The contact DC voltage rating for this micro switch is 13.5V dc, suitable for low power applications.

It features a solder terminal type, which ensures secure and stable electrical connections for PCB mounting.

This model conforms to RoHS standards, reflecting environmentally responsible design and manufacture.

The country of origin for this micro switch is China.

It is ideal for use in industrial automation, electrical control panels, instrumentation, and other precision equipment requiring reliable switching components.

The switch is built with a bilaterally symmetrical shape, easing design integration and enabling compatibility with various actuator forms and materials.

The switch is designed with high contact reliability, operates within a wide temperature range, and has a sealed housing compliant with IP67 standards, enhancing its reliability in various applications.
