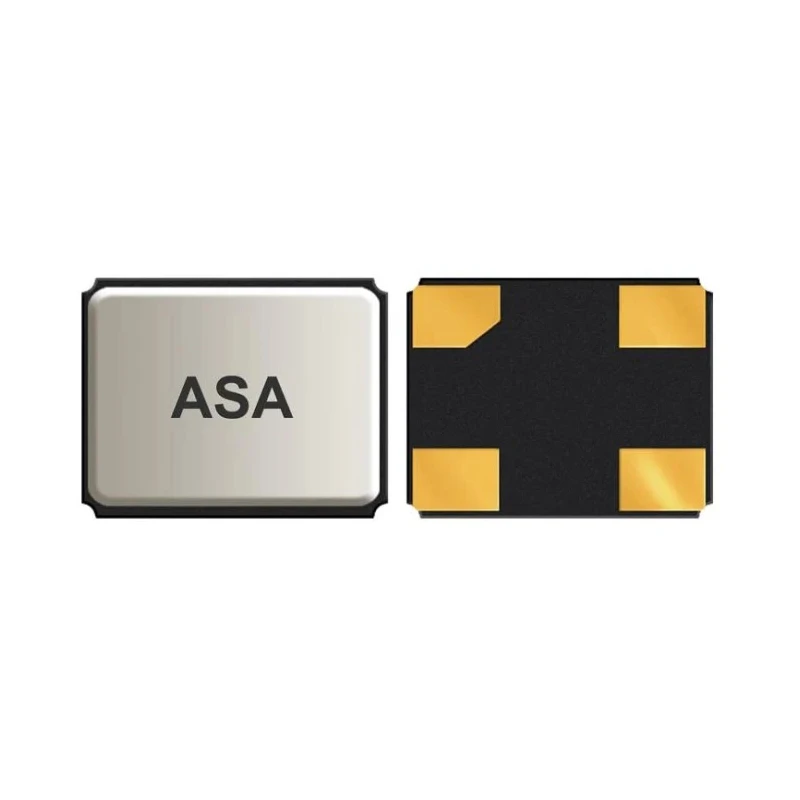

Abracon 25MHz Clock Oscillator Crystal Oscillator HCMOS 4-Pin Surface Mount ASA-25.000MHZ-L-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 25MHz Clock Oscillator Crystal Oscillator HCMOS 4-Pin Surface Mount ASA-25.000MHZ-L-T

Name: Abracon 25MHz Clock Oscillator Crystal Oscillator HCMOS 4-Pin Surface Mount ASA-25.000MHZ-L-T
Brand: Abracon
SKU: 424235
Price: 2.56 USD
Availability: InStock



Category Crystal Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.7mm
Length	2mm
Model	ASA-25.000MHZ-L-T
Packaging	Tape & Reel
Width	1.6mm
Mount Type	Surface
Series	ASA
Maximum Operating Temperature	85°C
Output Frequency	25MHz
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Supply Voltage	3.66V
Minimum Supply Voltage	2.97V
Oscillator Type	Clock Oscillator
Output Level	HCMOS

Key Features

Ultra miniature surface mount package measuring 2.0 x 1.6 x 0.7mm.
Oscillator type is clock oscillator with a 25MHz output frequency.
Provides HCMOS output level compatible with modern digital circuits.
Operates within a supply voltage range of 2.97V to 3.66V suitable for low voltage systems.
Designed for surface mounting with 4 pins designed for SMT assembly.
Temperature range from -40°C to 85°C enables operation in varied environments.
RoHS compliant, ensuring environmental and safety standards.
Seam sealed package ensures high reliability in demanding industrial uses.

Product Description

The Abracon ASA-25.000MHZ-L-T is a precision 25MHz clock oscillator in a compact 4-pin surface mount package measuring 2.0 x 1.6 x 0.7mm. It features HCMOS output, making it ideal for integration in modern digital circuitry and electronic equipment.

This crystal oscillator offers a stable output frequency of 25MHz, operating between a minimum supply voltage of 2.97V and maximum of 3.66V, suitable for low voltage industrial and commercial electronics.

Designed for high-density surface mount technology applications, it comes in a tape and reel packaging format, supporting automated manufacturing and assembly line efficiency.

The ASA series package is seam sealed to assure long-term reliability and robustness, suitable for operating temperature ranges between -40°C and 85°C, making it suitable for demanding environments in industrial, laboratory, and commercial electronics domains.

Typical applications include clock generation for CCD clocks in VTR cameras, computer systems, peripherals, and battery-operated portable devices requiring accurate timing signals. This oscillator supports RoHS directives providing an environmentally friendly option.

Ultra miniature package measuring 2.0 x 1.6 x 0.7mm for compact device design. Stable 25MHz clock frequency output with HCMOS signal level. Wide operating temperature range ensures durability in harsh conditions. Tape and reel packaging facilitates smooth automated assembly.

Seam sealed ensures longevity and reliability in industrial applications. Low power supply range from 2.97V to 3.66V enhances energy efficiency. Ideal for industrial, laboratory, and automotive electronics requiring precise timing.

RoHS compliant for environmental safety and regulatory compliance.

Explore the Abracon series for reliable clock oscillator components designed to meet industry standards and enhance electronic design performance. Find our selection of Crystal Oscillators and related components in the Electronics Components category at EnvMart.
