Abracon 25MHz Clock Oscillator Crystal Oscillator HCMOS 4-Pin Surface Mount ASA-25.000MHZ-L-T

Free Delivery in India | Lowest Global Shipping Charges

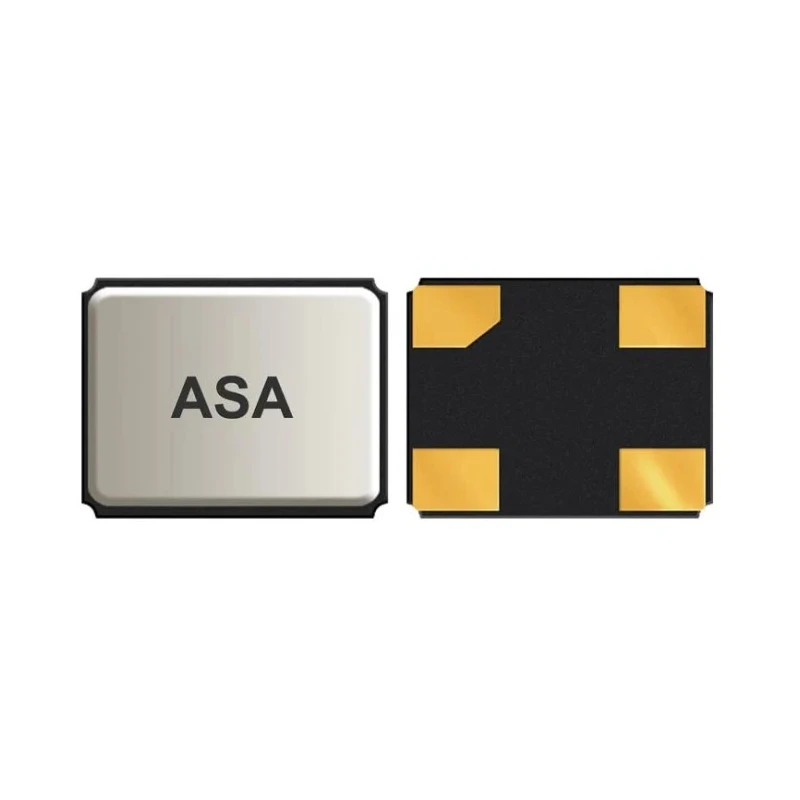

Abracon 25MHz Clock Oscillator Crystal Oscillator HCMOS 4-Pin Surface Mount ASA-25.000MHZ-L-T

Name: Abracon 25MHz Clock Oscillator Crystal Oscillator HCMOS 4-Pin Surface Mount ASA-25.000MHZ-L-T
Brand: Abracon
SKU: 424233
Price: 2.47 USD
Availability: InStock



Category Crystal Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.7mm
Length	2mm
Model	ASA-25.000MHZ-L-T
Packaging	Tape & Reel
Width	1.6mm
Mount Type	Surface
Series	ASA
Maximum Operating Temperature	85°C
Output Frequency	25MHz
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Supply Voltage	3.66V
Minimum Supply Voltage	2.97V
Oscillator Type	Clock Oscillator
Output Level	HCMOS

Key Features

Operates with a supply voltage range from 2.97V to 3.66V.
Output frequency fixed at 25MHz with HCMOS output level.
Designed for surface mount with a compact 2.0 x 1.6 x 0.7mm package size.
Ranges in operating temperature from -40°C to +85°C for industrial stability.
Tri-state function for versatile output control.
Seam sealed package ensures high reliability and durability.
Suitable for high-density SMT assembly and RoHS compliant reflow processes.
Ideal for use in CCD clocks, VTR cameras, computers, and portable electronics.

Product Description

Abracon ASA-25.000MHZ-L-T is a 25MHz clock oscillator crystal oscillator featuring a 4-pin surface mount package and HCMOS output. It operates within a supply voltage range of 2.97V to 3.66V and is designed for high precision timing applications in industrial, electronic component manufacturing, laboratory instrumentation, and telecommunications.

This crystal oscillator has an ultra miniature footprint measuring just 2.0 mm in length, 1.6 mm in width, and 0.7 mm in height, making it ideal for high-density SMT applications. It includes a tri-state function and operates reliably in temperatures ranging from -40°C to 85°C, making it suitable for robust industrial environments.

The device is seam sealed to enhance reliability and stability over its lifecycle. It complies with RoHS environmental standards, underscoring its suitability for lead-free manufacturing processes. Its HCMOS output level guarantees compatibility with modern digital circuits.

Typical applications include CCD clock signals for VTR cameras, computing peripherals, and various portable electronic devices. The compact form factor allows designers to optimize PCB real estate without compromising performance.

Operates within 2.97V to 3.66V supply voltage range. Fixed output frequency at 25MHz with HCMOS output. Tri-state function for output enable/disable control. Ultra miniature 2.0 x 1.6 x 0.7 mm package dimensions. Wide operating temperature range of -40°C to +85°C.

Seam sealed for high reliability. RoHS compliant for lead-free assembly. Surface mount technology compatible. Ideal for industrial, laboratory, and electronic manufacturing uses.

This product represents a reliable choice for engineers requiring high-performance crystal oscillators in a small footprint package. Browse EnvMart's selection of Abracon Crystal Oscillators and related components for comprehensive solutions to your timing and oscillator needs.
