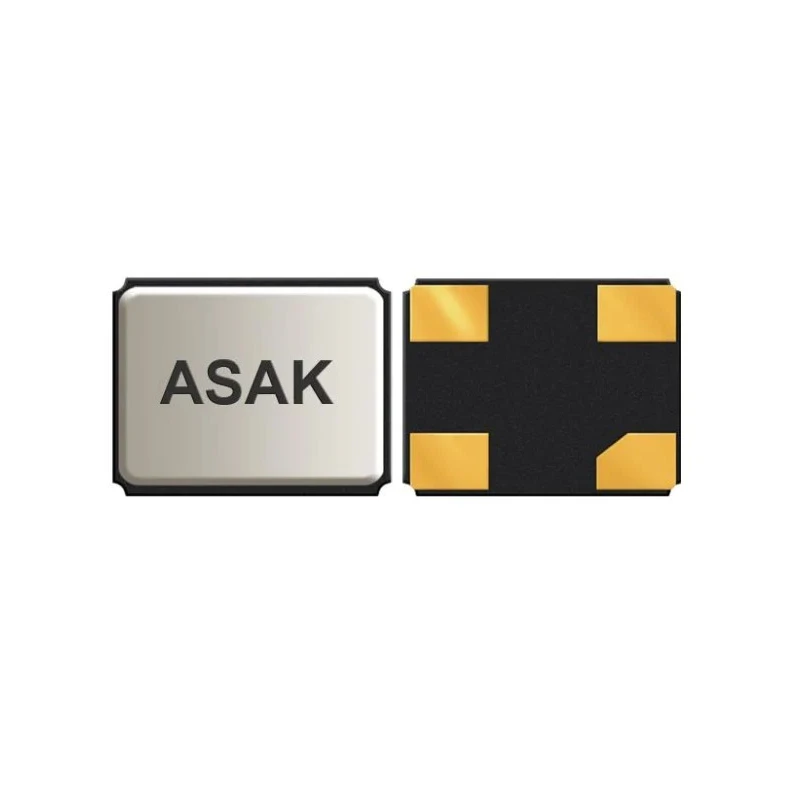

Abracon 32.768kHz Crystal Oscillator Surface Mount LVCMOS ±25ppm 4-Pin ASAK-32.768KHZ-LRS-T

Name: Abracon 32.768kHz Crystal Oscillator Surface Mount LVCMOS ±25ppm 4-Pin ASAK-32.768KHZ-LRS-T
Brand: Abracon
SKU: 424237
Price: 1.8 USD
Availability: InStock



Category Crystal Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.7mm
Length	2mm
Model	ASAK-32.768KHZ-LRS-T
Packaging	Tape & Reel
Width	1.6mm
Mount Type	Surface
Series	ASAK
Maximum Operating Temperature	85°C
Output Frequency	32.768kHz
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Supply Voltage	3.63V
Minimum Supply Voltage	2.97V
Oscillator Type	Crystal Oscillator
Output Level	LVCMOS

Key Features

Compact 2.0 x 1.6 x 0.7mm surface mount ceramic package.
Provides LVCMOS level output suitable for digital applications.
Operates on supply voltage from 2.97V to 3.63V with low current consumption up to 240 μA.
Designed for reliable performance over temperature range -40°C to 85°C.
Seam sealed package ensures high reliability for industrial and consumer electronics.
Package includes 4 pins compatible with surface mount assembly.
RoHS and RoHS II compliant for environmental safety.
Ideal for applications in laptops, digital cameras, wireless LAN, LCDs, PDAs, and embedded systems.

Product Description

Abracon ASAK-32.768KHZ-LRS-T is a high-precision 32.768kHz crystal oscillator housed in a compact 2.0 x 1.6 x 0.7mm ceramic surface mount device. It delivers a stable LVCMOS output signal with ±25ppm frequency stability, making it suitable for timing applications in electronics requiring accurate clocking.

The oscillator operates reliably across a wide supply voltage range from 2.97V to 3.63V, consuming a maximum current of 240 μA, which contributes to energy-efficient designs. Its operating temperature spans from -40°C up to 85°C, allowing use in demanding industrial and consumer environments.

The seam sealed package protects the device from environmental factors, enhancing long-term reliability. The 4-pin surface mount configuration facilitates easy integration onto printed circuit boards in automated assembly processes.

This oscillator is RoHS and RoHS II compliant, meeting international environmental standards for hazardous substances.

Common applications encompass laptop computers, digital cameras, wireless LAN modules, LCD displays, personal digital assistants (PDAs), and various embedded systems requiring precise timing control.

Compact ceramic SMD package with dimensions 2.0 x 1.6 x 0.7 mm. Stable ±25ppm frequency tolerance for accurate timing. Low power consumption operating at 240 μA max. Wide operating temperature from -40°C to 85°C for diverse environments.

4-pin surface mount package simplifies PCB integration. RoHS and RoHS II compliant, environmentally friendly. Suitable for industrial, laboratory, and consumer electronic applications. Seam sealed package for enhanced reliability.
