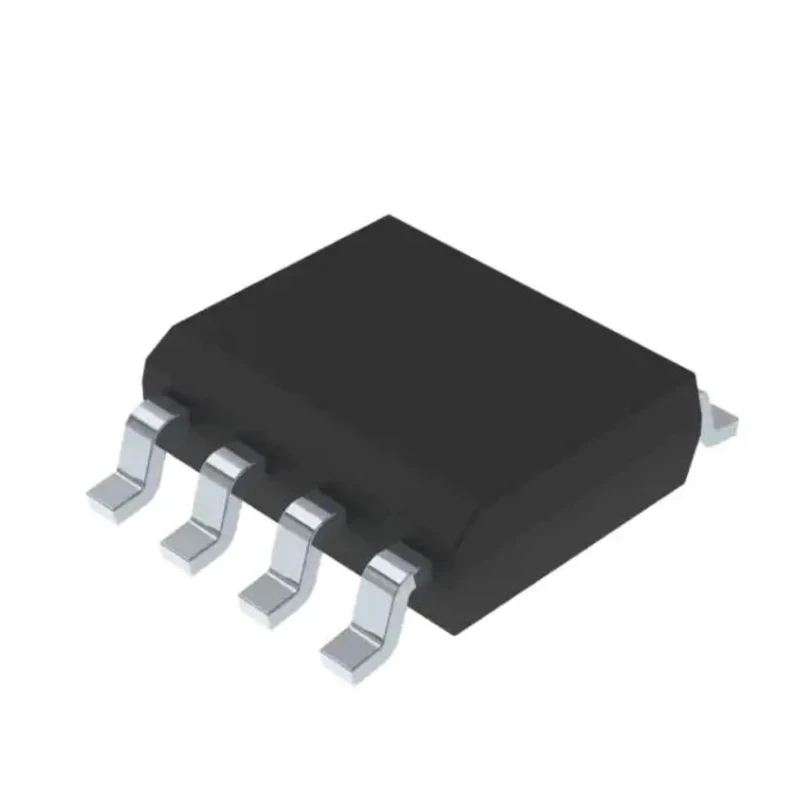

STMicroelectronics 2 kB Serial EEPROM 450 ns 8-Pin SO-8 Serial-I2C M24C02-DRMN3TP/K

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 2 kB Serial EEPROM 450 ns 8-Pin SO-8 Serial-I2C M24C02-DRMN3TP/K

Name: STMicroelectronics 2 kB Serial EEPROM 450 ns 8-Pin SO-8 Serial-I2C M24C02-DRMN3TP/K
Brand: STMicroelectronics
SKU: 424072
Price: 0.51 USD
Availability: InStock



Category EEPROM Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	550μm
Length	5mm
Model	M24C02-DRMN3TP/K
Width	4mm
Mount Type	Surface
Series	M24C0
Maximum Operating Temperature	125°C
Package Type	SO-8
Minimum Operating Temperature	-40°C
Memory size	2kB
Interface Type	Serial-I2C
Pin Count	8
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	1.8V
Maximum Clock Frequency	400kHz
Organisation	256 K x 8 Bit
Number of Bits per Word	8
Maximum Random Access Time	450ns
Number of Words	256K

Key Features

Offers 2 kB memory size with 256K organization for efficient data storage.
Supports Serial I2C interface with maximum clock frequency of 400 kHz.
Compatible with operating voltage range from 1.8 V to 5.5 V.
Automotive grade device compliant with AEC-Q100 standard and extended temperature range -40°C to 125°C.
Features 4 million write cycles at 25 °C and 1.2 million at 85 °C for high reliability.
Compact SO-8 surface mount package with 8 pins and dimensions 5 mm × 4 mm × 0.55 mm.
Data retention guaranteed for 100 years ensuring long-term data integrity.

Product Description

STMicroelectronics M24C02-DRMN3TP/K is a 2 Kbit Serial EEPROM with 8-pin SO-8 surface mount package designed for robust data storage in automotive and industrial electronics. Operating across a wide temperature range of -40°C to 125°C, it meets the stringent requirements of automotive applications as per AEC-Q100 Grade 1 certification.

The EEPROM supports a Serial I2C interface with clock frequencies up to 400 kHz, compatible with standard I2C bus modes of 1 MHz, 400 kHz, and 100 kHz. It operates within a supply voltage range of 1.8 V to 5.5 V, offering flexibility in various power environments.

With an organization of 256 K x 8 bits, the device provides 2 kB of memory capacity, suitable for embedded system data retention needs. The device features Schmitt trigger inputs for enhanced noise immunity and achieves byte write operations within 4 ms.

Reliability is further ensured by a minimum of 4 million write cycles at 25°C and 1.2 million at 85°C, along with a data retention period of 100 years. Its compact 8-pin SO-8 package, measuring 5 mm in length, 4 mm in width, and 550 μm in height, enables easy PCB integration for surface mount assembly.

This EEPROM is ideal for applications in automotive, industrial control systems, instrumentation, and other embedded solutions demanding high endurance and data integrity under harsh environmental conditions.

Offers 2 kB memory size with 256K organization for efficient data storage. Supports Serial I2C interface with maximum clock frequency of 400 kHz. Compatible with operating voltage range from 1.8 V to 5.5 V. Automotive grade device compliant with AEC-Q100 standard and extended temperature range -40°C to 125°C.

Features 4 million write cycles at 25 °C and 1.2 million at 85 °C for high reliability. Compact SO-8 surface mount package with 8 pins and dimensions 5 mm × 4 mm × 0.55 mm. Data retention guaranteed for 100 years ensuring long-term data integrity.
