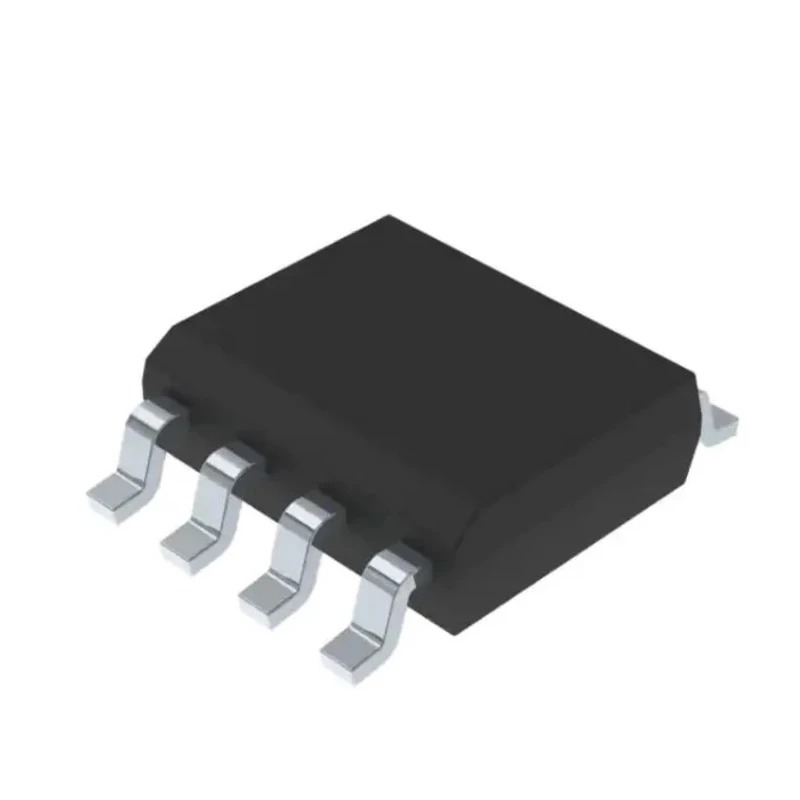

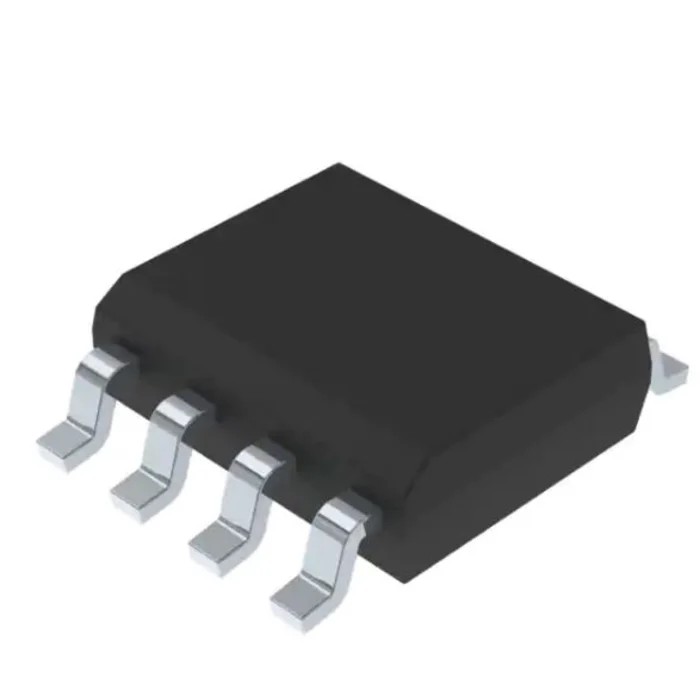

STMicroelectronics 2 kB Serial EEPROM 450 ns 8-Pin SO-8 Serial-I2C M24C02-DRMN3TP/K

STMicroelectronics M24C02-DRMN3TP/K is a 2 kB serial EEPROM memory chip featuring a 450 ns maximum random access time and an 8-Pin SO-8 surface mount package. Designed to operate over a wide supply voltage range from 1.8 V to 5.5 V, this device supports the serial-I2C communication interface at clock frequencies up to 400 kHz, compatible with 1 MHz, 400 kHz, and 100 kHz I2C bus modes.

The M24C02-DRMN3TP/K is built with automotive-grade reliability complying with the AEC-Q100 standard grade 1, making it suitable for demanding automotive and industrial environments requiring high endurance and data integrity. Its operating temperature range extends from -40°C to 125°C, ensuring robust operation under extreme conditions.

The memory architecture is organized as 256 K x 8 bits, offering 2 kB of total storage with 8 bits per word. Data retention is guaranteed for 100 years, with byte write cycles completed within 4 ms, and a high endurance of 4 million write cycles at 25°C.

Other key features include Schmitt-trigger inputs for enhanced noise immunity, further ensuring signal reliability in harsh electrical environments. The compact SO-8 package measures 5 mm in length, 4 mm in width, and 550 μm in height, designed for surface mounting on PCBs.

2 kB serial EEPROM with 450 ns access time and 8-pin SO-8 package. Compatible with multiple I2C bus clock frequencies including 1 MHz and 400 kHz. Wide voltage operating range from 1.8 V to 5.5 V with robust automotive grade compliance.

Extended temperature operational range of -40°C to 125°C. Long data retention of 100 years and high write endurance. Compact SO-8 surface mount package dimensions (5 mm x 4 mm x 550 μm). 256 K x 8 bits memory organisation with byte write in 4 ms.

Schmitt trigger inputs for improved noise filtering. AEC-Q100 automotive standard grade 1 compliance for reliability.

This serial EEPROM is ideal for automotive, industrial, and consumer electronics applications requiring reliable high-temperature data storage and fast read/write cycles. It is commonly used in embedded systems, automotive control units, and industrial automation where data integrity under harsh conditions is critical.
