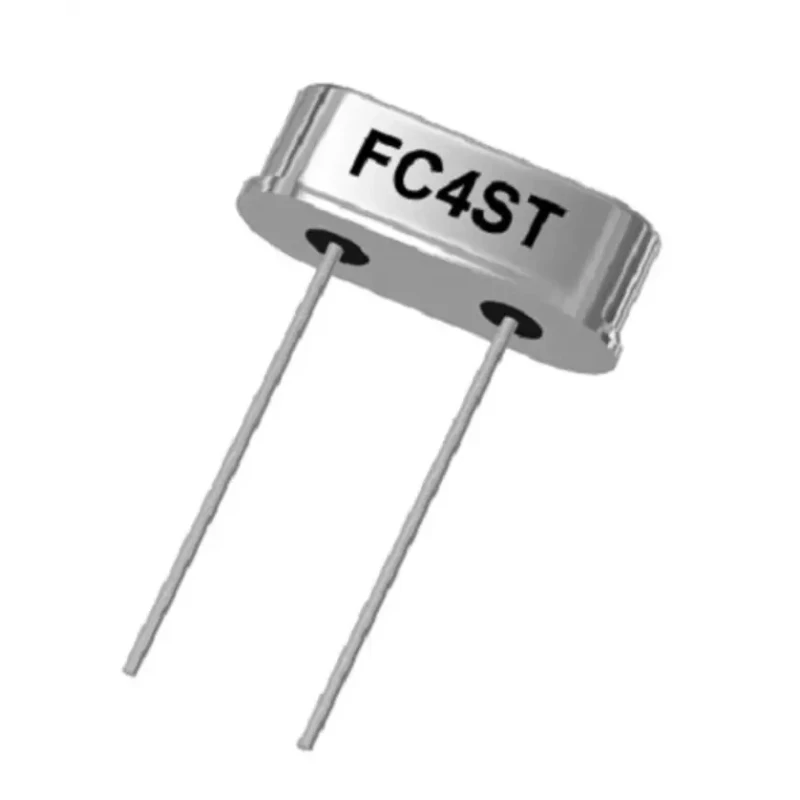

Abracon 4 MHz Crystal Oscillator ±30 ppm Frequency Tolerance Through Hole HC-49 2-Pin 3.6 mm x 11.35 mm x 4.64 FC4STCBAF4.0

Free Delivery in India | Lowest Global Shipping Charges

Abracon 4 MHz Crystal Oscillator ±30 ppm Frequency Tolerance Through Hole HC-49 2-Pin 3.6 mm x 11.35 mm x 4.64 FC4STCBAF4.0

Name: Abracon 4 MHz Crystal Oscillator ±30 ppm Frequency Tolerance Through Hole HC-49 2-Pin 3.6 mm x 11.35 mm x 4.64 FC4STCBAF4.0
Brand: Abracon
SKU: 422960
Price: 0.58 USD
Availability: InStock



Category Crystal Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	3.6mm
Length	11.35mm
Model	FC4STCBAF4.0
Packaging	Tape & Reel
Width	4.64mm
Mount Type	Through Hole
Series	FC4ST
Maximum Operating Temperature	70°C
Package Type	HC-49
Minimum Operating Temperature	-20°C
Standards/Approvals	RoHS
Pin Count	2
Standard Frequency	4MHz
Fox Electronics 4MHz Crystal ±30ppm HC-49-SLF 2-Pin 11.35 x 4.65 x 3.6mmBrand	Fox Electronics

Key Features

Standard frequency is 4 MHz with a frequency tolerance of ±30 ppm.
Package type is HC-49 with through-hole mounting and 2-pin configuration.
Physical dimensions are 3.6 mm height, 11.35 mm length, and 4.64 mm width.
Operating temperature range spans from -20°C to 70°C.
Compliant with RoHS standards ensuring environmental safety.
Termination finish includes Sn, Ag3.0, and Cu0.5 for reliable connectivity.
Shunt capacitance is 7 pF, optimized for stable frequency operation.
Load capacitance matches the series configuration for proper circuit compatibility.

Product Description

The Abracon FC4STCBAF4.0 is a high-quality 4 MHz crystal oscillator designed for through-hole mounting applications. Featuring an HC-49 package and a 2-pin configuration, this Crystal Oscillator ensures precise frequency control with a tolerance of ±30 ppm and frequency stability of ±50 ppm, making it highly suitable for various industrial and electronic devices.

Measuring 3.6 mm in height, 11.35 mm in length, and 4.64 mm in width, it fits well on standard PCBs requiring stable timing components. It operates reliably within a temperature range from -20°C to 70°C, allowing usage in diverse environments.

The crystal utilizes a resistance weld seal construction with termination finishes including tin, silver (3.0%), and copper (0.5%), enhancing the durability and soldering quality in electronic assemblies. The shunt capacitance is 7 pF, and the load capacitance is designed for series configuration, ensuring optimized oscillation performance.

This oscillator is RoHS compliant, reflecting adherence to environmental and safety standards, ideal for sustainable electronic manufacturing. Commonly implemented in communication equipment, industrial machinery, and other electronic systems demanding high precision timing and stable frequency references.

Standard frequency is 4 MHz with a frequency tolerance of ±30 ppm. Package type is HC-49 with through-hole mounting and 2-pin configuration. Physical dimensions are 3.6 mm height, 11.35 mm length, and 4.64 mm width. Operating temperature range spans from -20°C to 70°C.

Compliant with RoHS standards ensuring environmental safety. Termination finish includes Sn, Ag3.0, and Cu0.5 for reliable connectivity. Shunt capacitance is 7 pF, optimized for stable frequency operation. Load capacitance matches the series configuration for proper circuit compatibility.

Suitable for use in electronic, industrial, and communications equipment. Explore other electronics components and crystal units for your projects at EnvMart.
