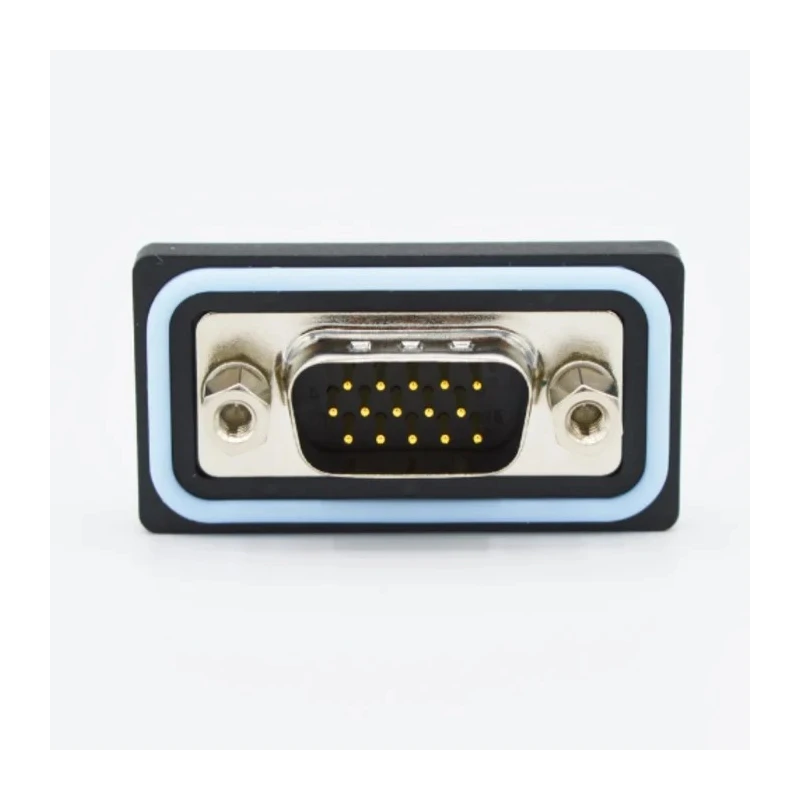

Norcomp HDF 15 Way Straight 2.29 mm Pitch PCB D-Sub Connector with 4 to 40 Screw Lock Male HDF-S15-103L011

Norcomp HDF-S15-103L011 is a 15-pin high-density male D-Sub connector designed for printed circuit board (PCB) mounting in electronic and electrical systems.

This straight orientation D-Sub connector features a 2.29 mm pitch spacing and robust 4 to 40 screw lock hardware, ensuring stable and secure mechanical connections to PCBs. The connector housing is constructed of polybutylene terephthalate (PBT), which complies with UL 94V-0 flammability standards, providing excellent electrical insulation and mechanical durability.

The contacts are made from brass and plated with gold to enhance conductivity and provide resistance against corrosion and wear, suitable for signal and low power applications with a continuous current rating of 3 amperes and a voltage rating up to 1000 VAC.

Operating temperature range from -25°C to +85°C allows for use in various industrial and commercial environments. The connector shell is nickel-plated steel, which offers mechanical protection and electromagnetic interference shielding. Additionally, the IP67 rating with silicon O-ring sealing ensures protection against dust and water ingress, making it suitable for harsh operating conditions.

This connector is ideal for use in industrial automation, telecommunications, instrumentation, and embedded electronics requiring compact, reliable interconnections. The product is manufactured in Taiwan, Province of China, adhering to high-quality standards.

The connector features 15 contacts to support complex signal routing. Screw lock mount offers secure attachment to PCBs in vibration-prone environments. Gold-plated brass contacts guarantee high-quality electrical performance.

Durable PBT housing provides flame retardancy and mechanical strength. Operates reliably over a wide temperature range from -25°C to +85°C. Rated for voltages up to 1000 volts AC for safe insulation. IP67 rating with silicon seal protects against water and dust intrusion.

Nickel-plated steel shell provides robust protection and EMI shielding. Straight orientation facilitates easy PCB mounting and wiring. Explore the full range of high-quality D-Sub Connectors at EnvMart for your electronic component needs.
