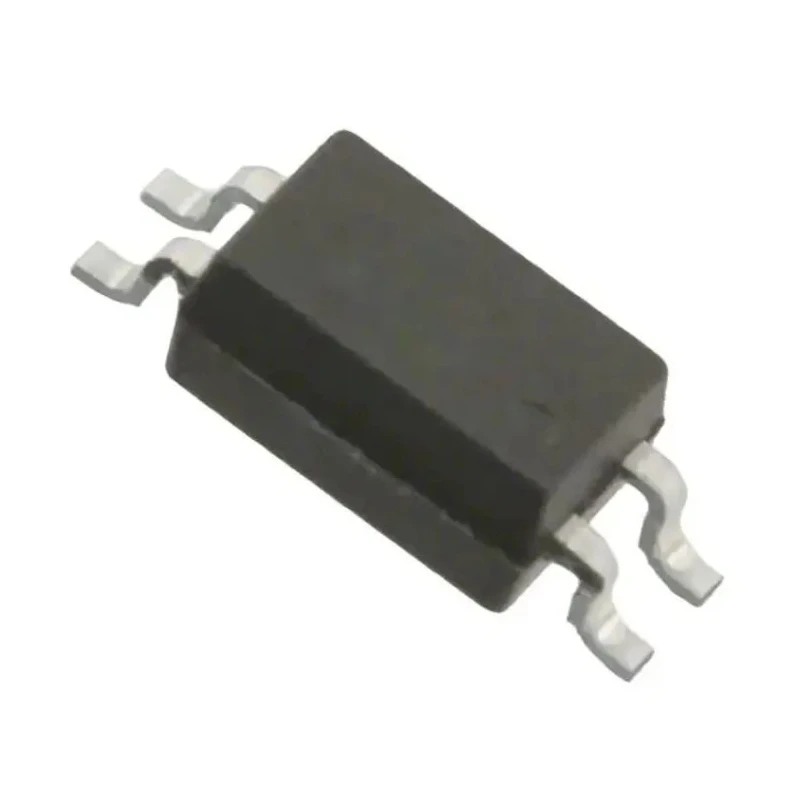

onsemi Optocoupler, Surface Mount, 4-Pin SOP, 1 Channel, 1.4V Max Forward Voltage, 3μs Rise/Fall Time, 50mA Max FODM217AV

Free Delivery in India | Lowest Global Shipping Charges

onsemi Optocoupler, Surface Mount, 4-Pin SOP, 1 Channel, 1.4V Max Forward Voltage, 3μs Rise/Fall Time, 50mA Max FODM217AV

Name: onsemi Optocoupler, Surface Mount, 4-Pin SOP, 1 Channel, 1.4V Max Forward Voltage, 3μs Rise/Fall Time, 50mA Max FODM217AV
Brand: onsemi
SKU: 421185
Price: 0.45 USD
Availability: InStock



Category Optocoupler Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Model	FODM217AV
Mount Type	Surface
Series	FODM217
Maximum Operating Temperature	110°C
Package Type	SOP
Minimum Operating Temperature	-55°C
Maximum input current	50mA
Number Of Channels	1
Standards/Approvals	UL1577, DIN EN/IEC60747-5-5
Maximum Forward Voltage	1.4V
Number of Pins	4
Typical Rise Time	3μs
Maximum Current Transfer Ratio	160%
Minimum Current Transfer Ratio	80%

Key Features

The optocoupler features a single channel with 4 pins in an SOP package.
It has a maximum forward voltage of 1.4 volts to ensure efficient LED operation.
The device supports a maximum input current of 50 milliamps, suitable for low-power circuits.
Its typical rise and fall times are 3 microseconds, allowing fast signal transmission.
Operating temperatures range from -55°C to 110°C for broad environmental use.
The current transfer ratio ranges from 80% minimum to 160% maximum, providing reliable electrical isolation.
The package is surface mount type to support modern PCB manufacturing.
UL1577 and DIN EN/IEC60747-5-5 standards compliance ensures quality and safety.

Product Description

onsemi FODM217AV optocoupler is a single-channel surface mount electronic component designed for isolating signals and protecting circuits in industrial, manufacturing, and electronic applications. It features a gallium arsenide (GaAs) infrared LED optically coupled to a phototransistor housed in a compact 4-pin SOP package.

This optocoupler operates with a maximum forward voltage of 1.4V and allows a maximum input current of 50mA. Its fast response is highlighted by typical rise and fall times of 3 microseconds, supporting quick digital signal transmission.

The device maintains reliable operation in a wide temperature range from -55°C to 110°C, making it suitable for hazardous or varying environmental conditions encountered in industrial or consumer electronics.

Featuring a current transfer ratio (CTR) ranging from 80% to 160%, it provides solid and consistent electrical isolation and output. Compliance with UL1577 and DIN EN/IEC60747-5-5 standards underscores its quality and safe use in electrical systems.

This optocoupler is widely used in electronic design applications including power supplies, signal isolation, microprocessor input protection, and interfacing between high and low voltage circuits.

The optocoupler includes a compact 4-pin SOP package enhancing PCB space efficiency. Surface mounting technology simplifies automated circuit board assembly. Typical rise and fall times of 3 microseconds enable fast switching capabilities.

Suitable for use in electronics, industrial manufacturing, automation, and signal processing applications. Packaging and design facilitate compatibility with standard electronic assembly lines. Explore more electronic components and Optocouplers at EnvMart for your industrial and commercial needs.
