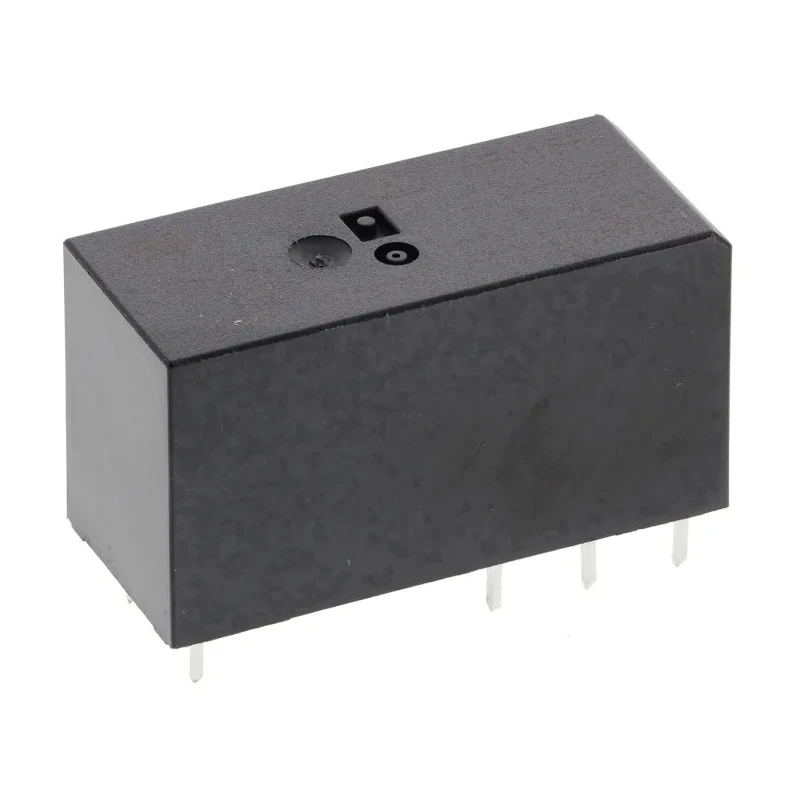

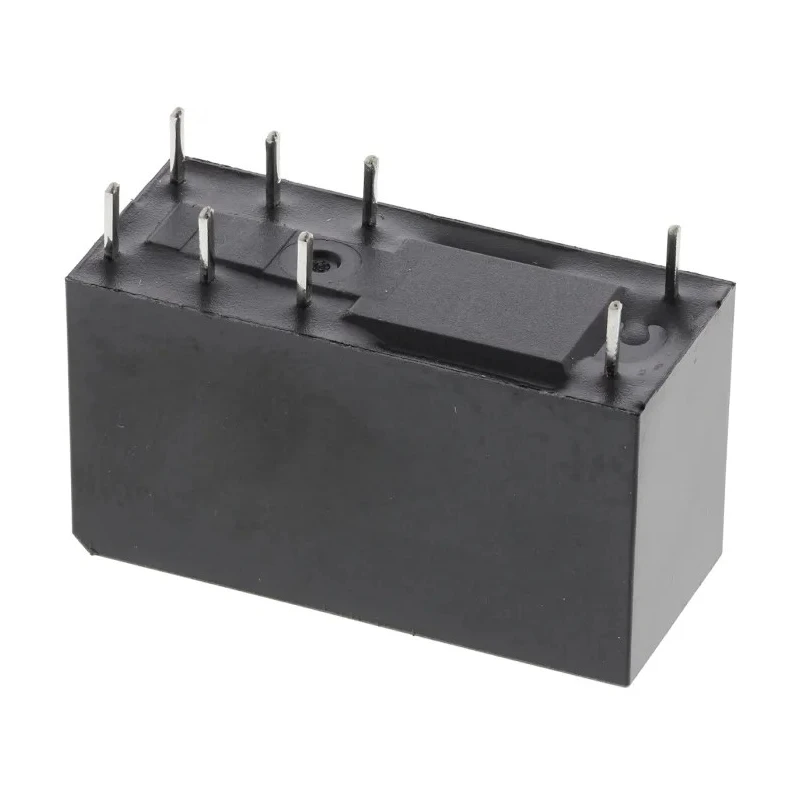

RS PRO PCB Power Relay 24V dc Coil 8A Switching Current DPDT 800-4454

RS PRO 800-4454 is a high-quality PCB power relay featuring a 24V dc coil voltage and an 8A switching current capacity in a DPDT (double-pole double-throw) contact configuration. This relay is designed for PCB mounting with solder terminals, enabling reliable and secure connections in electronic control circuits.

The relay operates efficiently within a temperature range of -40°C minimum to 85°C maximum, making it suitable for a wide variety of industrial, automation, and electrical applications. It has a low profile form factor with a maximum height of 15.7mm, length of 29mm, and width of 12.7mm, allowing easy integration into compact assemblies.

This relay is built to handle high inrush currents, certified at TV-5 80A at 125Vac, ensuring durability during switching surges. Its silver alloy contacts provide low resistance (100mΩ) and reliable conductivity. The coil resistance of 1.4kΩ and coil power of 400mW reflect efficient power consumption for actuation. Dielectric strength is rated at 5kV between the coil and contacts, with surge voltage withstand up to 10kV, ensuring robust insulation and safety.

Standards compliance includes IEC 60335-1, with approvals from UR, CQC, VDE, and UL (File no. E134517) among others, underscoring the product’s safety and quality certifications. The relay is suitable for use in electrical automation, industrial manufacturing equipment, HVAC systems, and other control applications requiring dependable power relay switching.

Coil voltage of 24V dc ensures compatibility with various PCB control systems. DPDT contact configuration provides double-pole double-throw functionality. Designed for PCB mounting with solder terminal type for secure connections.

Supports switching currents up to 8A with switching power of 3kVA. Operates within a temperature range of -40°C to 85°C for versatile environments. Features a compact, low profile design with a maximum height of 15.7mm. Contact material made of silver alloy ensures low contact resistance of 100mΩ.

High inrush capability of TV-5 80A at 125Vac for handling surge currents. Dielectric strength of 5kV between coil and contacts and surge voltage up to 10kV. Conforms to industry standards including IEC 60335-1, with UR, CQC, VDE, and UL approvals.

This product is made in China and is supplied as a new condition component. Ideal for engineers and technicians requiring a reliable power relay solution for PCB-based electronic and industrial control systems. Explore more Power Relays and related automation components in EnvMart’s extensive catalog.
