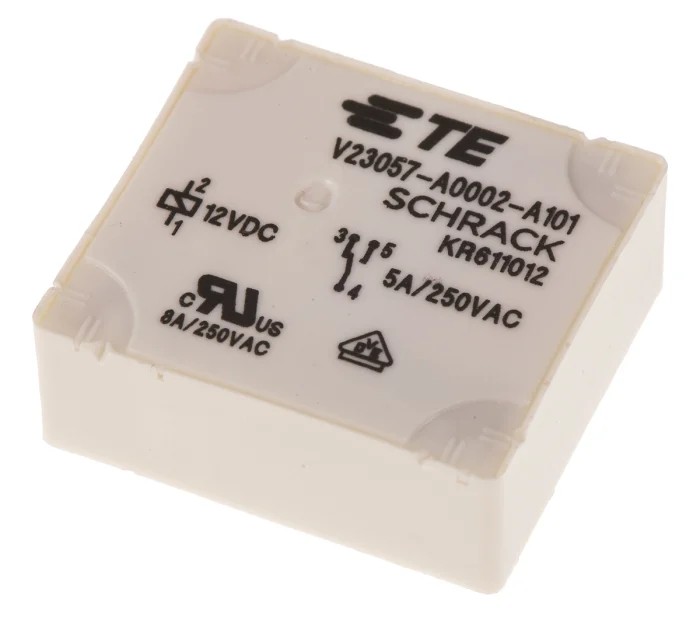

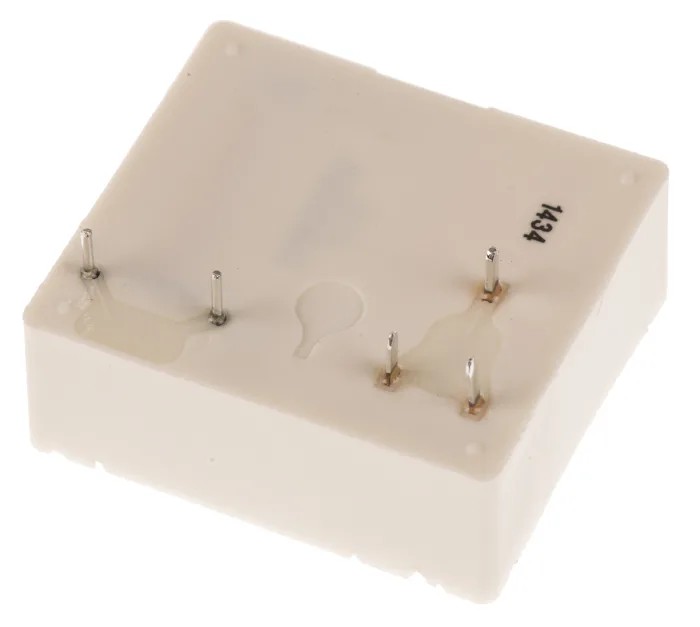

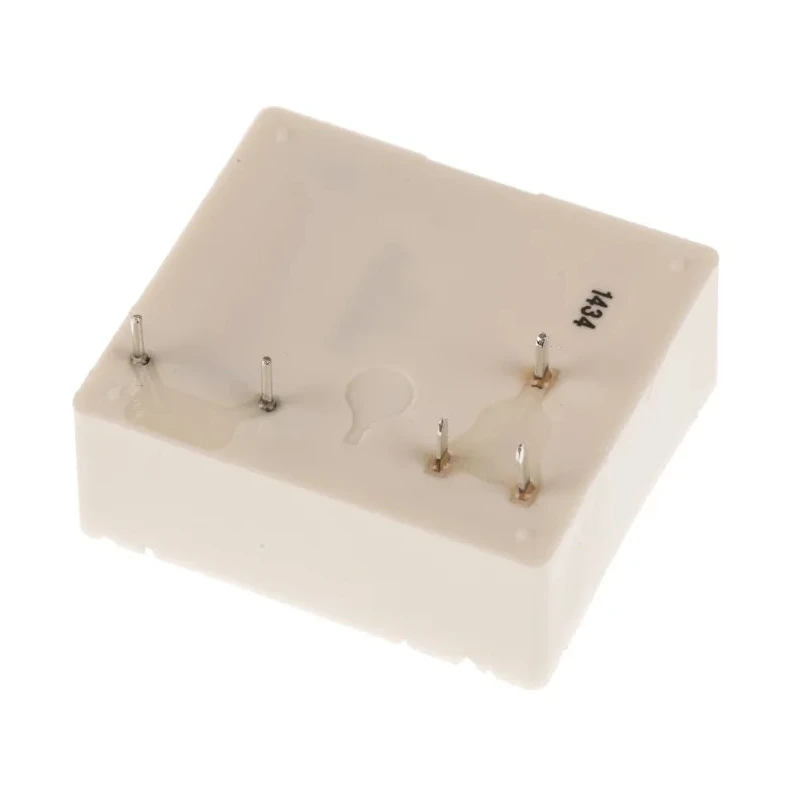

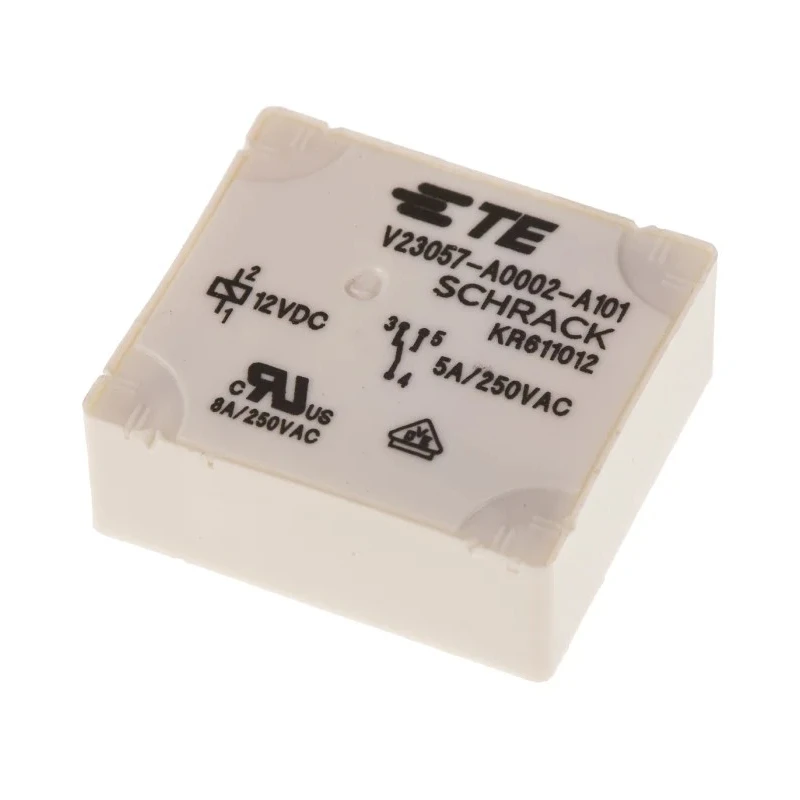

TE Connectivity PCB Power Relay 12V DC Coil 5A Switching Current SPDT V23057A2A101
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 10.8mm |
| Length | 28mm |
| Model | V23057A2A101 |
| Width | 25mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | Card E |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Standards/Approvals | UL E214025, VDE Cert. No. 5146, RoHS (Directive 2011/65/EC), REACH, IEC 61810, EU RoHS/ELV, CHINA RoHS |
| Coil Resistance | 330Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 436mW |
Key Features
- Operates with a coil voltage of 12 volts DC.

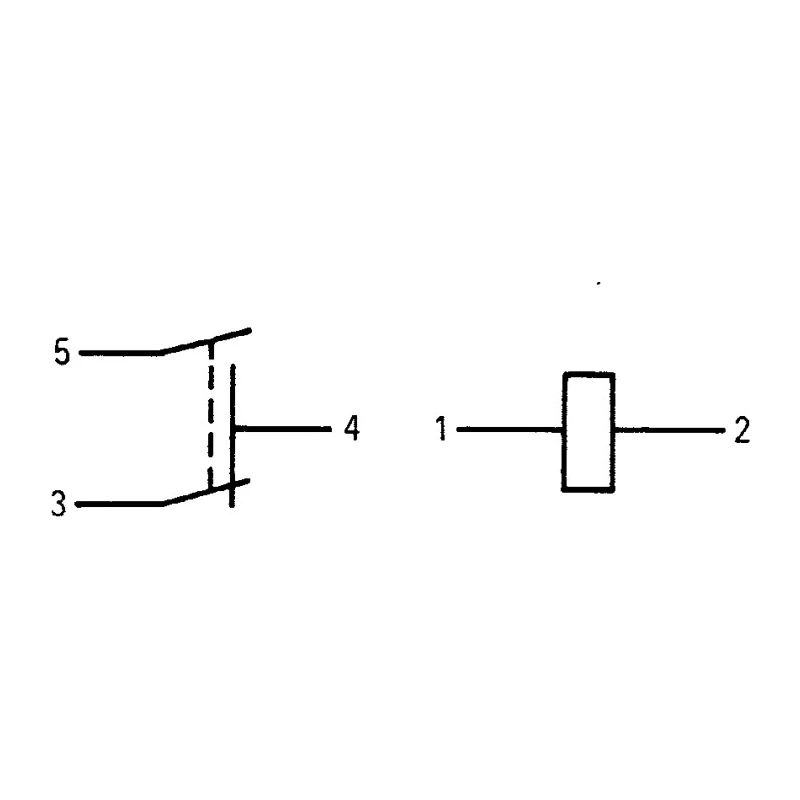

- Features a single-pole double-throw (SPDT) contact configuration.
- Capable of switching currents up to 5 amperes.

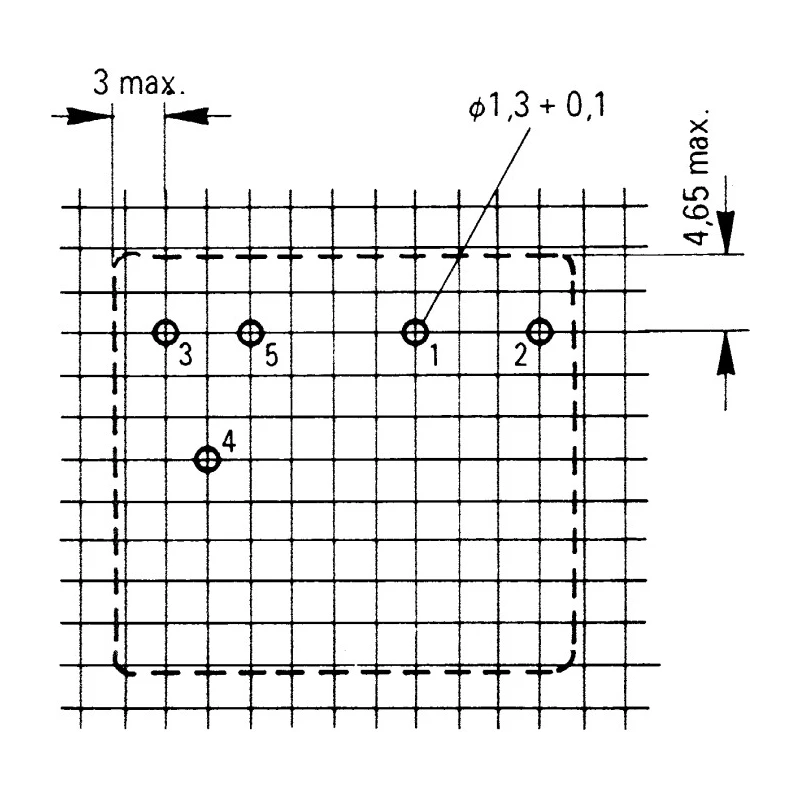

- Designed for PCB mounting with solder terminal types.
- Operates reliably in temperature ranges from -40°C to 70°C.
- Switching AC voltage rated up to 400V AC.
- Constructed with silver alloy contact material for durability.
- Coil resistance rated at 330 ohms and coil power consumption of 436 milliwatts.
Product Description
TE Connectivity V23057A2A101 PCB Power Relay is a high-quality component featuring a 12V DC coil voltage and a 5A switching current with a single-pole double-throw (SPDT) contact configuration. It is specially designed for printed circuit board mounting with solder terminals to ensure robust mechanical and electrical connection.
This relay is part of the Card E series and is fully sealed, providing reliable operation under harsh conditions. It can function effectively within a broad operating temperature range from -40°C to +70°C, making it suitable for a variety of industrial and commercial electronic applications.
The relay handles switching voltages up to 400V AC and possesses a coil resistance of 330 ohms along with a low coil power consumption of 436mW, contributing to energy efficiency in system designs. Silver alloy contacts ensure excellent conductivity and longevity.
It meets multiple international standards and certifications such as UL E214025, VDE Cert. No. 5146, RoHS Directive 2011/65/EC, REACH, IEC 61810, EU RoHS/ELV, and China RoHS, reflecting compliance with safety and environmental requirements.
Applications for this relay include use in industrial automation, HVAC systems, manufacturing equipment control, and other electrical switching situations demanding dependable PCB relay performance.

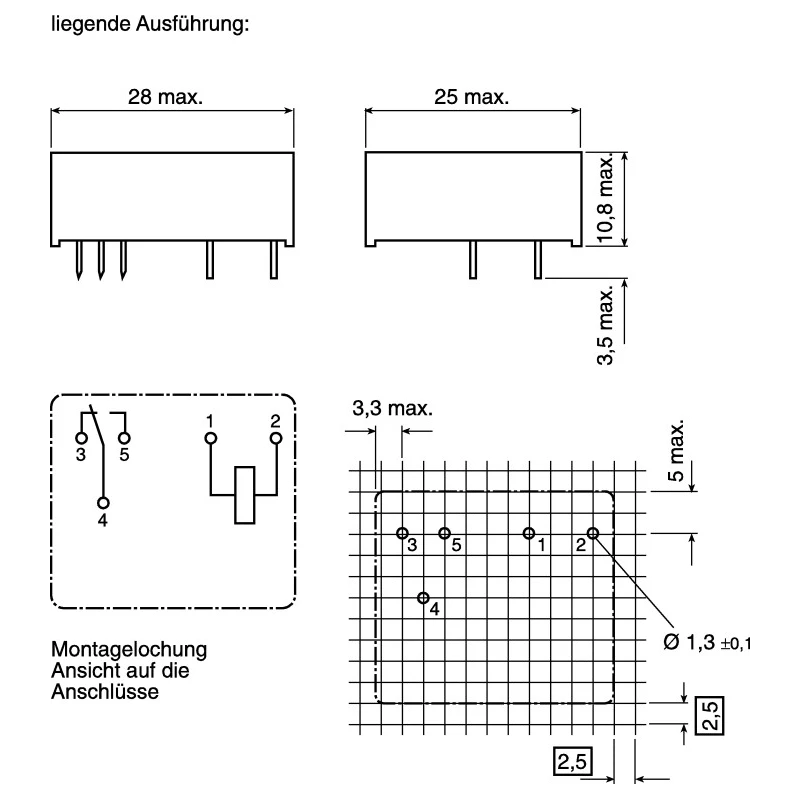

Operates with a coil voltage of 12 volts DC. Features a single-pole double-throw (SPDT) contact configuration. Capable of switching currents up to 5 amperes. Designed for PCB mounting with solder terminal types. Dimensions measure 28mm length, 25mm width, and 10.8mm height.
Operates reliably in temperature ranges from -40°C to 70°C. Switching AC voltage rated up to 400V AC. Constructed with silver alloy contact material for durability. Coil resistance rated at 330 ohms and coil power consumption of 436 milliwatts.
Compliant with UL, VDE, RoHS, REACH, IEC 61810, and related standards ensuring quality and environmental safety.
This product is manufactured in the Czech Republic. It is a new condition relay ideal for professionals requiring trusted and certified PCB power relays. Browse more from TE Connectivity and other premium brands in our Power Relays category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 12 volts DC.
It is capable of switching currents up to 5 amperes.
This relay features a single-pole double-throw (SPDT) contact configuration.
The relay measures 28mm in length, 25mm in width, and 10.8mm in height.
It operates reliably in temperature ranges from -40°C to +70°C.
The coil resistance is rated at 330 ohms.
The coil power consumption is 436 milliwatts.
It can handle switching AC voltages up to 400V AC.
It is designed for PCB mounting with solder terminal types.
The contacts are constructed with silver alloy material.
It complies with UL E214025, VDE Cert. No. 5146, RoHS, REACH, IEC 61810, and others.
This product is manufactured in the Czech Republic.
