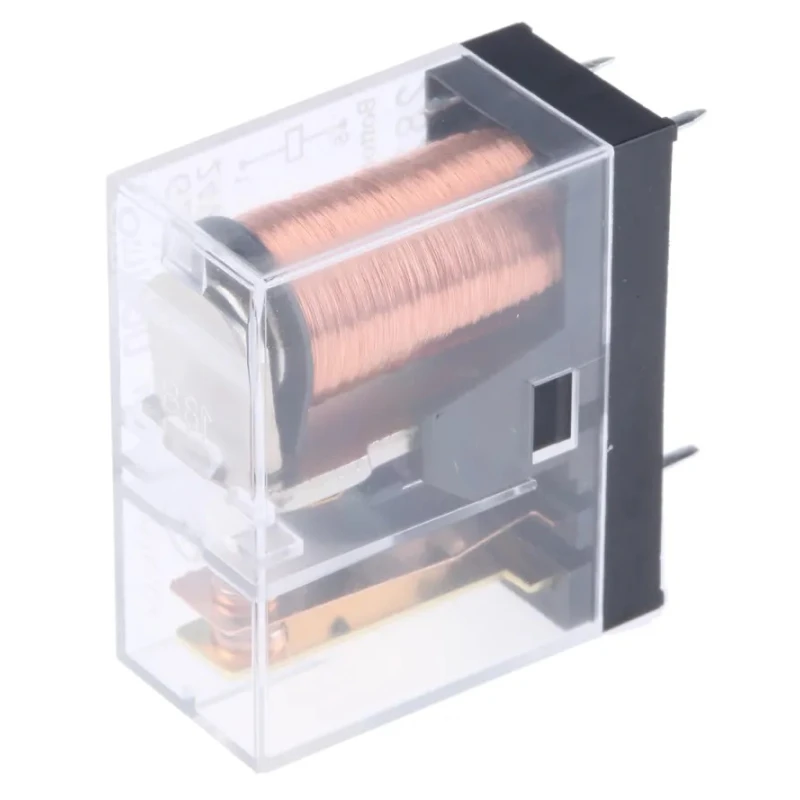

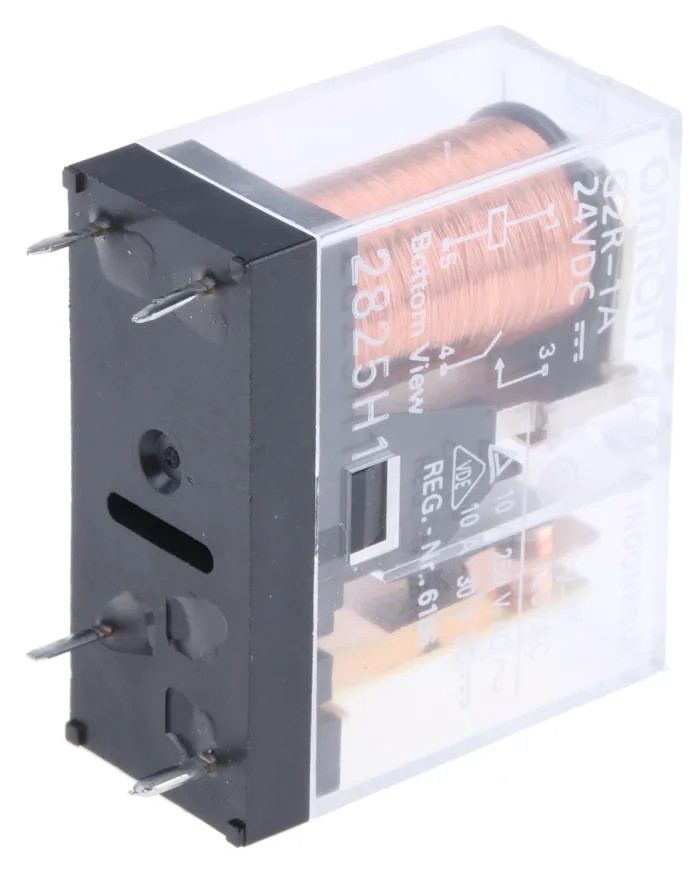

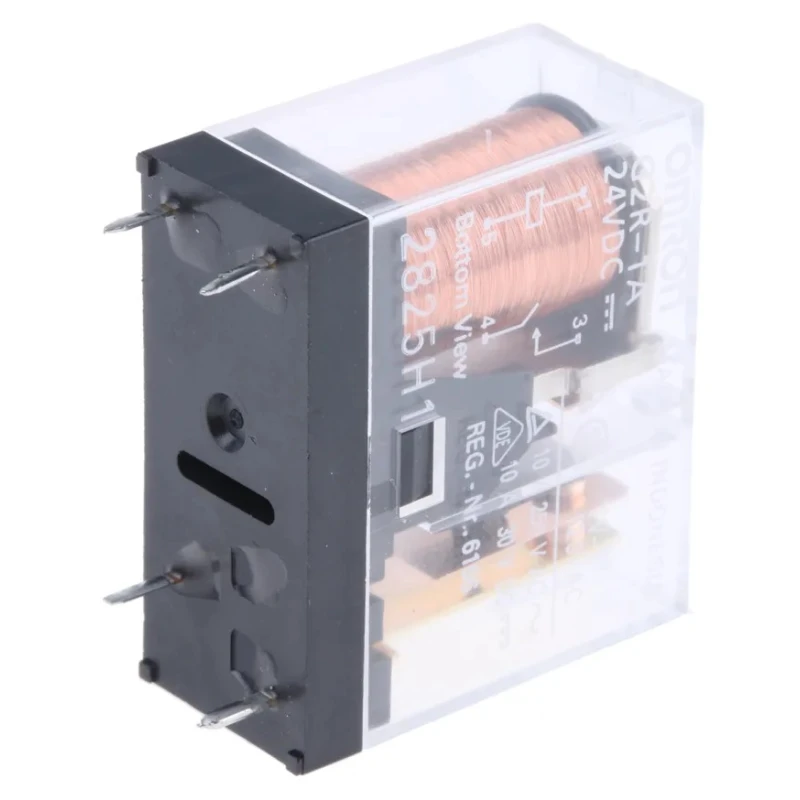

Omron General Purpose PCB Power Relay 24V DC Coil Voltage 10A Switching Current SPST G2R-1A DC24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 25.5mm |
| Length | 29mm |
| Model | G2R-1A DC24 |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R-1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 30mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 530mW |
| Switching Power | 0.9W |
Key Features
- This power relay utilizes a single-pole single-throw (SPST) contact configuration enabling simple on/off switching.
- The coil voltage is rated at 24 volts DC suitable for PCB mounting and control circuits.
- It supports a maximum switching current of 10 amperes, making it capable for moderate load handling.
- Its compact dimensions of H25.5 x W13 x D29 mm fit efficiently on PCB layouts.
- The relay incorporates silver alloy contacts that ensure low contact resistance and durability.
- Operating temperature range from -40°C to 70°C allows usage in various environments.
- The coil resistance is 1.1 kilo-ohms with a coil power consumption of 530 milliwatts.
- Compliance with UL and CSA standards guarantees product quality and safety.
Product Description
Omron G2R-1A DC24 is a general-purpose PCB power relay designed for industrial, commercial, and domestic electrical and automation applications requiring reliable switching of loads. It operates on a 24V DC coil voltage and features a SPST (single-pole single-throw) contact configuration with a switching current capacity of 10 amperes.
This relay is designed to mount directly onto printed circuit boards using a plug-in terminal type, facilitating easy installation and replacement. Its compact and durable construction measures 25.5 mm in height, 13 mm in width, and 29 mm in length, making it suitable for tight PCB areas.
The contact material is silver alloy, which provides excellent conductivity and resistance to wear, contributing to higher contact durability. The relay can switch voltages up to 125V DC and 380V AC, offering versatility across different load requirements. With a coil resistance of 1.1 kilo-ohms and coil power consumption of 530 milliwatts, it balances efficient operation and power usage effectively.
Operating temperatures range between -40°C and 70°C, ensuring functionality across a wide range of environments. The relay also adheres to recognized safety standards including UL508 and CSA 22.2 as well as EN 61810-1, SEV, and SEMKO certifications, ensuring compliance with international quality requirements. The minimum creepage and clearance distance is 8 mm, improving insulation and reducing electrical hazards.
This relay suits use cases in industrial control systems, automation equipment, HVAC controls, power management circuits, and general-purpose electrical switching. Its robust contact durability and precise coil operation make it ideal for repetitive switching tasks in commercial and manufacturing applications.
Available with plug-in terminals for ease of maintenance and PCB mounting compatibility. Designed for reliable performance under varying voltage and temperature conditions. Ideal for applications requiring UL and CSA certified components.
Explore more power relay options and industrial electrical components on EnvMart to find suitable solutions for your automation and control needs.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is rated at 24V DC.
This model supports a maximum switching current of 10 amperes.
The dimensions of this relay are 25.5 mm in height, 13 mm in width, and 29 mm in length.
It features a single-pole single-throw (SPST) contact configuration.
The operating temperature range is from -40°C to 70°C.
The coil resistance is 1.1 kilo-ohms.
The contacts are made of silver alloy, which provides low contact resistance and durability.
It complies with UL and CSA standards, ensuring product quality and safety.
This relay is designed for PCB mounting and features a plug-in terminal type for easy installation.
It can switch voltages up to 125V DC and 380V AC, providing versatility for different applications.
The coil power consumption is 530 milliwatts.
This relay is suitable for industrial control systems, automation equipment, HVAC controls, and general-purpose electrical switching.
