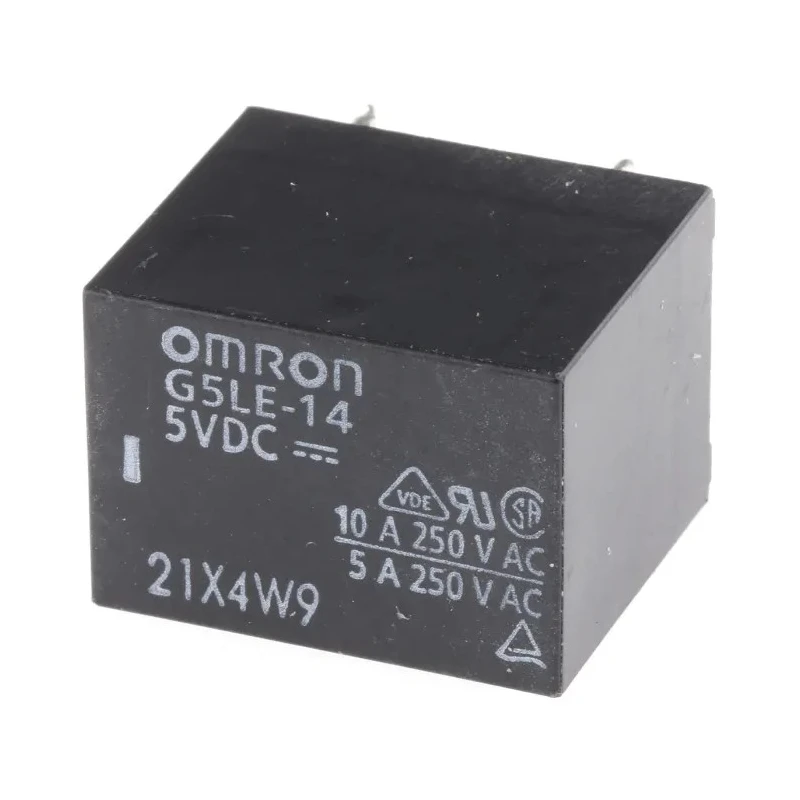

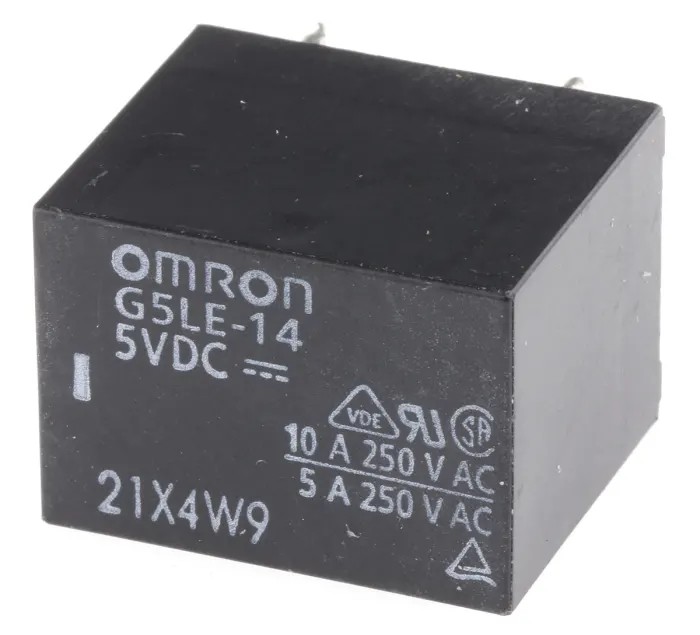

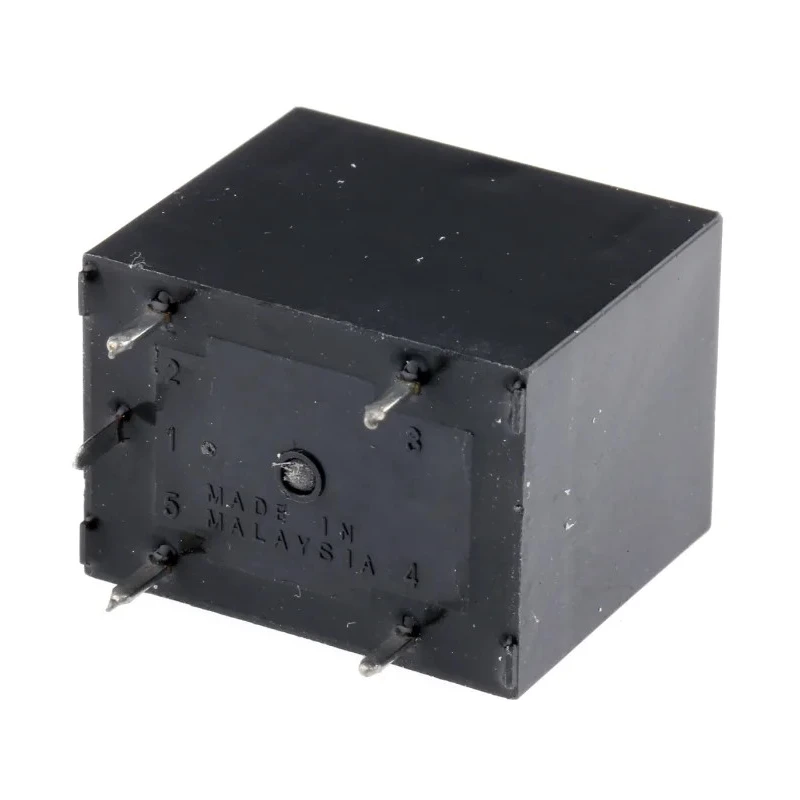

Omron PCB Power Relay 5V DC Coil 10A Switching Current 1 NO G5LE-14 DC5
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Omron |
| Height | 19mm |
| Length | 22.5mm |
| Model | G5LE-14 DC5 |
| Width | 16.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5LE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 1 NO |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Standards/Approvals | CSA, VDE, UL, RoHS, EN |
| Coil Resistance | 63Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 0.4W |
Key Features
- The relay features a single normally open (1 NO) contact configuration for reliable switching.
- It uses a silver alloy contact material to ensure durability and conductivity.

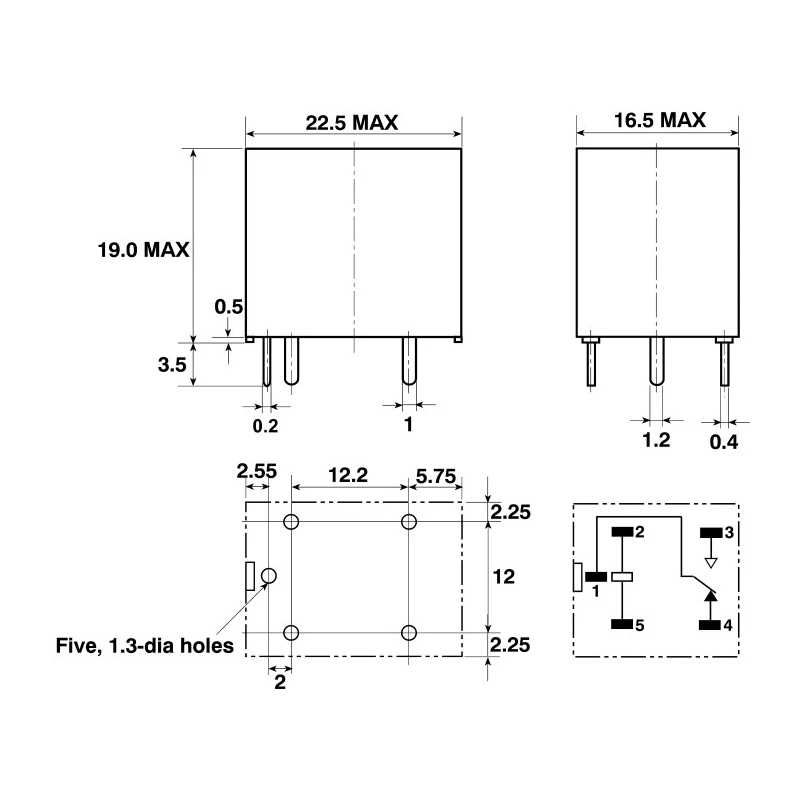

- The component has a compact subminiature 'sugar cube' form factor with dimensions of 22.5mm length, 16.5mm width, and 19mm height.
- Operates within a temperature range of -25°C to 85°C making it suitable for diverse environments.
- The coil resistance is 63 ohms with a coil power consumption of 0.4 watts, optimized for efficient performance.
- This relay withstands impulse voltages up to 4500V, enhancing robustness in industrial applications.
- It is certified under multiple standards including CSA, VDE, UL, RoHS, and EN for safety and compliance.
- The relay is mounted via PCB pins, compatible with standard printed circuit boards and simplifies installation.
Product Description
Omron G5LE-14 DC5 PCB Power Relay is engineered for demanding electrical and automation applications requiring reliable power relay solutions. Operating at a coil voltage of 5 V DC, this power relay supports switching currents up to 10A, making it ideal for use in control circuits where high current switching is essential.
The relay's single normally open (1 NO) contact configuration offers dependable operation for controlling power flow. Constructed with silver alloy contact material, it ensures excellent conductivity and extended contact life under industrial conditions.
Its subminiature 'sugar cube' form factor with precise dimensions (L22.5 × W16.5 × H19 mm) enables compact PCB designs without sacrificing performance. The relay maintains operational integrity across a broad temperature range from -25°C minimum to 85°C maximum, suitable for various industrial environments.
The coil resistance of 63 ohms and coil power rating of 0.4 watts contribute to energy-efficient actuation, minimizing coil heating. The relay withstands high impulse voltages up to 4500V, providing resilience against electrical surges common in industrial settings.
Meeting global standards such as CSA, VDE, UL, RoHS, and EN guarantees this relay's compliance with safety and environmental requirements, enhancing reliability and reducing procurement risk.
Designed for PCB mounting with standard pins, installation and replacement are streamlined, facilitating maintenance and upgrades in automation systems, manufacturing equipment, HVAC controls, and other industrial applications.
The relay features a single normally open (1 NO) contact configuration for reliable switching. It uses a silver alloy contact material to ensure durability and conductivity. The component has a compact subminiature 'sugar cube' form factor with dimensions of 22.5mm length, 16.5mm width, and 19mm height.
Operates within a temperature range of -25°C to 85°C making it suitable for diverse environments. The coil resistance is 63 ohms with a coil power consumption of 0.4 watts, optimized for efficient performance. This relay withstands impulse voltages up to 4500V, enhancing robustness in industrial applications.
It is certified under multiple standards including CSA, VDE, UL, RoHS, and EN for safety and compliance. The relay is mounted via PCB pins, compatible with standard printed circuit boards and simplifies installation.
Omron G5LE-14 DC5 Power Relays are widely used in industrial automation, manufacturing equipment, HVAC systems, and electrical control panels, delivering dependable switching performance and durability. Explore our Electronics & Electricals category for more power relay solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a switching current of up to 10A, making it suitable for high current control applications.
This model operates at a coil voltage of 5V DC, which is essential for its actuation.
It operates within a temperature range of -25°C to 85°C, allowing it to function in diverse environments.
The relay features a single normally open (1 NO) contact configuration for reliable switching.
This relay has dimensions of 22.5mm in length, 16.5mm in width, and 19mm in height.
The contacts are made from silver alloy, which ensures good conductivity and durability.
The coil resistance of the relay is 63 ohms, contributing to its efficient performance.
It is certified under multiple standards including CSA, VDE, UL, RoHS, and EN, ensuring compliance with safety and environmental requirements.
The relay is designed for PCB mounting with standard pins, simplifying installation on printed circuit boards.
The maximum switching voltage for DC is 125V and for AC is 250V, allowing it to handle various electrical loads.
The coil power consumption is 0.4 watts, which helps minimize coil heating during operation.
This relay is commonly used in industrial automation, manufacturing equipment, HVAC systems, and electrical control panels.
