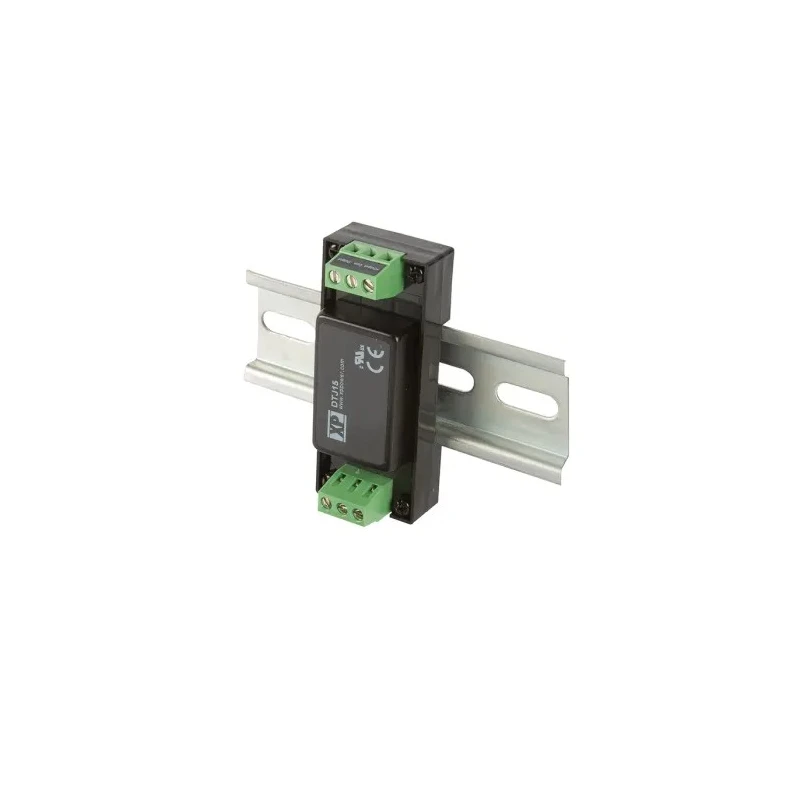

XP Power DTJ15 DC/DC Converter 12V DC 1.25A Input 9-36V 15W Chassis Mount 100°C Max Temp

XP Power DTJ15 DTJ1524S12-D DC/DC Converter is a reliable chassis-mounted power supply designed for industrial and commercial applications requiring stable 12V output at 1.25A with a maximum power of 15W. It accepts a wide DC input range from 9V up to 36V, making it adaptable for various power sources including nominal 12V, 24V, or 48V supply systems.

This converter features a rugged copper case chassis, offering excellent heat dissipation and robust mechanical protection. Its encapsulated 6-pin package type simplifies integration into circuit designs while maintaining galvanic isolation of 3kV dc to protect sensitive electronics.

With an efficiency rating of 87%, this unit minimizes wasted energy and heat generation, contributing to lower operational costs and increased reliability. The device is engineered for harsh environments, with an operating temperature span from -40°C to +100°C and delivers full rated output power up to 80°C.

Included protections such as short circuit shutdown, input reverse polarity protection, and soft start functionality enhance safety and prolong device lifespan. The output exhibits minimal ripple and noise (60mV pk-pk), ensuring compatibility with sensitive measurement and control equipment.

The DTJ15 series DC/DC converter boasts a high mean time between failures (MTBF) exceeding 4 million hours according to MIL-HBDK-27F standards, confirming its suitability for demanding industrial applications such as instrumentation, communications, embedded systems, and power management devices.

Chassis mount encapsulated DC/DC converter with 3kV dc isolation. High efficiency of 87% ensures low energy loss during operation. Wide input voltage ratio of 4:1 suitable for nominal 12V, 24V, and 48VDC systems. Operational temperature range from -40°C to 100°C for industrial environments.

Built-in protections including short circuit, reverse polarity, and soft start features. Compact dimensions: 76.2mm length, 31.4mm width, 19.4mm depth. Low ripple and noise of 60mV peak-to-peak for sensitive electronics.

High MTBF rated over 4 million hours per MIL-HBDK-27F standard. Single output with 6-pin encapsulated package type. Weight approximately 45 grams, made in Taiwan, Province Of China.

This DC/DC Converter is ideal for industrial, laboratory, manufacturing, telecommunications, and automotive power supply applications that require reliable, regulated voltage conversion with wide input voltage tolerance and temperature endurance.
