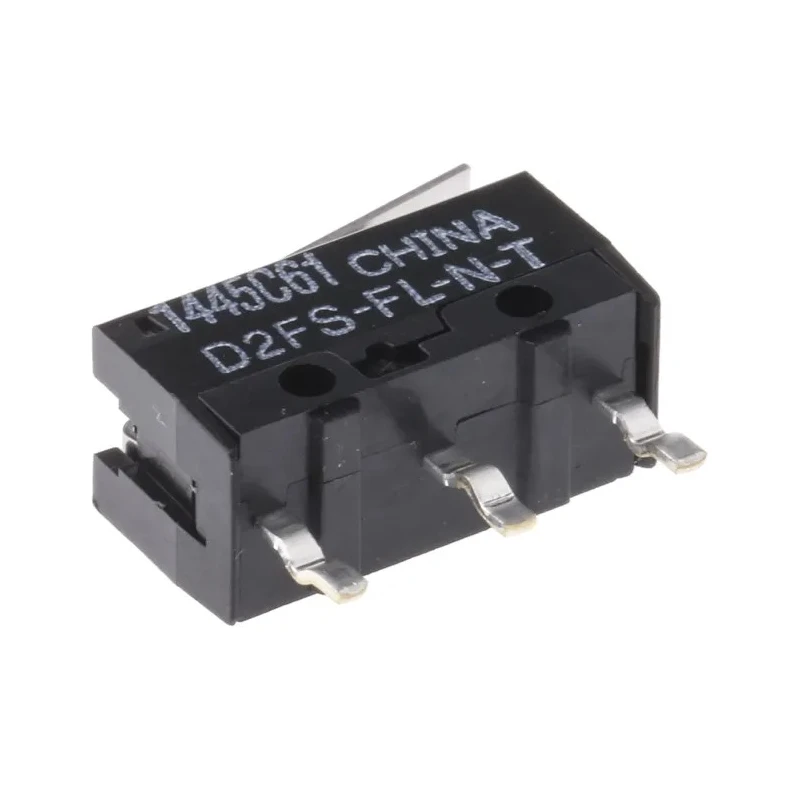

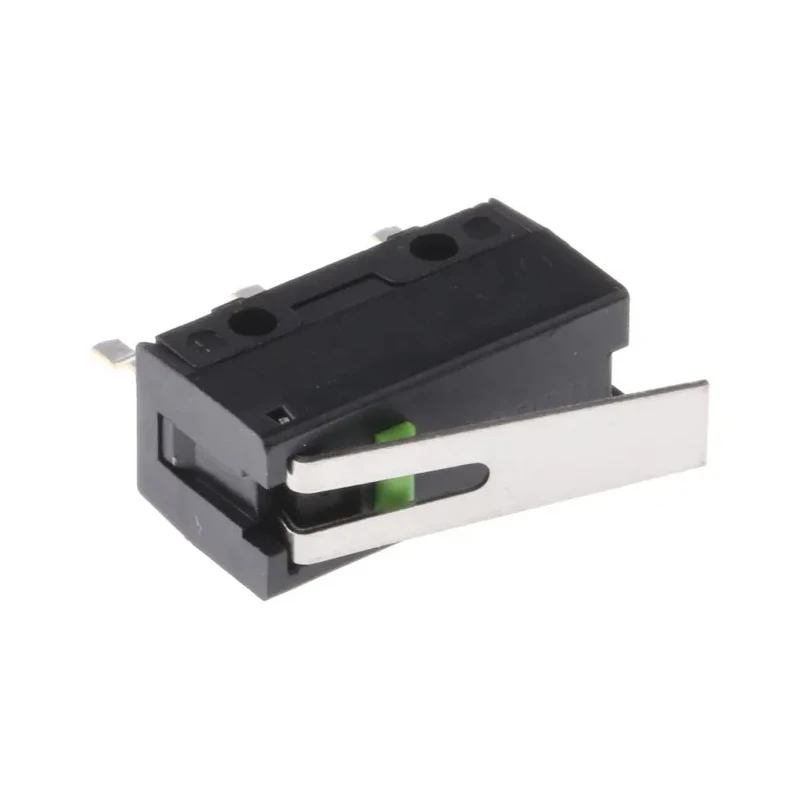

Omron Ultra Subminiature Hinge Lever Micro Switch, PCB Terminal, 100mA, 600 V AC, 6 V DC, SPST, IP40 D2FS-FL-N-T

Free Delivery in India | Lowest Global Shipping Charges

Omron Ultra Subminiature Hinge Lever Micro Switch, PCB Terminal, 100mA, 600 V AC, 6 V DC, SPST, IP40 D2FS-FL-N-T

Name: Omron Ultra Subminiature Hinge Lever Micro Switch, PCB Terminal, 100mA, 600 V AC, 6 V DC, SPST, IP40 D2FS-FL-N-T
Brand: Omron
SKU: 417733
Price: 89.41 INR
Availability: InStock



Category Micro Switch Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Length	12.8mm
Model	D2FS-FL-N-T
IP Rating	IP40
Series	D2FS
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Actuator Type	Hinge Lever
Minimum Operating Temperature	-20°C
Terminal type	PCB Terminal
Standards/Approvals	RoHS
Contact DC Voltage	6V dc
Switch Contact Current	100mA
Operating Force	0.25N
Mechanical Life	100000Operations
Contact AC Voltage	600V ac
Microswitch Type	Ultra Subminiature

Key Features

Features a hinge lever actuator providing precise mechanical control.
Supports a maximum switch contact current of 100mA.
Capable of handling contact voltages up to 600V AC and 6V DC.
Single Pole Single Throw (SPST) contact configuration ensures simple switching operation.
IP40 rated enclosure protects against solid objects greater than 1mm.
Operates effectively within temperatures from -20°C to 70°C.
Requires low operating force of 0.25N for activation.
Extremely compact length of 12.8mm suitable for tight PCB mounting.

Product Description

Omron D2FS-FL-N-T is an ultra subminiature hinge lever micro switch designed for precision switching on PCB terminals in electronic and electrical applications. This switch is built to support 100mA switching current with contact ratings supporting 600V AC and 6V DC, which makes it ideal for low power circuits and control systems.

The hinge lever actuator offers smooth, accurate actuation with an operating force as low as 0.25N, facilitating efficient operation in devices with restricted user input or automated systems.

The device provides an IP40 ingress protection rating, protecting against solid foreign objects larger than 1mm, thus ensuring reliable operation in typical industrial and laboratory environments.

Its ultra-subminiature size with a length of 12.8mm enhances its suitability for compact PCB applications in electronics manufacturing, instrumentation, and automation industries.

It offers a mechanical life of 100,000 operations, representing outstanding reliability for frequent switching needs in manufacturing automation, HVAC controls, and safety interlocks.

Compliant with RoHS, this environmentally conscious product is made in China, assuring modern manufacturing standards. Features a hinge lever actuator providing precise mechanical control. Supports a maximum switch contact current of 100mA.

Capable of handling contact voltages up to 600V AC and 6V DC. Single Pole Single Throw (SPST) contact configuration ensures simple switching operation. IP40 rated enclosure protects against solid objects greater than 1mm.

Operates effectively within temperatures from -20°C to 70°C. Requires low operating force of 0.25N for activation. Extremely compact length of 12.8mm suitable for tight PCB mounting. Designed for 100,000 mechanical life operations ensuring durability.

Complies with RoHS standards and is manufactured in China.

This Omron micro switch is highly suited for use in electrical control systems, industrial automation equipment, laboratory instruments, and HVAC system controls, providing reliable performance and long service life.
