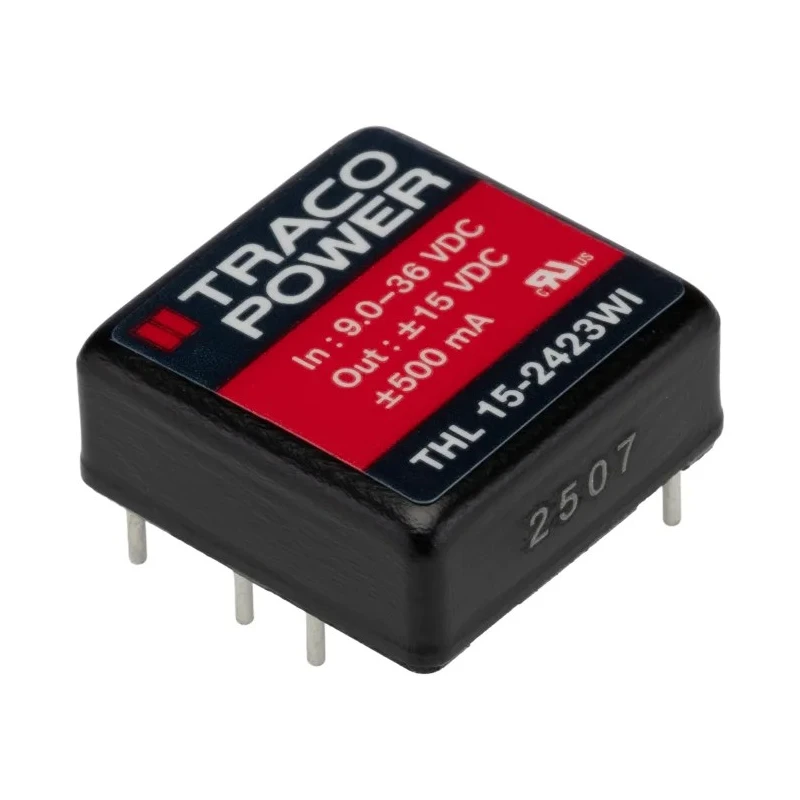

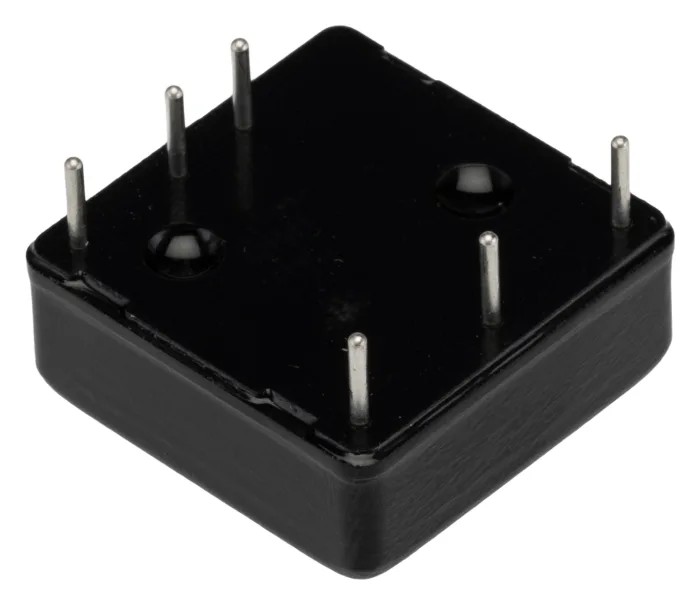

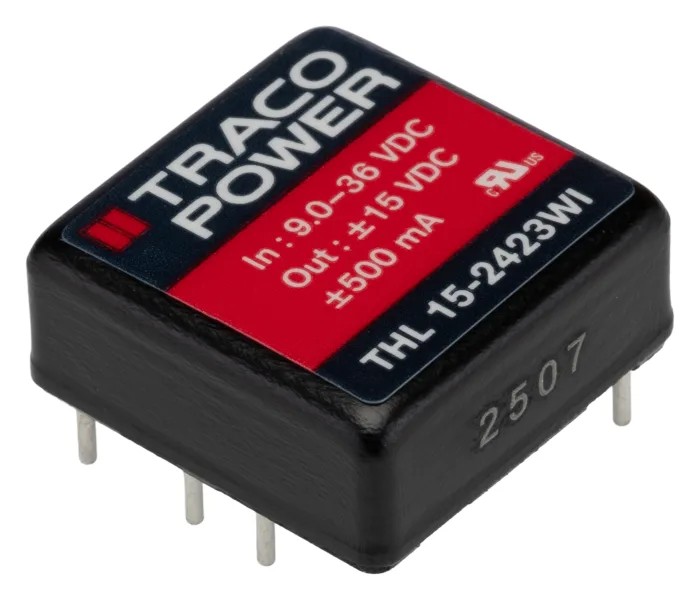

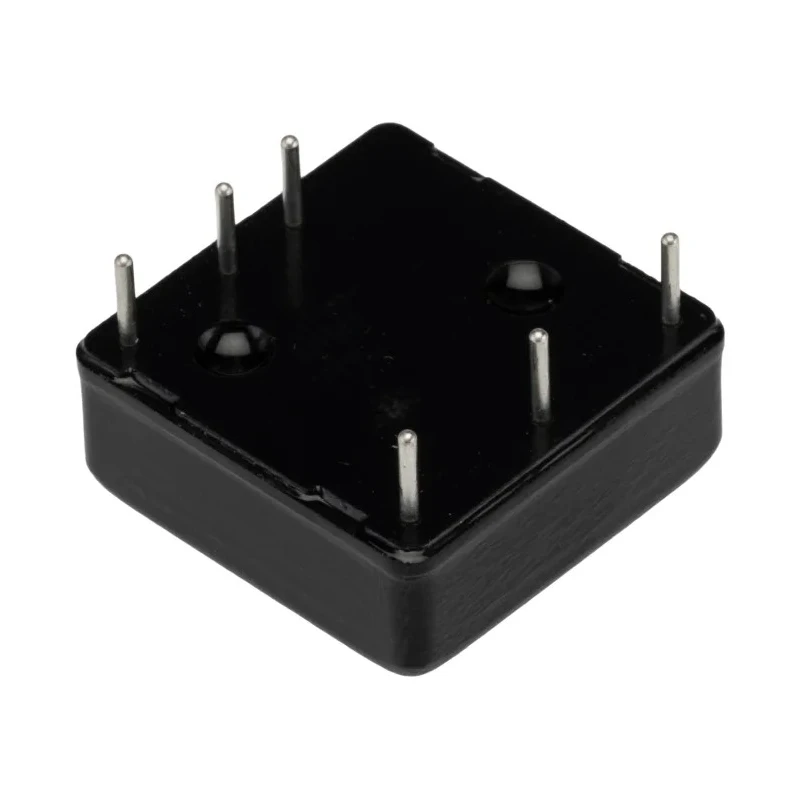

TRACOPOWER 15 Watt Isolated DC/DC Converter 15V 500 mA Ultra Wide 9-36V Input PCB Mount Metal Case THL 15-2423WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THL 15WI DC/DC Converter, 15V/ 500 mA |
| Brand | TRACOPOWER |
| Efficiency | 89% |
| Length | 25.4mm |
| Model | THL 15-2423WI |
| Depth | 10.16mm |
| Width | 25.4mm |
| Mount Type | PCB |
| Series | THL 15WI |
| Maximum Operating Temperature | 70°C |
| Package Type | Metal |
| Minimum Operating Temperature | -40°C |
| MTBF | 1374700h |
| Number of outputs | 2 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 15V |
| Output Current 1 | 500mA |
| Isolation Voltage | 1kV |
| Input Ratio | 4:1 |
| Output Voltage 2 | -15V |
| Input Ratio4 | 1 |
Key Features
- The converter supports dual outputs with a voltage of ±15V and current of 500mA.
- It features a robust metal package measuring 25.4mm x 25.4mm x 10.16mm for reliable PCB mounting.
- Operating temperature ranges from -40°C to 70°C without derating, suitable for harsh environments.
- High efficiency of up to 89% ensures energy-saving operation and low heat generation.
- Provides 1500 VDC isolation voltage for safety and noise reduction in electrical systems.
- Includes built-in class A filter and protection against overload, overvoltage, and short circuit conditions.
- Designed for industrial, communication, instrumentation, and distributed power architecture applications.
- Comes with remote On/Off and Trim function for flexible control and adjustments.
Product Description
TRACOPOWER THL 15-2423WI is a high performance 15 Watt isolated DC/DC Converter designed for cost-sensitive industrial and commercial applications requiring reliable power conversion. It delivers a tightly regulated 15V output at 500 mA current capability from a wide input voltage range of 9 to 36 VDC, making it compatible with varied power sources.
Housed in a compact, shielded metal package measuring 1 inch square and 0.4 inches thick, this PCB-mountable converter supports dual output voltages of ±15V. The series integrates an internal Class A filter along with comprehensive protection features including short circuit, overload, and overvoltage safeguards to ensure system integrity.
The device offers an isolation voltage of 1500 VDC, enabling safe operation in electrically noisy environments and preventing cross-interference between input and output circuits. Efficiency up to 89% minimizes energy loss and thermal stress, allowing continuous operation in ambient temperatures ranging from -40°C to 70°C without derating.
TRACOPOWER's THL 15-2423WI is ideal for instrumentation, mobile equipment, communication and industrial electronics, and distributed power architectures where compact size and reliable, isolated power conversion are essential. The converter supports remote On/Off and Trim functions for dynamic regulation and control customization.
The converter provides dual isolated outputs at ±15V 500mA each. I/O isolation voltage rating is 1500 VDC enhancing system safety. Wide 4:1 input voltage range from 9 to 36 VDC accommodates varied power supply conditions.
Compact metal encapsulated package measuring 25.4 x 25.4 x 10.16 mm fits dense PCB layouts. High reliability with MTBF of approximately 1.37 million hours ensures long service life. Operating temperature range is -40°C to +70°C without derating for robustness in harsh environments.
Integrated class A EMI filter reduces conducted noise in sensitive electronics. Overload, overvoltage, and short-circuit protections provide operational security. Remote On/Off and output voltage Trim functions enhance flexibility in power system design.
Made in Taiwan with strict quality standards, this converter is backed by a 3-year warranty, reinforcing TRACOPOWER’s commitment to reliability and performance. Suitable for industrial, automotive, telecommunications, and instrumentation applications, it integrates seamlessly into distributed power architectures requiring compact, efficient isolated DC/DC conversion.
Explore more industrial power conversion and electronics components in EnvMart’s Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual isolated outputs of ±15V with a current capability of 500mA each.
It operates within a wide input voltage range of 9 to 36 VDC, accommodating various power supply conditions.
The converter has an efficiency rating of up to 89%, which helps minimize energy loss during operation.
The metal case measures 25.4mm x 25.4mm x 10.16mm, making it suitable for PCB mounting in compact layouts.
It can operate in ambient temperatures ranging from -40°C to +70°C without derating, suitable for harsh environments.
The converter includes overload, overvoltage, and short-circuit protections to ensure operational security.
This unit has an isolation voltage rating of 1500 VDC, enhancing safety and reducing noise in electrical systems.
Yes, it includes a remote On/Off function that allows for flexible control in power systems.
It is designed for industrial, communication, instrumentation, and distributed power architecture applications.
The MTBF for the THL 15-2423WI is approximately 1.37 million hours, indicating high reliability.
It features an integrated Class A EMI filter, which helps reduce conducted noise in sensitive electronics.
This converter is made in Taiwan, adhering to strict quality standards.
