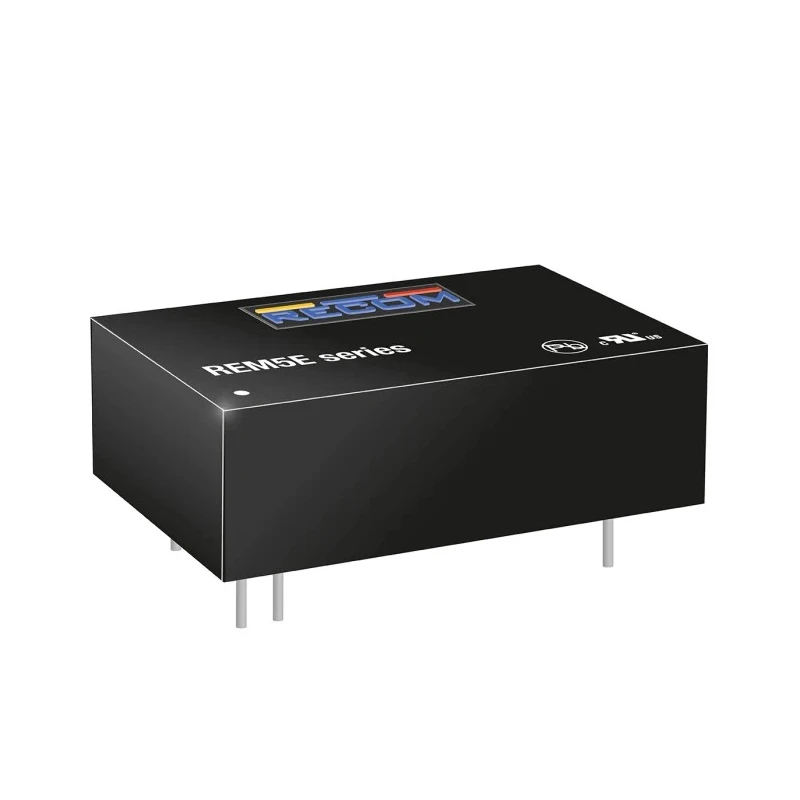

Recom Medical Grade DC/DC Converter 5 V DC 1 A Input 4.5 V to 9 V Through Hole DIP-24 Package REM5E
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom REM5E DC/DC Converter, 5V dc/ 1 A, 9V dc Inp |
| Brand | Recom |
| Efficiency | 75% |
| Length | 31.8mm |
| Model | REM5E |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | REM5E |
| Maximum Operating Temperature | 80°C |
| Package Type | DIP-24 |
| Minimum Operating Temperature | -40°C |
| MTBF | 2400000h |
| Number of outputs | 1 |
| Maximum Output Power | 5W |
| Maximum Input Voltage | 9V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 23 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 1A |
| Isolation Voltage | 8kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- This converter offers 5 W maximum output power suitable for medical-grade applications.
- Isolation voltage rated at 8 kV DC ensures reinforced insulation.
- Compact DIP-24 through-hole mount package simplifies PCB integration.
- Long MTBF of 2,400,000 hours provides dependable durability.
- Efficiency of 75% supports energy-saving operation.
- Wide operating temperature range from -40 °C to 80 °C supports harsh environments.
- Industry standard pinout with 23 pins for easy replacement and compatibility.
- Manufactured in Taiwan, Province of China ensuring quality and consistency.
Product Description
Recom REM5E DC/DC Converter is an advanced, medical-grade voltage converter designed to provide stable 5 V DC output at 1 A current from input voltages ranging between 4.5 V and 9 V. This converter features a through-hole DIP-24 package with a 2:1 wide input voltage ratio tailored for industrial, laboratory, medical equipment, and electronic power supply applications.
With a maximum output power of 5 W and an isolation voltage of 8 kV DC, the REM5E series ensures reinforced insulation and safety compliance needed in medical systems. The converter is capable of reliable operation across a wide temperature range from -40 °C to +80 °C without derating, making it suitable for use in demanding environments.
The device’s compact 31.8 mm length, 20.3 mm width, and 10.2 mm depth enable space-efficient PCB design. Its low leakage current supports medical applied part classifications (B, BF, and CF) per IEC60601-1. The product complies with UL marking and is certified according to CB, IEC, EN, and ANSI/AAMI 60601 standards for safety and electromagnetic compatibility.
The converter’s pin configuration consists of 23 pins, arranged in an industry-standard DIP-24 layout, facilitating direct integrations and easy replacements. It provides UVLO (Under Voltage Lockout), SCP (Short Circuit Protection), OCP (Over Current Protection), and OVP (Over Voltage Protection), enhancing operational safety and device longevity.
Manufactured in Taiwan, the REM5E series represents quality and regulatory-compliant solutions for voltage regulation in medical and industrial electronics. This converter offers 5 W maximum output power suitable for medical-grade applications.
Isolation voltage rated at 8 kV DC ensures reinforced insulation. Compact DIP-24 through-hole mount package simplifies PCB integration. Long MTBF of 2,400,000 hours provides dependable durability. Efficiency of 75% supports energy-saving operation.
Wide operating temperature range from -40 °C to 80 °C supports harsh environments. Industry standard pinout with 23 pins for easy replacement and compatibility. Manufactured in Taiwan, Province of China ensuring quality and consistency.
Meets IEC/EN/UL 60601 certifications for medical safety and electromagnetic compatibility. Explore a full range of DC/DC Converters at EnvMart for your professional and industrial electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 5 W.
It accepts input voltages ranging from 4.5 V to 9 V.
The efficiency of this converter is rated at 75%.
This model has dimensions of 31.8 mm in length, 20.3 mm in width, and 10.2 mm in depth.
The isolation voltage is rated at 8 kV DC, ensuring reinforced insulation.
It operates within a temperature range of -40 °C to +80 °C.
This model features 23 pins arranged in an industry-standard DIP-24 layout.
It supports through-hole mounting, simplifying PCB integration.
It includes Under Voltage Lockout (UVLO), Short Circuit Protection (SCP), Over Current Protection (OCP), and Over Voltage Protection (OVP).
The MTBF for the REM5E is 2,400,000 hours.
Yes, it complies with IEC/EN/UL 60601 certifications for medical safety and electromagnetic compatibility.
It is suitable for industrial, laboratory, and medical equipment applications.
