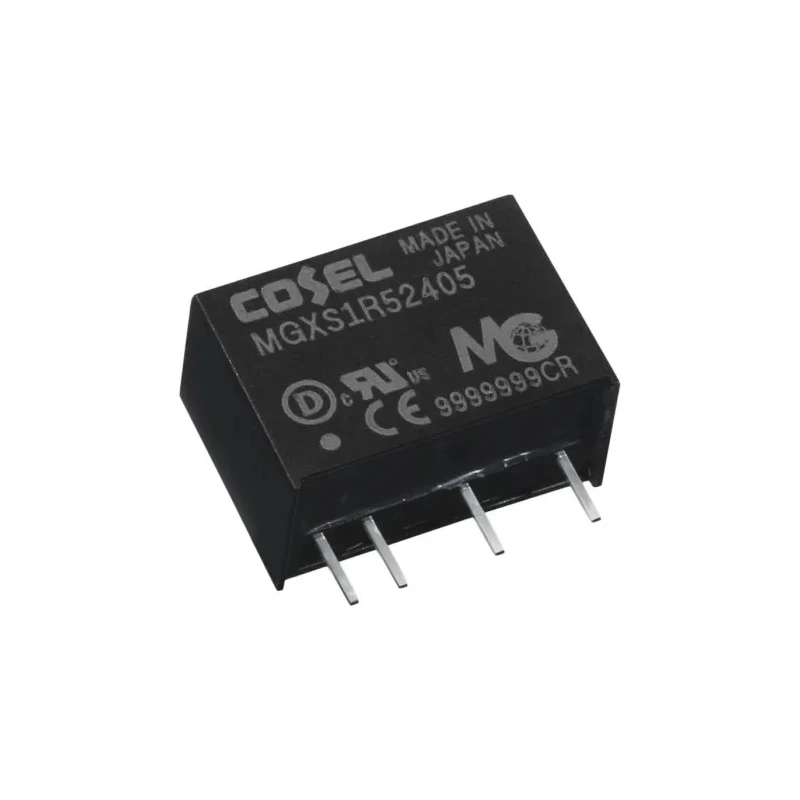

Cosel Compact Through Hole DC/DC Converter 5V DC Output 300mA, 24V DC Max Input, 6V Min Input, 1.5W Power, PCB Mount MGXS1R5
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | Converters / DC-DC Converters Cosel MGXS1R5 DC/DC Converter, 5V dc/ 300 mA, 24V |
| Brand | Cosel |
| Efficiency | 79% |
| Length | 17mm |
| Model | MGXS1R5 |
| Depth | 12mm |
| Gross Weight | 4g |
| Width | 8.5mm |
| Mount Type | Through Hole |
| Series | MGXS1R5 |
| Maximum Operating Temperature | 85°C |
| Package Type | PCB Mount |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Ripple and Noise | 200mV Pk-Pk |
| Maximum Output Power | 1.5W |
| Maximum Input Voltage | 24V dc |
| Standards/Approvals | UL60950-1, Crlus, C-UL, CE, EN60950-1 |
| Minimum Input Voltage | 6V |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 300mA |
| Output Voltage Adjustment Range | 4.90 to 5.21 V |
| Isolation Voltage | 1kV dc |
| Output Current 2 | 0.3A |
Key Features
- Delivers 5V DC output voltage with up to 300mA current capacity.
- Operates with a wide input voltage range from 6V to a maximum of 24V DC.
- Supports a maximum output power of 1.5 watts with high efficiency of 79% typical.
- Compact size measuring 17mm x 12mm x 8.5mm for easy PCB integration.
- Features built-in overcurrent protection with automatic recovery.
- Isolation voltage rated at 1kV DC ensuring safety and reliability.
- Designed for operating temperature range from -40°C to 85°C.
- Complies with UL60950-1, Crlus, C-UL, CE, and EN60950-1 standards.
Product Description
The Cosel MGXS1R5 DC/DC Converter is a high-efficiency, compact power module designed for through-hole PCB mounting. It provides a steady 5V DC output voltage at a current of 300mA, suitable for a wide variety of industrial and electronic applications. With a robust input voltage range from 6V to 24V DC, this converter supports seamless voltage regulation while maintaining an output power capacity of 1.5 watts.
Its small footprint of 17mm length, 12mm depth, and 8.5mm width allows easy integration into space-constrained environments. The device incorporates built-in overcurrent protection that automatically recovers, protecting the load and the converter itself. Additionally, the isolation voltage rating of 1kV DC ensures enhanced safety and protection against voltage spikes and noise interference.
Operating reliably in a temperature range from -40°C up to 85°C, the MGXS1R5 converter meets rigorous industrial and electronic standards, including UL60950-1, Crlus, C-UL, CE, and EN60950-1, guaranteeing compliance and quality assurance.
This lightweight device, weighing just 4 grams, is particularly suitable for applications in manufacturing, power supply regulation, laboratory instruments, and embedded electronic systems that require stable low-voltage power supplies.
Delivers 5V DC output voltage at 300mA output current. Wide input voltage range from 6V to 24V DC with surge voltage capability. Maximum output power rated at 1.5 watts with 79% typical efficiency. Through-hole mounting type for PCB integration in compact spaces.
Overcurrent protection with automatic recovery feature. Isolation voltage rated at 1kV DC for enhanced electrical safety. Operating temperature range from -40°C to 85°C suits harsh environments. Certified under UL60950-1, Crlus, C-UL, CE, and EN60950-1 standards.
Lightweight design weighing 4 grams for minimal load on circuits. Explore more in our Electronics & Electricals category for comprehensive DC/DC Converter solutions and compatible power components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers a 5V DC output voltage with a current capacity of up to 300mA.
It operates with a wide input voltage range from 6V to a maximum of 24V DC.
The maximum output power of this unit is rated at 1.5 watts.
This converter has a typical efficiency rating of 79%.
The dimensions of this model are 17mm in length, 12mm in depth, and 8.5mm in width.
It features a through-hole mounting type suitable for PCB integration.
The isolation voltage is rated at 1kV DC, ensuring safety and reliability.
This unit is designed to operate within a temperature range from -40°C to 85°C.
It complies with UL60950-1, Crlus, C-UL, CE, and EN60950-1 standards.
Yes, it includes built-in overcurrent protection with automatic recovery.
The weight of this model is 4 grams, making it lightweight for easy integration.
This converter has one output.
