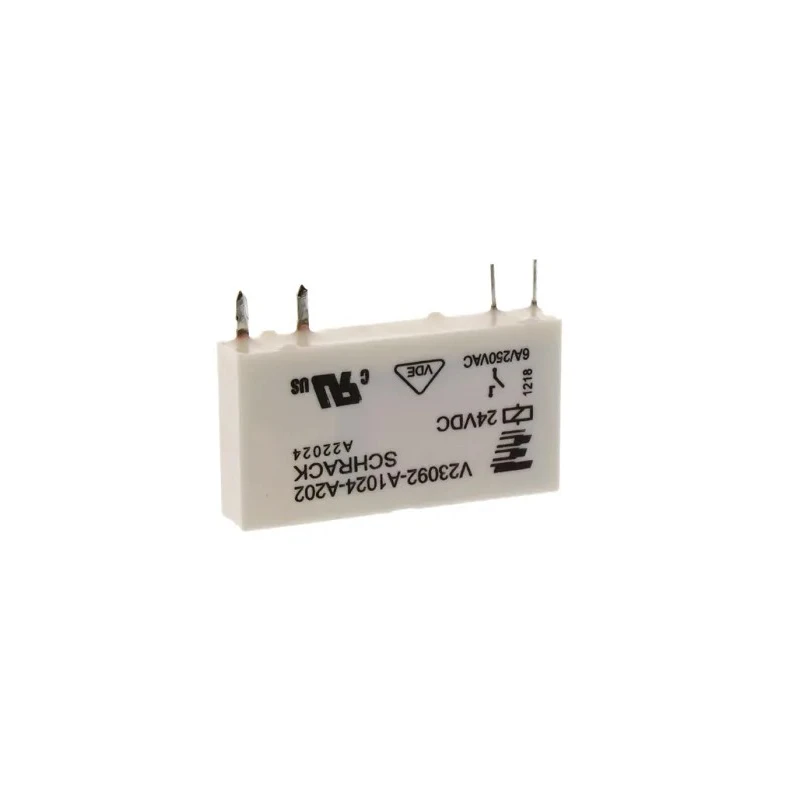

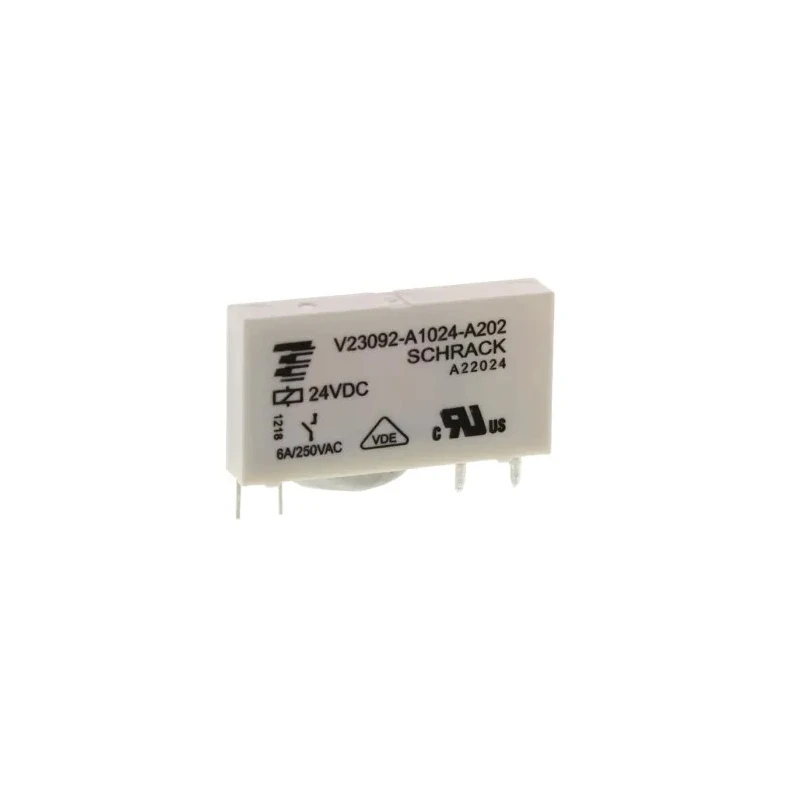

TE Connectivity PCB Power Relay 24V DC Coil 6A Switching Current SPST V23092A1024A202
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 28mm |
| Model | V23092A1024A202 |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | SNR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Solder |
| Standards/Approvals | VDE, UL, RoHS, REACH |
| Coil Resistance | 3.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 170mW |
| Isolation Coil To Contact | 4000Vac |
| High Coil sensitivity | 170mW |
Key Features
- Compact slim design with 5mm thickness ideal for high-density PCB installation.
- High coil sensitivity with a power consumption of 170mW for efficient operation.
- Gold-plated contacts ensure durable and low-resistance switching performance.
- Operating temperature range from -40°C to +85°C suitable for diverse industrial environments.
- Isolation voltage of 4000Vac between coil and contact for safe electrical separation.
- Meets standards and approvals including VDE, UL, RoHS, and REACH for compliance.
- Switching AC voltage up to 400V and switching power rating of 1.5kVA.
Product Description
TE Connectivity V23092A1024A202 PCB Power Relay features a 24V DC coil with a switching current capability of 6A in a Single Pole Single Throw (SPST) contact configuration. This relay belongs to the SNR series known for its slim form factor, having a thickness of only 5mm, length of 28mm, and height of 15mm, making it ideal for compact, high-density printed circuit board applications.
The relay offers high coil sensitivity with a power rating of 170mW, which enables energy-efficient switching. Gold-plated contact materials improve durability and reduce contact resistance, ensuring reliable electrical performance across its operational lifespan.
Designed for industrial and commercial electrical applications, it operates over a wide temperature range from -40°C to +85°C, supporting reliability in diverse environments. The product provides electrical isolation of 4000Vac between coil and contacts, supporting safe operation and protection against voltage spikes.
Application areas include electrical automation, signal conditioning, manufacturing control systems, HVAC controls, and various industrial process controls requiring reliable power relay switching.
This relay meets multiple international standards and approvals, including VDE, UL, RoHS, and REACH, ensuring compliance and safety in professional and commercial installations. Compact slim design with 5mm thickness ideal for high-density PCB installation.
High coil sensitivity with a power consumption of 170mW for efficient operation. Gold-plated contacts ensure durable and low-resistance switching performance. Operating temperature range from -40°C to +85°C suitable for diverse industrial environments.
Isolation voltage of 4000Vac between coil and contact for safe electrical separation. Meets standards and approvals including VDE, UL, RoHS, and REACH for compliance. Switching AC voltage up to 400V and switching power rating of 1.5kVA.
This TE Connectivity power relay is an ideal choice for engineers and system integrators looking for durable and efficient relays for PCB mounting in electrical and automation control circuits. Discover more Power Relay options and related components in EnvMart's extensive electronic components catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current capacity of 6A.
The coil voltage for this model is 24V DC.

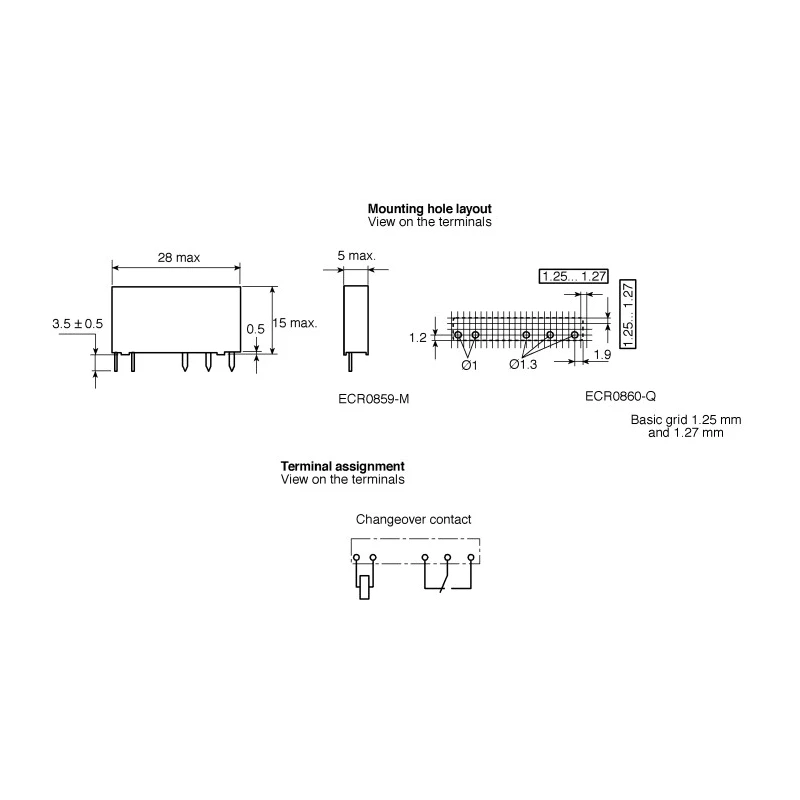

The relay has a length of 28mm, a width of 5mm, and a height of 15mm.
The coil power consumption is 170mW, indicating high coil sensitivity.
It can switch AC voltage up to 400V.
The isolation voltage between the coil and contacts is 4000Vac.
The operating temperature range is from -40°C to +85°C.
This relay features a Single Pole Single Throw (SPST) contact configuration.
The contacts are made of gold-plated material, which enhances durability and reduces resistance.
It meets several standards and approvals including VDE, UL, RoHS, and REACH.
This model is designed for PCB mounting.
This relay is suitable for applications in electrical automation, signal conditioning, and HVAC controls, among others.
