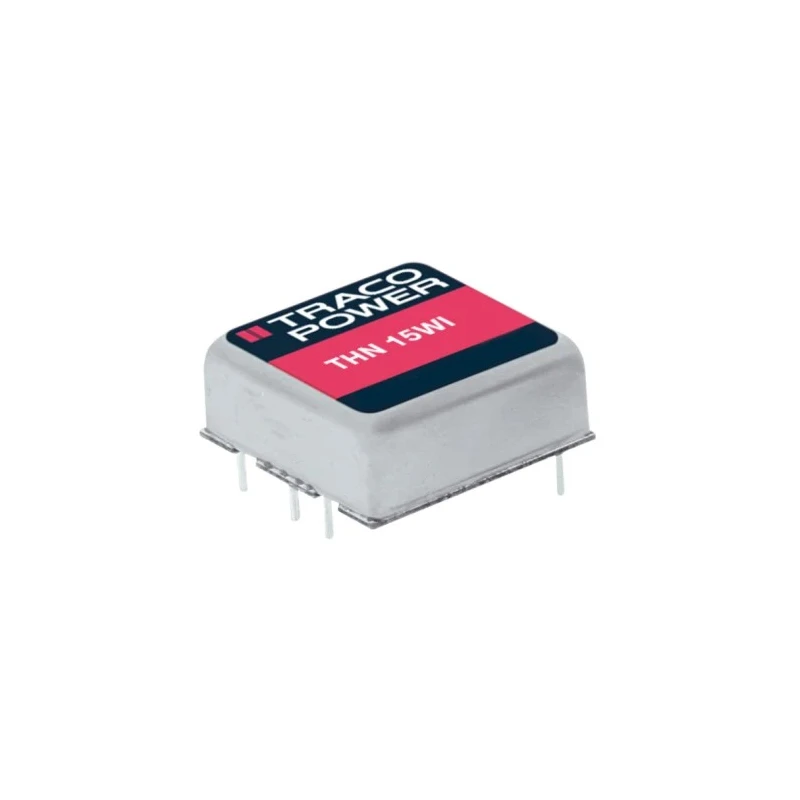

TRACOPOWER DC/DC Converter, 15 V dc Output, 500 mA, 36 V dc Maximum Input, Through Hole Mount, 15 W Power THN 15-2423WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THN 15WI DC/DC Converter, 15V dc/ 500 m |
| Brand | TRACOPOWER |
| Efficiency | 88% |
| Length | 25.4mm |
| Model | THN 15-2423WI |
| Depth | 9.9mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | THN 15WI |
| Maximum Operating Temperature | 85°C |
| Package Type | Encapsulated |
| Operating temp. range | - 40°C to +85°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 1600000h |
| Number of outputs | 2 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 500mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Output Voltage 2 | -15V dc |
| Input Ratio4 | 1 |
| Smallest encapsulated 15W Converter! Ultra compact size | 1.0 x 1.0 x 0.4 |
| Ultrawide 4 | 1 input ranges 9-36 VDC or 18-75VDC |
Key Features
- Comes in an encapsulated, shielded metal package with ultra compact size of approximately 25.4 x 25.4 x 9.9 mm.
- Provides a maximum output power of 15 W with an efficiency up to 88%.
- Designed for through hole mount with isolation voltage of 1.6 kV dc for safety.
- Operates reliably over a wide temperature range of -40°C to +85°C with output voltage trim capability.
- Features two isolated outputs including 15 V dc and -15 V dc output voltages.
- Ideal for industrial, communication, medical instrumentation, and battery operated equipment applications.
- Remote On/Off control enhances flexible system integration and power management.
Product Description
TRACOPOWER THN 15-2423WI DC/DC Converter is a compact and high precision power supply module delivering 15 V dc output voltage and 500 mA output current capacity. It features an encapsulated shielded metal case measuring just 25.4 mm length, 25.4 mm width, and 9.9 mm depth, which saves board space by about 50% compared to conventional models.
This converter supports an ultra wide input voltage range from 9 V to a maximum of 36 V dc, providing flexibility for different power source requirements. The device has two isolated outputs including the primary 15 V dc and a secondary -15 V dc output, both precisely regulated.
Efficiency is rated at 88%, ensuring reduced power losses and heat generation. It is designed for through hole mounting on printed circuit boards with a high isolation voltage of 1.6 kV dc for enhanced electrical safety.
The operating temperature range spans from -40°C to +85°C, making it suitable for harsh industrial and outdoor environments. The converter includes features such as output voltage adjustment (trimming) and remote On/Off control for efficient system integration and power management.
Typical applications include battery-operated equipment, mobile instrumentation, communication and industrial electronics, and distributed power architectures where compactness and high performance are critical.
Encapsulated, shielded metal package with ultra compact size approximately 25.4 x 25.4 x 9.9 mm. Wide input voltage range from 9 V to 36 V dc with 4:1 ratio. 15 W output power with up to 88% efficiency. Two isolated outputs: +15 V dc and -15 V dc.
Through hole mounting with isolation voltage of 1.6 kV dc. Operating temperature range from -40°C to +85°C. Output voltage trim and remote On/Off control functions.
This TRACOPOWER DC/DC Converter is manufactured in Taiwan, Province Of China, meeting high standards for reliability and durability. It is ideal for use in industrial, laboratory, communication, HVAC, and commercial environments requiring stable and efficient DC power conversion.
Explore more industrial electrical components and advanced power solutions in the category of DC/DC Converters at EnvMart for your next design or manufacturing project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 15 W.
It has an efficiency rating of up to 88%.
This converter supports an ultra wide input voltage range from 9 V to a maximum of 36 V dc.
It features two isolated outputs: +15 V dc and -15 V dc.
The operating temperature range spans from -40°C to +85°C.
This unit is designed for through hole mounting on printed circuit boards.
It has an isolation voltage of 1.6 kV dc.
The dimensions are approximately 25.4 mm x 25.4 mm x 9.9 mm.
Yes, it includes remote On/Off control for flexible system integration and power management.
The MTBF is rated at 1,600,000 hours.
It is suitable for applications in industrial, communication, medical instrumentation, and battery-operated equipment.
This model is manufactured in Taiwan, Province Of China.
