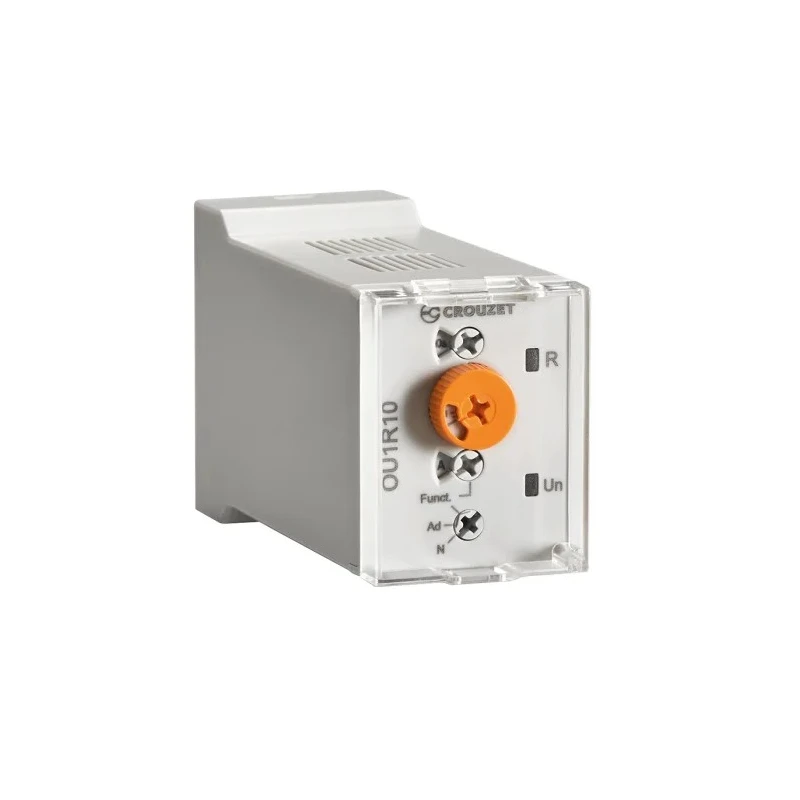

Crouzet Multifunction Timer Relay 1-Contact, 12 to 240 V dc/ac, 0.05 to 1 min and up to 1 day Timing Range OU1R

The Crouzet OU1R multifunction timer relay (model OU1R10MV1) is designed for precise timing control applications across industrial and commercial automation. Operating on a universal power supply range from 12 to 240 V dc and 12 to 240 V ac, this timer relay supports a wide timing range adjustable from 0.05 seconds up to 10 days via a dial mechanism, making it suitable for various interval timing needs.

Featuring a single SPDT (single pole double throw) contact rated at 10 A switching voltage of 125/250 V ac, the OU1R relay supports multifunction timing with 90° offset modes for versatile operation. Its compact form factor measures 53 mm in height, 35 mm in length, and 82.31 mm in width with 8-pin terminal connections enabling straightforward installation in automation panels.

The relay is housed with IP40 protection and operates reliably within the temperature range of -20°C to 60°C. Additional features include a protective cover, LED status indicator for operational feedback, and compatibility with 3-wire PNP sensors enhancing its integration possibilities in industrial environments.

This timer relay complies with international standards such as CE, WEEE, REACH, IEC 61812-1, RoHS, UL 60947-4-1, and relevant CEE directives, ensuring safety and reliability in demanding electrical and automation applications.

This timer relay features multifunction and 90° offset operation modes. Timing range extends from 0.05 seconds to 10 days offering versatile control. Equipped with a single SPDT contact rated for 10 A at 125/250 V ac switching voltage.

Compact design with 8-pin terminal and dial timing adjustment for ease of use. Operating temperature ranges from -20°C to 60°C with IP40 protection rating. Includes LED status indicator and 3-wire PNP sensor compatibility.

Robust standard compliance including CE, cULus, RoHS, and IEC 61812-1 certifications.

This timer relay is suitable for industrial automation, electrical control panels, HVAC systems, manufacturing processes, and other commercial uses requiring precise interval timing.
