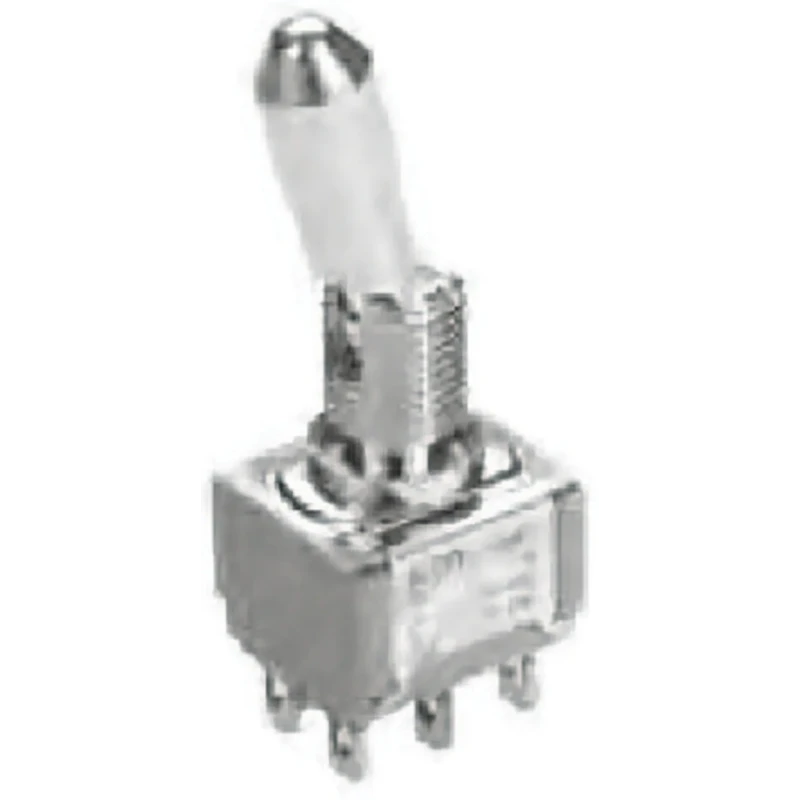

TE Connectivity Panel Mount Toggle Switch DPDT On-Off-On 12 V dc 112 V ac 5A 1825139-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Mount Type | Panel |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Off-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Standards/Approvals | cULus, UL, RoHS, IEC, EN |
| Switch Operation | On-Off-On |
| Actuator Length | 16.26mm |
| Contact DC Voltage | 12V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 112V ac |
| Actuator Material | Phenolic |
Key Features
- Panel mount design ensures easy installation in control panels and equipment.
- Double Pole Double Throw (DPDT) contact configuration for versatile switching.
- On-Off-On switch operation provides two active ON positions with an OFF state in the center.
- Solder terminal type offers reliable and secure electrical connections.
- Actuator length of 16.26 mm made from phenolic material for durability.
- Epoxy sealed terminals provide protection from environmental factors.
- Stainless steel frame with brass tin plated solder support ensures mechanical strength and corrosion resistance.
- Operates safely between -30°C to 85°C for wide temperature applications.
Product Description
TE Connectivity 1825139-1 Panel Mount Toggle Switch is a robust, industrial-grade switch designed for reliable operation in electrical and automation applications. Rated for 12 V dc and 112 V ac with a maximum switch contact current of 5A, this switch features a Double Pole Double Throw (DPDT) contact configuration and On-Off-On switch operation, allowing for flexible circuit control with two active ON positions and a center OFF state.
The panel mount design allows for secure and convenient mounting within control panels or equipment enclosures. The switch has solder type terminals for strong electrical connections typical in PCB or wiring harness setups, complemented by epoxy sealed terminals that provide enhanced environmental resistance.
The actuator length measures 16.26 mm and is constructed from phenolic material, offering mechanical durability under normal operating conditions. The switch frame is made from stainless steel with brass tin plated solder supports, ensuring corrosion resistance and mechanical robustness.
This toggle switch operates reliably in a temperature range of -30°C to 85°C, making it suitable for industrial, manufacturing, laboratory, HVAC, and automation control applications. It complies with recognized international standards including cULus, UL, RoHS, IEC, and EN, ensuring quality and safety for users.
Its non-illuminated design suits applications where no internal light indication is needed, reducing power consumption and complexity. Panel mount toggle switch with DPDT On-Off-On operation. Epoxy sealed terminals enhance environmental protection.
Stainless steel frame and brass tin plated solder terminals for durability. Actuator length of 16.26 mm made of phenolic material. Operating temperature range: -30°C to 85°C. Compliant with cULus, UL, RoHS, IEC, and EN standards.
Suitable for industrial, laboratory, HVAC, and automation use cases. Explore the Electronics & Electricals category on EnvMart for more reliable Toggle Switches and control components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile circuit control with two active ON positions and a center OFF state.
It operates reliably within a temperature range of -30°C to 85°C, making it suitable for a variety of industrial and automation applications.
This model has solder type terminals, which provide strong and reliable electrical connections typical in PCB or wiring harness setups.
The switch is rated for a contact DC voltage of 12V and a contact AC voltage of 112V.
The maximum switch contact current is rated at 5A, suitable for various applications requiring reliable switching.
The actuator length measures 16.26 mm and is made from phenolic material, providing mechanical durability under normal operating conditions.
It complies with several recognized international standards including cULus, UL, RoHS, IEC, and EN, ensuring quality and safety for users.
The terminals are epoxy sealed, providing enhanced protection from environmental factors, which is crucial for reliable operation in various conditions.
This model features a panel mount design, ensuring secure and convenient installation within control panels or equipment enclosures.
It is suitable for industrial, laboratory, HVAC, and automation control applications, where reliable switching is required.
The switch frame is constructed from stainless steel with brass tin plated solder supports, which ensures corrosion resistance and mechanical strength.
The switch operates in an On-Off-On configuration, allowing for flexible control of electrical circuits.
