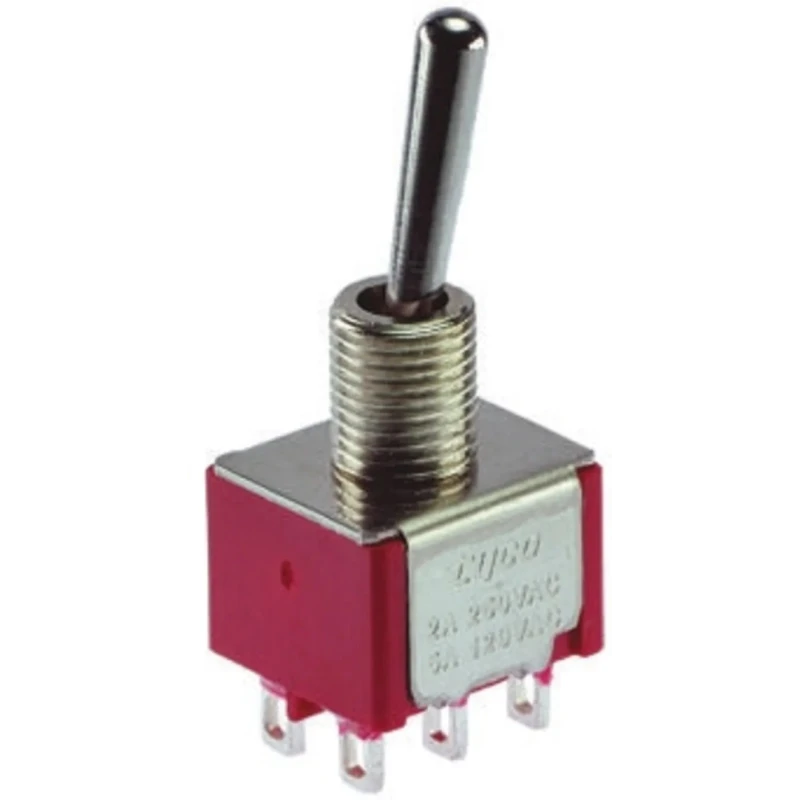

TE Connectivity Panel Mount Toggle Switch SPDT On-On Solder Terminal 24 V dc 120 V ac 3-1825136-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 0.50in |
| IP Rating | IP68S |
| Width | 0.27in |
| Mount Type | Panel |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS, UL, EN, IEC, cULus |
| Switch Operation | On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 6000Cycles |
| Contact AC Voltage | 120V ac |
| Actuator Material | Phenolic |
Key Features
- Features a solder terminal for secure electrical connections.
- Compact actuator length of 10.41 mm made from durable phenolic material.
- Operates reliably within a temperature range of -30°C to 85°C.
- Panel cutout size requires 6.35 mm for mounting.
- IP68S rated providing excellent protection against dust and water ingress.
- Mechanical life rated at 6000 cycles for extended durability.
- Offers a contact current rating of 5 A for robust electrical performance.
- Complies with RoHS, UL, EN, IEC, and cULus standards for quality assurance.
Product Description
TE Connectivity 3-1825136-1 Panel Mount Toggle Switch is a precision-engineered Single Pole Double Throw (SPDT) switch designed for industrial and commercial electrical applications operating at 24 V dc and 120 V ac. This on-on switch features reliable solder terminals making it suitable for secure and stable wiring connections within control panels.
The actuator is constructed of phenolic material with a length of 10.41 mm providing tactile feedback and durability. The switch supports a contact current rating of 5 amperes, ensuring consistent performance under moderate electrical load.
Built with a stainless steel frame and brass tin-plated solder support, the switch features an epoxy-sealed terminal design contributing to its IP68S ingress protection rating. This makes it highly resistant to dust and water, suitable for harsh industrial environments.
Operating temperature ranges from -30°C to 85°C, further enhancing its applicability in varied ambient conditions. The switch is compact, with a panel cutout size of 6.35 mm, length of 0.50 inches, and width of 0.27 inches, making it ideal for limited space installations.
Its mechanical life of 6000 cycles indicates a long-lasting switch suitable for frequent usage in automation, electrical control panels, HVAC equipment, and industrial machinery. Features a solder terminal for secure electrical connections.
Compact actuator length of 10.41 mm made from durable phenolic material. Operates reliably within a temperature range of -30°C to 85°C. Panel cutout size requires 6.35 mm for mounting. IP68S rated providing excellent protection against dust and water ingress.
Mechanical life rated at 6000 cycles for extended durability. Offers a contact current rating of 5 A for robust electrical performance. Complies with RoHS, UL, EN, IEC, and cULus standards for quality assurance. Ideal for use in industrial automation systems, electrical control cabinets, HVAC controls, instrumentation panels, and commercial electrical installations.
Explore more high-quality switches and electrical components in EnvMart’s Electronics & Electricals category for dependable industry solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this toggle switch is 5 amperes, ensuring robust electrical performance under moderate loads.
This model has an IP68S rating, providing excellent protection against dust and water ingress, making it suitable for harsh environments.
It operates reliably within a temperature range of -30°C to 85°C, suitable for various ambient conditions.
The panel cutout size required for mounting this switch is 6.35 mm.
The actuator is made from durable phenolic material, contributing to its tactile feedback and durability.
The mechanical life of this switch is rated at 6000 cycles, indicating its suitability for frequent usage.
It features solder terminals for secure and stable wiring connections within control panels.
This toggle switch complies with RoHS, UL, EN, IEC, and cULus standards for quality assurance.
The switch configuration is Single Pole Double Throw (SPDT) with an On-On operation.
The switch has a length of 0.50 inches and a width of 0.27 inches, making it compact for limited space installations.
It is suitable for use in industrial automation systems, electrical control cabinets, HVAC controls, and instrumentation panels.
This model is rated for 24 V DC and 120 V AC, making it versatile for various electrical applications.
