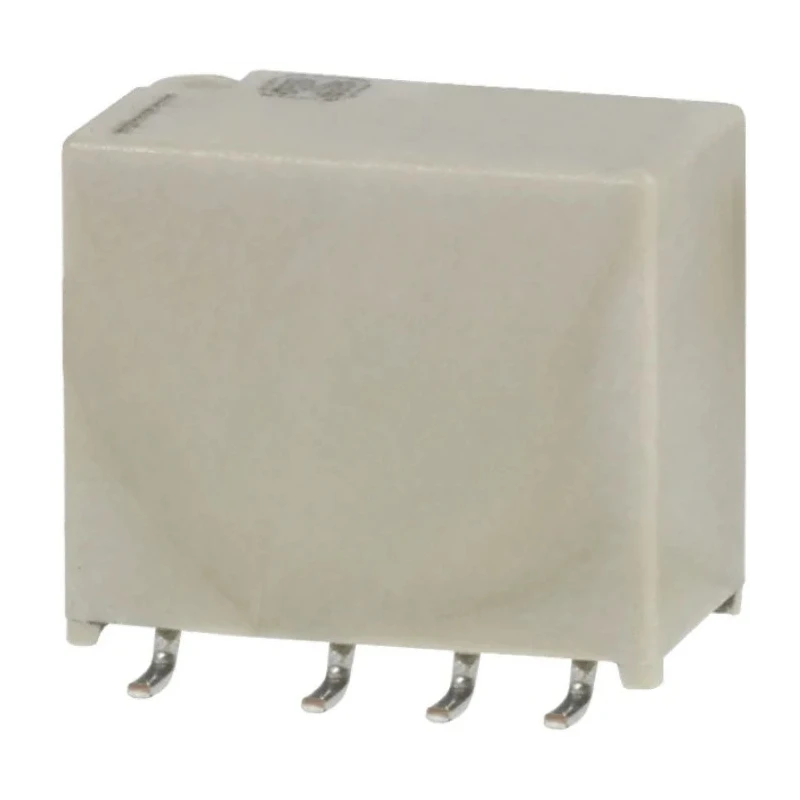

Panasonic Surface Signal Relay 24V DC Coil 1A DPDT AGN200A24

Panasonic AGN200A24 surface signal relay features a 24V DC coil and a 1A switching current with a DPDT contact configuration. This relay is engineered with a compact slim body of dimensions 9mm height, 5.7mm width, and 10.9mm length, making it highly suitable for dense PCB layouts.

The relay utilizes gold plated silver aluminium contacts and twin crossbar contact design to ensure superior contact reliability and long operational life. It is designed for surface mounting on printed circuit boards (PCB), offering excellent resistance to surge and vibration, enhancing operational stability in demanding industrial environments.

The operating temperature range from -40°C to 85°C allows for use in various harsh environments including industrial automation, telecommunications, measurement, and audio-visual equipment. With a coil resistance of 2504Ω and a coil power rating of 230mW, it ensures low power consumption without compromise on performance.

Its sealed construction permits automatic washing processes during manufacturing without risk of damage, supporting efficient assembly lines. The PCB terminal type further supports reliable and secure electrical connections.

Compliant with RoHS standards, the AGN200A24 relay offers environmental safety while providing high-quality switching capabilities. Manufactured in Japan, this relay stands for superior reliability and precision required in high-performance signal relay applications.

Compact slim body measuring 9mm height, 5.7mm width, and 10.9mm length. High contact reliability ensured by twin crossbar contacts. Gold plated silver aluminium contact material for durability and performance. Wide operating temperature range from -40°C to 85°C.

Designed for surface mounting on PCB with excellent surge resistance. Coil resistance of 2504Ω and coil power consumption of 230mW. Sealed construction allowing automatic washing without damage. Suitable for telecommunications, measurement equipment, and audio-visual applications.

Meets RoHS standards with reliable PCB terminal type terminals. Manufactured in Japan ensuring high-quality craftsmanship.

Ideal for industrial, commercial, telecommunications, laboratory, measurement, and automation use cases. Explore our wide range of Signal Relays and components on EnvMart for reliable electronic and electrical solutions.
