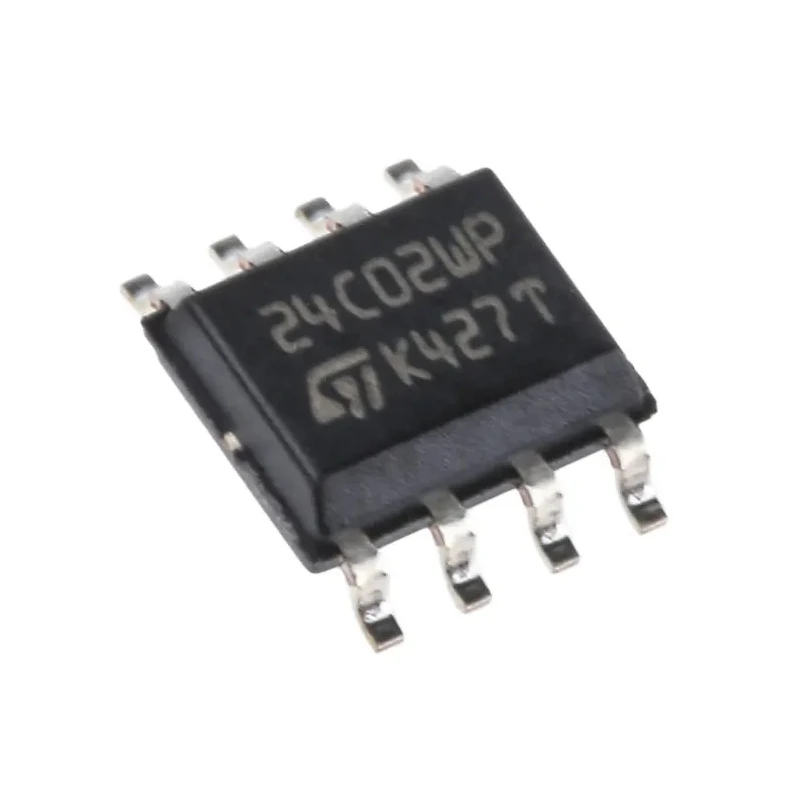

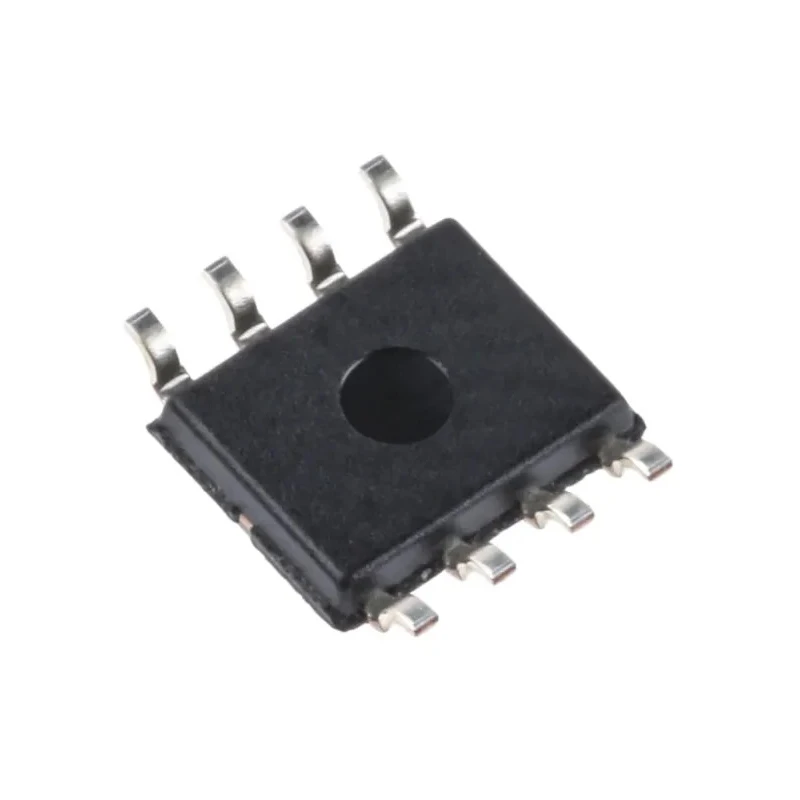

STMicroelectronics 2 kB Serial EEPROM 900 ns 8-Pin SOIC Serial-I2C M24C02-WMN6TP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 5mm |
| Model | M24C02-WMN6TP |
| Width | 150mm |
| Mount Type | Surface |
| Series | M24C02-W |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Memory size | 2kB |
| Interface Type | Serial-I2C |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 1mA |
| Maximum Clock Frequency | 400kHz |
| Organisation | 256 x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 900ns |
| Number of Words | 256 |
Key Features
- This Serial EEPROM features a 2 kB memory size suitable for small storage applications.
- Operates with Serial-I2C interface communication protocol for easy integration.
- Maximum clock frequency is 400 kHz allowing fast data transfer rates.
- Wide operating voltage range from 2.5V to 5.5V ensures compatibility with various systems.
- Supports a temperature range from -40°C to 85°C ensuring reliability in harsh environments.
- Data retention is specified at 200 years for long-term storage stability.
- The supply current is low at 1mA helping in power-sensitive designs.
- Comes with automotive standard AEC-Q100 qualified for demanding automotive applications.
Product Description
STMicroelectronics M24C02-WMN6TP is a 2 kB Serial EEPROM designed for industrial and automotive applications requiring non-volatile memory storage. This device supports a Serial-I2C interface with a maximum clock speed of 400 kHz, allowing efficient data communications within embedded systems.
The EEPROM operates over a supply voltage range of 2.5V to 5.5V and is capable of functioning reliably in temperatures ranging from -40°C to 85°C. Its data retention is exceptionally high at 200 years, supporting long-term data integrity for critical applications.
Featuring an 8-pin SOIC surface-mount package with compact dimensions (5mm length, 150mm width, 1.75mm height), the M24C02-WMN6TP is optimized for space-constrained designs. The memory is organized as 256 words of 8 bits each, suitable for storing small configuration data or calibration constants in embedded systems.
The device draws a low supply current of 1mA during operation, making it suitable for low-power applications. It also meets the automotive industry standard AEC-Q100, making it appropriate for demanding automotive electronic systems.
This Serial EEPROM is compatible with all I2C bus interface modes and is ideal for electronics, industrial automation, automotive electronics, and embedded systems requiring reliable non-volatile memory.
This Serial EEPROM features a 2 kB memory size suitable for small storage applications. Operates with Serial-I2C interface communication protocol for easy integration. Maximum clock frequency is 400 kHz allowing fast data transfer rates.
Wide operating voltage range from 2.5V to 5.5V ensures compatibility with various systems. Supports a temperature range from -40°C to 85°C ensuring reliability in harsh environments. Data retention is specified at 200 years for long-term storage stability.
The supply current is low at 1mA helping in power-sensitive designs. Comes with automotive standard AEC-Q100 qualified for demanding automotive applications. Compact physical dimensions with a length of 5mm, width of 150mm, and height of 1.75mm.
Package type is SOIC with surface mount technology and 8 pins for board placement. Memory organization consists of 256 words each 8 bits wide. Explore similar EEPROM products and components in the Electronics section at EnvMart for industrial and embedded applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a memory size of 2 kB, organized as 256 words of 8 bits each.
The maximum clock frequency for this EEPROM is 400 kHz, allowing for fast data transfer rates.
It operates over a wide supply voltage range from 2.5V to 5.5V, ensuring compatibility with various systems.
This unit supports an operating temperature range from -40°C to 85°C, ensuring reliability in harsh environments.
The data retention is specified at 200 years, providing long-term storage stability for critical applications.
The supply current for this model is low at 1mA, making it suitable for power-sensitive designs.
It comes in an 8-pin SOIC surface-mount package, which is optimized for space-constrained designs.
This unit is AEC-Q100 qualified, making it appropriate for demanding automotive applications.
It supports a Serial-I2C interface, which allows for easy integration into embedded systems.
The maximum random access time is specified at 900 ns, facilitating efficient data access.
The physical dimensions are 5mm in length, 150mm in width, and 1.75mm in height.
It is suitable for industrial automation, automotive electronics, and embedded systems requiring reliable non-volatile memory.
