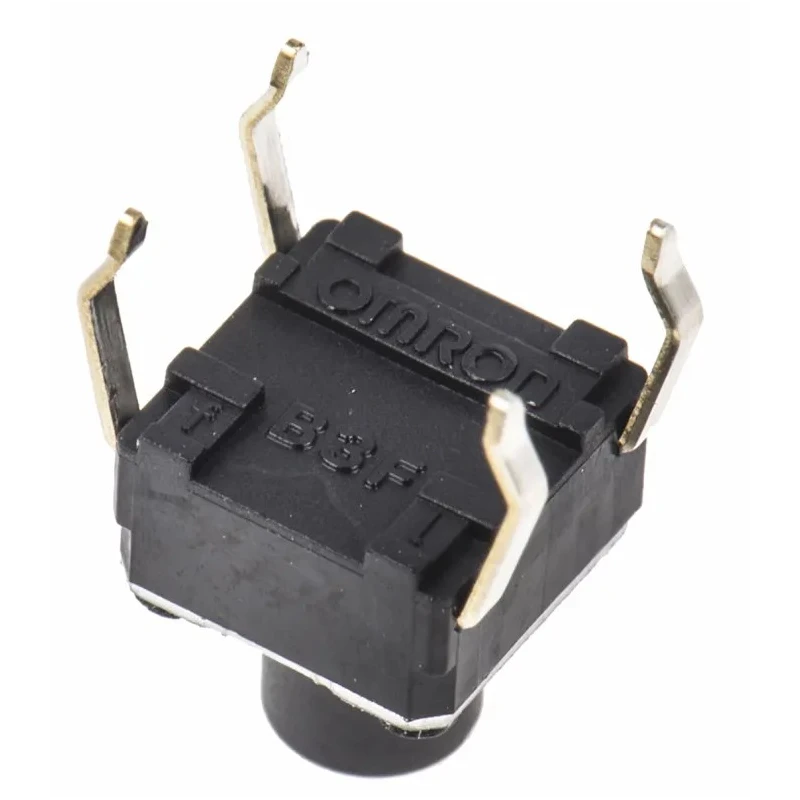

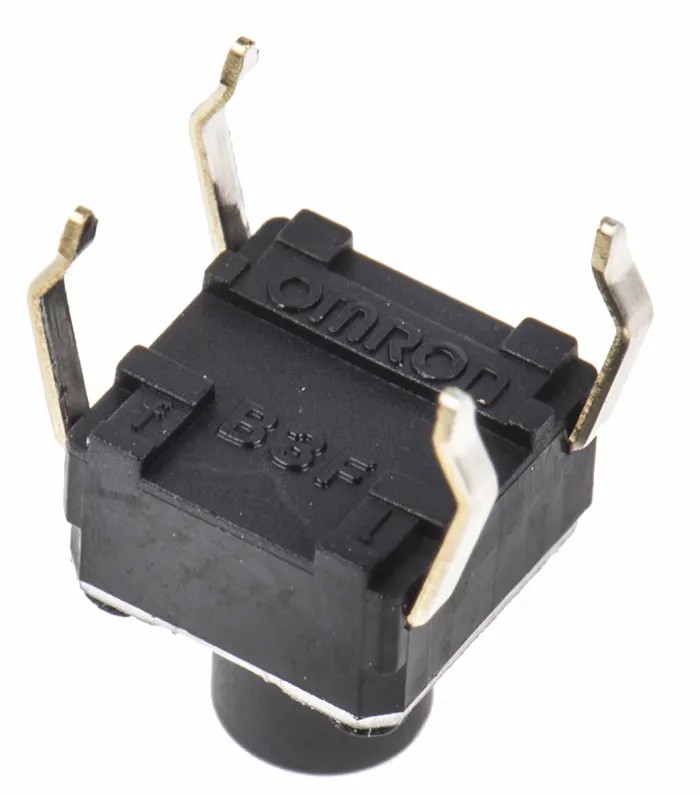

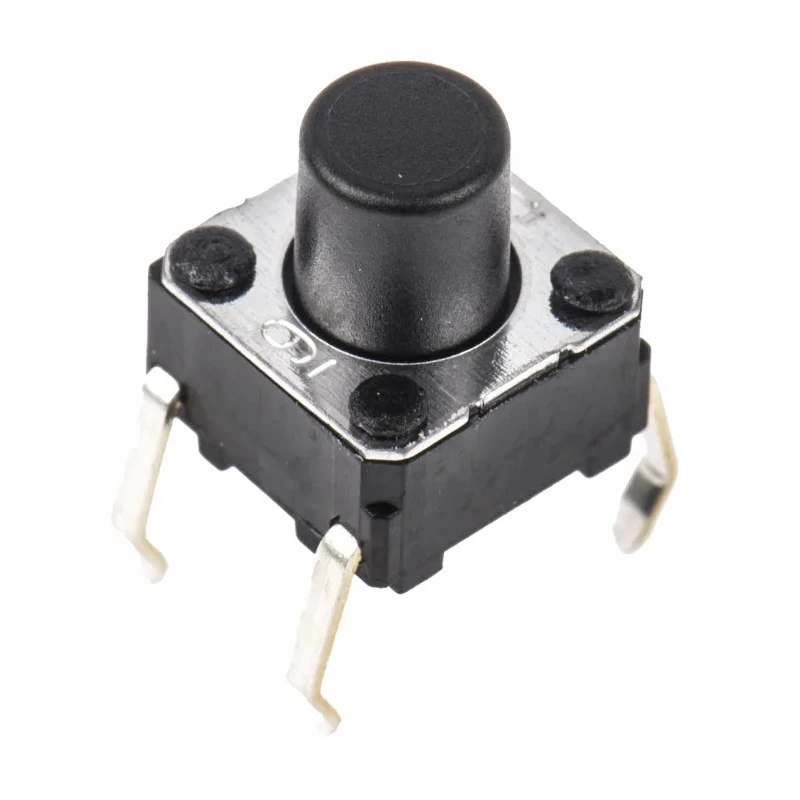

Omron Tactile Switch Plunger 3.6 mm SPST 50mA 24 V dc Through Hole B3F-1060
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 7mm |
| Length | 6mm |
| Model | B3F-1060 |
| IP Rating | IP00 |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | B3F |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Actuator Length | 3.6mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Plunger |
| Switch Contact Current | 50mA |
| Operating Force | 0.98N |
| Mechanical Life | 1000000Operations |
| Aratas IP00 Tactile Switch Plunger, 3.6 mm, SPST 50mA 24 V dc, Through HoleBrand | Omron |
Key Features
- Compact size with 6 mm length, width, and 7 mm height for versatile mounting.
- Through hole mount type ensures secure installation on PCBs.
- Operates reliably between -25°C to 70°C temperature range.
- Low operating force of 0.98N delivers precise tactile feedback.
- Mechanical life rated at 1,000,000 operations for long-lasting use.
- Complies with RoHS standards for environmental safety.
- IP00 rated protection level suitable for controlled environments.
- Non-illuminated plunger style actuator designed for durability.
Product Description
Omron B3F-1060 tactile switch plunger with a 3.6 mm actuator length features SPST contact configuration rated for 50mA at 24 V dc and a through hole mounting style.
This switch is part of the Omron B3F series, designed for precision applications in audio, office, communications, measuring instruments, TVs, and PVRs. The compact 6 x 6 mm footprint and height of 7 mm allow integration in tight spaces on printed circuit boards.
With an operating temperature range from -25°C to 70°C, this tactile switch withstands varying environmental conditions. The 0.98N actuation force offers a positive click feedback and accurate tactile response.
Engineered for longevity, the B3F-1060 supports up to 1,000,000 mechanical operations providing reliable switching over extended periods. Its compliance with RoHS ensures it meets environmental and safety directives.
The IP00 rating indicates no ingress protection, suitable for clean internal applications without exposure to dust or moisture. This tactile switch is ideal for industrial, laboratory, consumer electronics, and commercial electronics requiring high reliability and compact design switches.
Compact 6 mm by 6 mm size with 7 mm height. SPST contact configuration rated 50mA 24 V dc. Through hole mount for easy PCB integration. Operating temperature range: -25°C to 70°C. Operating force: 0.98N for precise tactile feedback.
Mechanical life: 1,000,000 operations. RoHS compliant for environmental safety. IP00 protection level suitable for controlled environments. Explore Omron switches and related electronic components at EnvMart for high-quality Tactile Switch solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact configuration of this model is SPST (Single Pole Single Throw).
The maximum operating temperature for the B3F-1060 is 70°C.
This model requires an operating force of 0.98N for actuation.
The dimensions of this tactile switch are 6 mm in length, 6 mm in width, and 7 mm in height.
The mechanical life of this switch is rated at 1,000,000 operations.
The B3F-1060 uses a through hole mounting type for secure installation on PCBs.
The operating temperature range for the B3F-1060 is from -25°C to 70°C.
The contact current rating for this model is 50mA.
Yes, the B3F-1060 complies with RoHS standards for environmental safety.
The actuator length of the B3F-1060 is 3.6 mm.
The B3F-1060 has an IP00 protection level, indicating no ingress protection.
This tactile switch uses a solder terminal type.
