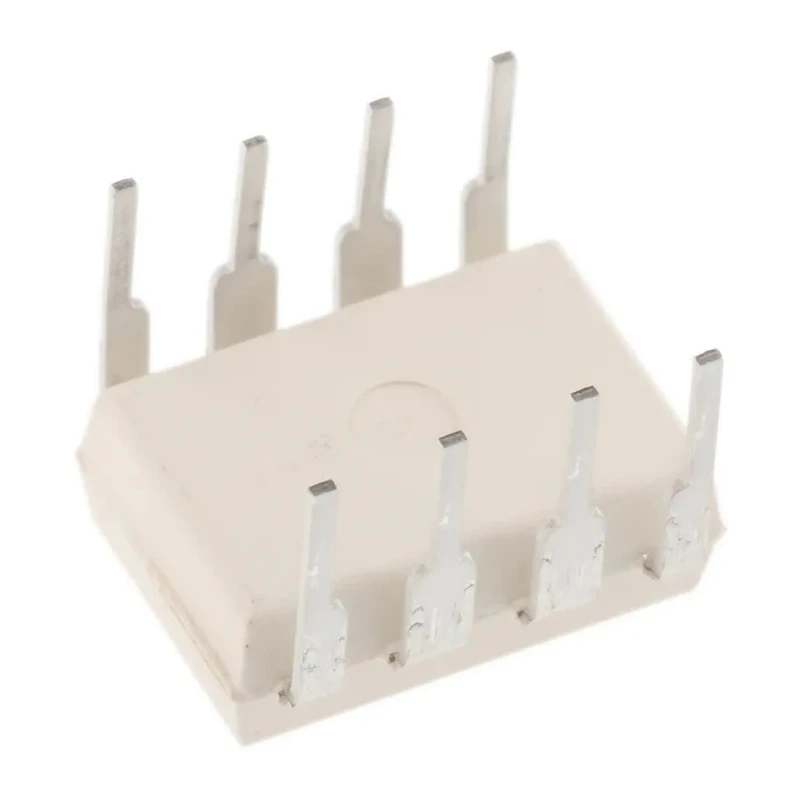

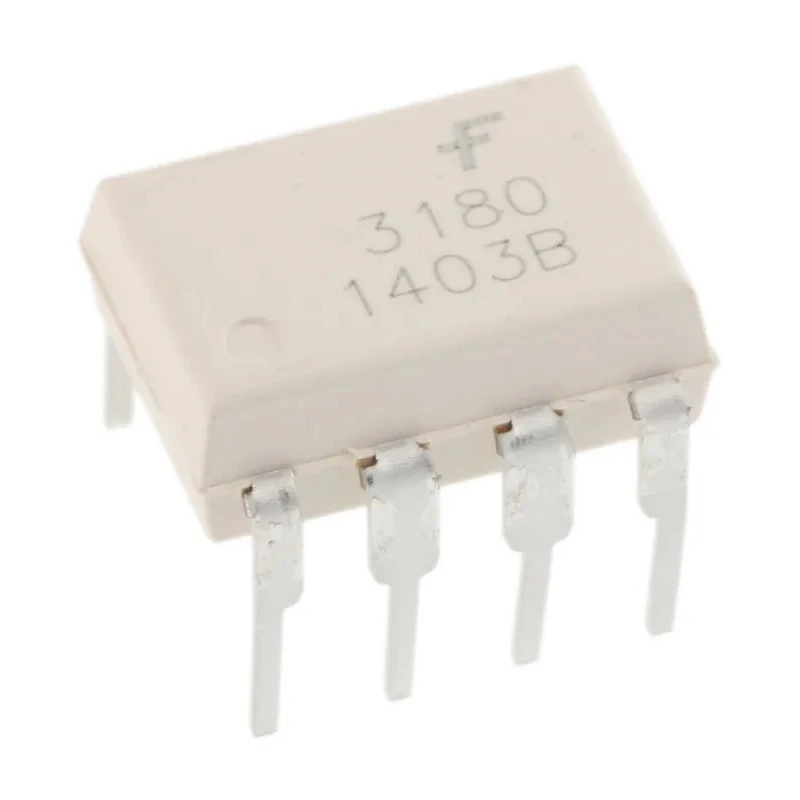

onsemi DC Input Optocoupler Through Hole 8-Pin DIP MOSFET Output, 1 Channel, 25mA Input Current, 1.8V Forward Voltage FOD3180
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | FOD3180 |
| Mount Type | Through Hole |
| Output type | MOSFET |
| Series | FOD |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 25mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL, VDE 0884, C-UL |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 75ns |
| Typical Fall Time | 55ns |
| Broadcom HCPL-3180-000E DC Input Optocoupler, Through Hole, 8-Pin DIPBrand | Broadcom |
Key Features
- Mount type is through hole for easy PCB integration.
- Output is a MOSFET type ensuring fast switching performance.
- Maximum forward voltage is 1.8V supporting low voltage operation.
- Typical rise and fall times are 75ns and 55ns respectively for quick response.
- Input current maximum rating is 25mA with DC input current type.
- Operating temperature ranges from -40°C to 100°C suitable for varied environments.
- Features isolation voltage up to 5kVrms for high electrical separation.
- Complies with UL, VDE 0884, and C-UL standards ensuring safety and reliability.
Product Description
onsemi FOD3180 DC Input Optocoupler is a single-channel isolation device designed for electrical signal separation using a MOSFET output stage in a through hole 8-pin DIP package. It supports a maximum forward voltage of 1.8 volts and allows an input current of up to 25 milliamps DC, delivering efficient opto-isolation for various electronic applications.
This component is fabricated to offer typical rise and fall times of 75 nanoseconds and 55 nanoseconds respectively, ensuring swift signal transmission. Its operating temperature spectrum from -40 to 100 degrees Celsius makes it suitable for demanding industrial, automotive, and automation systems.
The optocoupler provides an isolation voltage rating of 5 kilovolts RMS, enhancing safety and protecting sensitive electronics from high voltages. Its compliance with UL, VDE 0884, and C-UL certifications endorses its quality and adherence to international safety standards.
Typically used in industrial automation, electrical drives, instrumentation, and power supply circuits, the FOD3180 enables reliable control and signal integrity. Its through hole 8-pin DIP form factor permits straightforward mounting on printed circuit boards, aiding assembly and maintenance.
Mount type is through hole for stable mechanical and electrical PCB connection. MOSFET output offers low on-resistance and efficient switching characteristics. Input current DC type with maximum input current of 25mA. Isolation voltage capacity at 5kVrms to ensure robust electrical isolation.
Operating temperature range from -40°C to 100°C suitable for harsh conditions. Compliance with major safety standards UL, VDE 0884, and C-UL. Typical rise time 75ns and fall time 55ns enabling swift signal transitions. Package type DIP with 8 pins for compatibility with legacy and modern PCBs.
This optocoupler is ideal for electronic component assemblies requiring dependable signal isolation such as industrial equipment, power electronics, and telecommunications. For more electronic components and Optocouplers, explore EnvMart's extensive catalog to find the right solution for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for the FOD3180 is 25mA.
It has an isolation voltage rating of up to 5kVrms, providing robust electrical isolation.
The operating temperature range is from -40°C to 100°C, making it suitable for various environments.
This model features a MOSFET output, ensuring efficient switching performance.
The typical rise time is 75ns and the fall time is 55ns, enabling quick signal transitions.
This optocoupler has 1 channel.
The maximum forward voltage for the FOD3180 is 1.8V, supporting low voltage operation.
The package type is DIP with 8 pins, suitable for through hole mounting.
It complies with UL, VDE 0884, and C-UL standards, ensuring safety and reliability.
The mount type is through hole, facilitating easy integration into PCBs.
It is typically used in industrial automation, electrical drives, instrumentation, and power supply circuits.
The country of origin for this optocoupler is India.
