TE Connectivity PCB Power Relay 24V ac Coil 12A Switching Current DPDT PT270R24 1415002-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 35mm |
| Length | 28mm |
| Model | PT270R24 1415002-1 |
| Width | 22.5mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Quick Connect |
| Standards/Approvals | VDE, UL, RoHS, IEC |
| Coil Resistance | 192Ω |
| Coil Voltage | 24V ac |
| Switching AC Voltage | 400V ac |
| Coil Power | 1W |
Key Features
- Operates with a 24V AC coil for standard industrial control systems.
- Double Pole Double Throw (DPDT) contact configuration supports versatile switching needs.
- Compact PCB mount design with dimensions 22.5mm width, 28mm length, and 35mm height.
- Capable of switching up to 12 amps current and 400V AC voltage.
- Quick connect terminals for easy installation and maintenance.
- Contains silver nickel alloy contacts for long-term durability and efficient conductivity.
- Coil resistance rated at 192 ohms with 1 watt coil power consumption.
- Operating temperature range from -40°C to +70°C to handle harsh environments.
Product Description

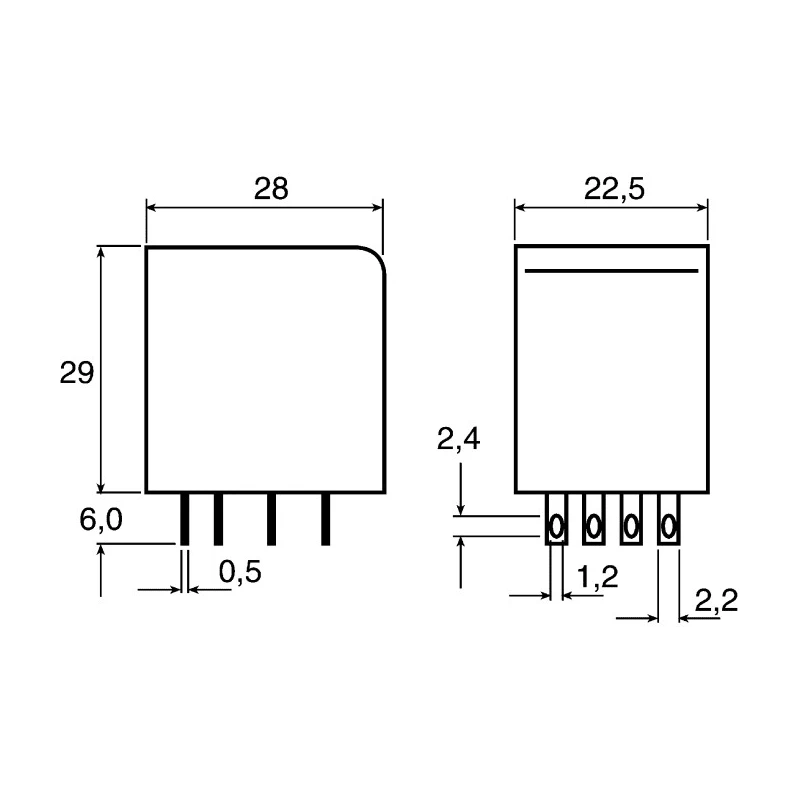

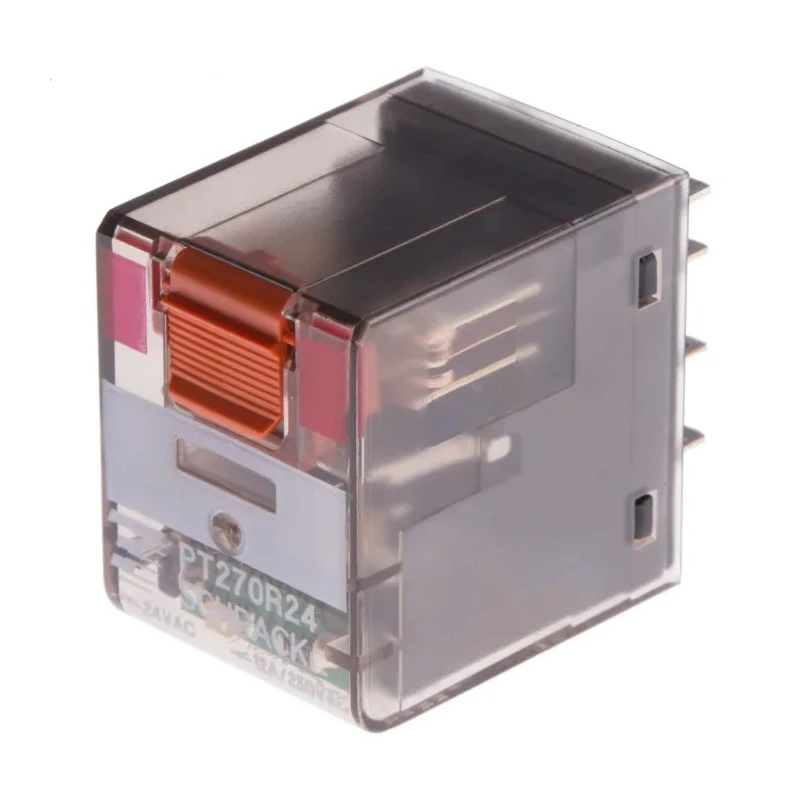

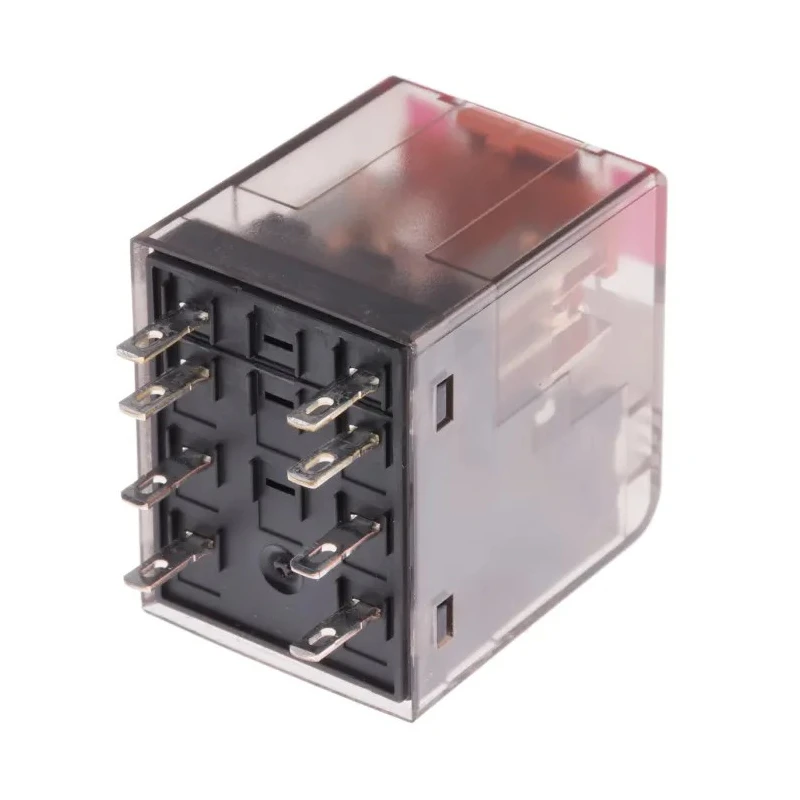

TE Connectivity PT270R24 1415002-1 PCB Power Relay features a 24V AC coil and supports a switching current of 12A with a DPDT contact configuration, making it suitable for demanding electronic and electrical control applications.
This relay is designed for printed circuit board mounting, offering compact size and high performance with a width of 22.5mm, length of 28mm, and height of 35mm. It is constructed with silver nickel alloy contacts ensuring superior conductivity and durability under repeated switching cycles.
The device operates reliably over a temperature range of -40°C to 70°C and is capable of switching AC voltages up to 400V AC and power of 3kVA. Coil characteristics include a resistance of 192 ohms and power consumption of 1 watt, optimized for energy efficiency.
Manufactured under rigorous standards including VDE, UL, RoHS, and IEC, this PT series relay incorporates an LED indicator and mechanical indicator for monitoring status visually. It also offers a manual/lockable test facility, enhancing operational control and safety in industrial environments.
Typical applications include industrial automation, electrical control panels, HVAC systems, manufacturing control circuits, and power management setups. Its plug-in type design simplifies replacement and maintenance in complex assemblies.
Operates with a 24V AC coil for standard industrial control systems. Double Pole Double Throw (DPDT) contact configuration supports versatile switching needs. Compact PCB mount design with dimensions 22.5mm width, 28mm length, and 35mm height.
Capable of switching up to 12 amps current and 400V AC voltage. Quick connect terminals for easy installation and maintenance. Contains silver nickel alloy contacts for long-term durability and efficient conductivity. Coil resistance rated at 192 ohms with 1 watt coil power consumption.
Operating temperature range from -40°C to +70°C to handle harsh environments. Complies with VDE, UL, RoHS, and IEC standards for safety and environmental compliance. Equipped with LED and mechanical indicators for visual status and manual test/lock facility.
