MEAN WELL DC/DC Converter 5V 4.5A 15W DIN Rail Mount Wide Input 9-36V DDR-15G-5

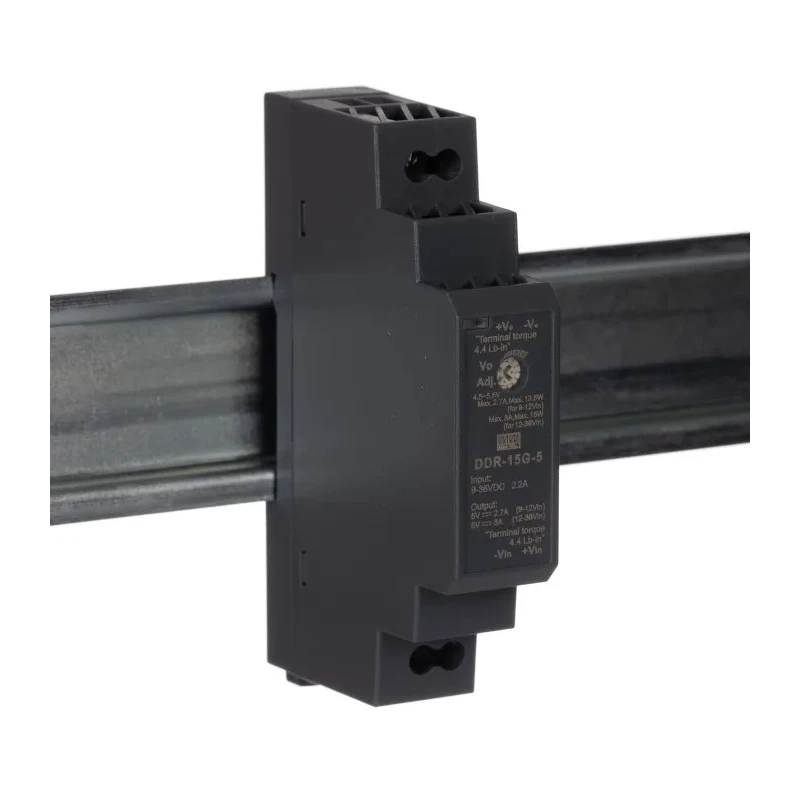

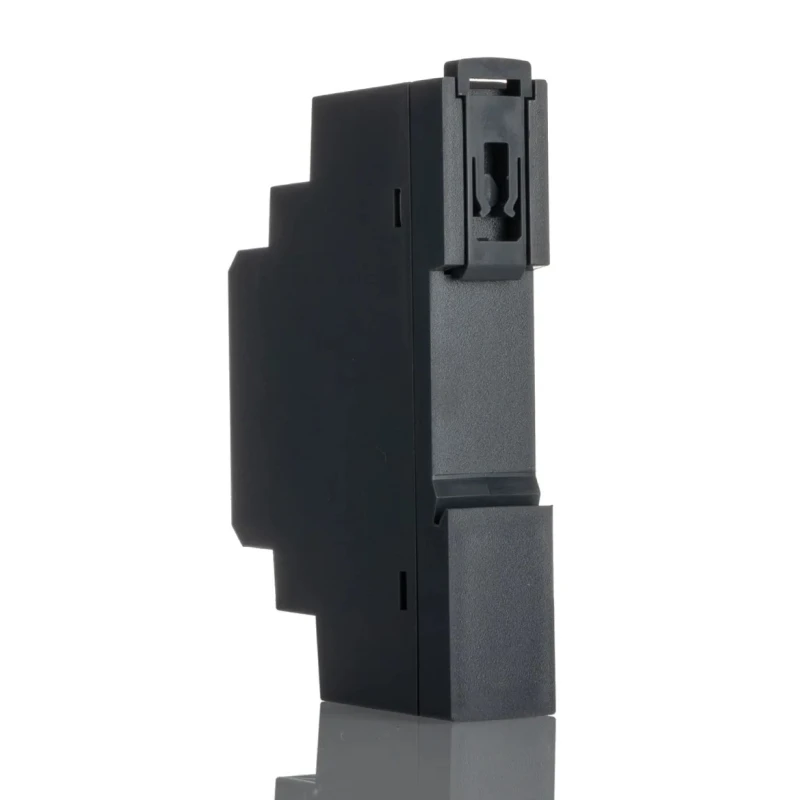

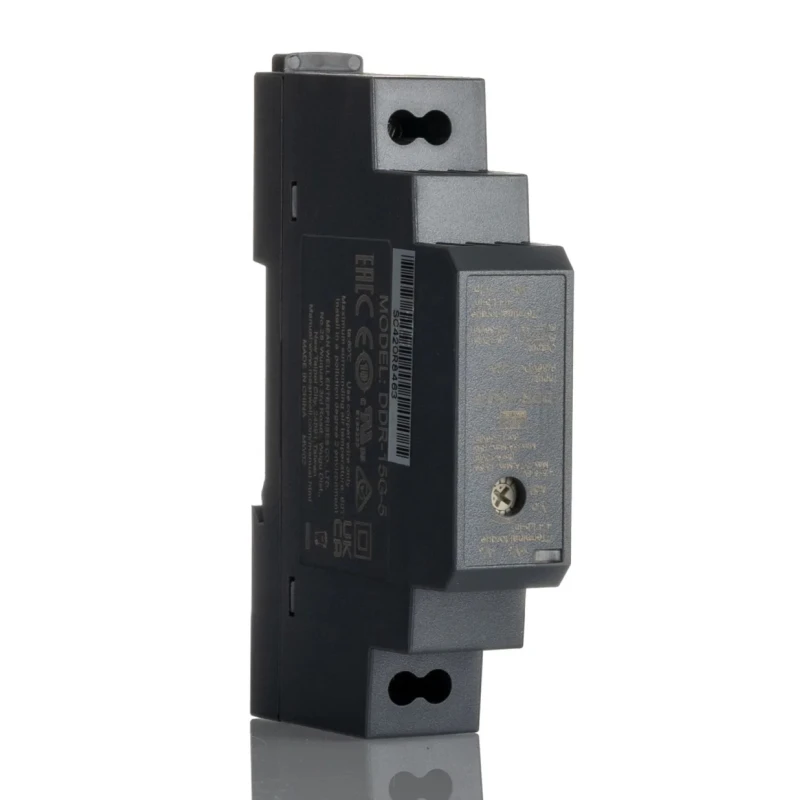

MEAN WELL DDR-15G-5 DC/DC Converter is a high-performance power supply designed for industrial control systems, factory automation, telecommunications, and wireless networks. It converts DC input voltages ranging from 9V to 36V into a stable 5V output with a current capacity of 4.5A and a maximum output power of 15W. The unit features a DIN rail mount suitable for TS-35/7.5 or 15 rails, facilitating integration within compact electrical enclosures.

This converter supports an ultra-wide 4:1 input voltage range and operates reliably in extreme temperatures from -40°C up to 85°C, making it ideal for harsh industrial environments. Its output voltage is adjustable within 4.5V to 5.5V, allowing precision configuration to match system requirements. The device employs free-air convection cooling without the need for fans, enhancing durability.

With a reinforced 4KVdc input/output isolation, the DDR-15G-5 provides exceptional immunity against electrical interference and ensures operator safety. It meets an extensive array of standards including EN55032, EN61000 electromagnetic compatibility norms, IEC 62368-1 safety standards, and UL508 certification. The converter maintains a low ripple and noise of 100mV peak-to-peak, ensuring clean power delivery to sensitive electronic equipment.

Its compact dimensions (17.5mm wide, 54.5mm deep, and 9mm long) support space-saving installations.

Applications for this DC/DC converter include powering industrial control systems, factory automation equipment, electro-mechanical systems, wireless networks, and telecom or datacom systems. Its robust design and wide operating range make it suitable for diverse industrial, commercial, and electronic applications.

Wide 9-36V DC input accommodates variable power sources. DIN rail mounting compatible with TS-35/7.5 or 15 rails for ease of installation. High efficiency of 87% reduces power loss and heat generation. Adjustable output voltage enhances flexibility for specific system needs.

Compliance with stringent industrial safety and EMC standards. Natural convection cooling eliminates moving parts and noise. Robust reinforced isolation protects against electrical disturbances. Compact and lightweight design fits space-constrained environments.

Suitable for industrial and telecom power supply applications. Explore MEAN WELL DDR-15G-5 and other high-reliability DC/DC Converters for your industrial power needs on EnvMart.
