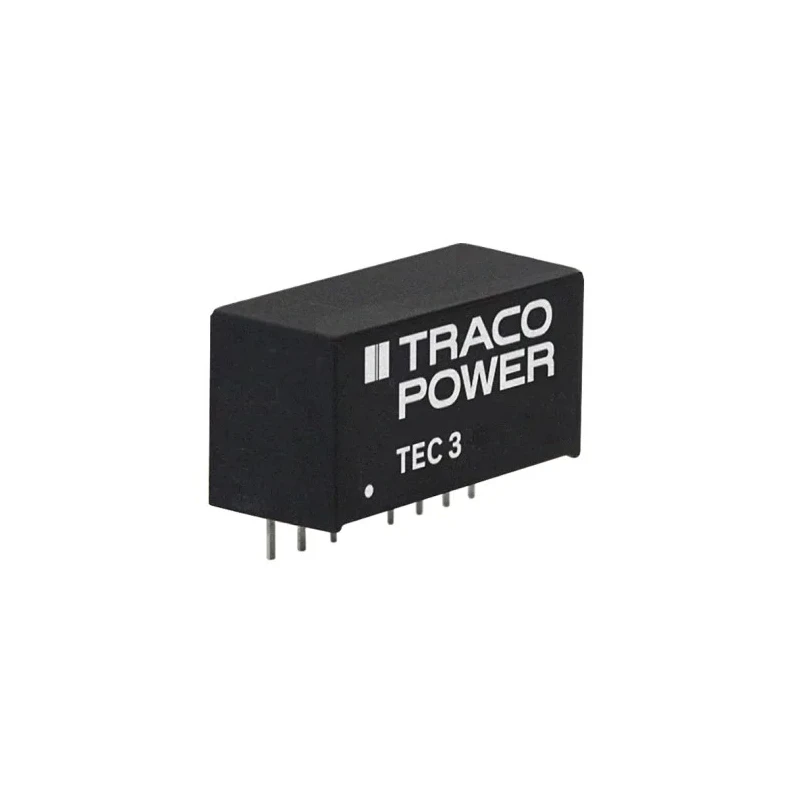

TRACOPOWER DC/DC Converter SIP-8 9V DC Output 333mA 75V DC Max Input 36V Min Input 3W 90°C Max Temperature TEC 3-4819
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEC 3 DC/DC Converter, 9V dc/ 333 mA, 7 |
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 21.8mm |
| Model | TEC 3-4819 |
| Depth | 11.2mm |
| Width | 9.1mm |
| Mount Type | PCB |
| Series | TEC 3 |
| Maximum Operating Temperature | 90°C |
| Package Type | SIP-8 |
| Minimum Operating Temperature | -40°C |
| MTBF | 5124000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 75V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 36V |
| Output Voltage 1 | 9V dc |
| Output Current 1 | 333mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Operates with input voltage range from 36V to 75V DC.
- Maintains high efficiency of 82% during operation.
- Fully regulated output with continuous short circuit protection.
- Supports operating temperature range from -40°C up to 90°C.
- Features I/O isolation voltage of 1.6kV DC ensuring safety and reliability.
- Compact SIP-8 package with dimensions 21.8mm length, 9.1mm width, and 11.2mm depth.
- Designed for reliable operation with MTBF of over 5 million hours.
- Complies with RoHS standards for hazardous substances.
Product Description
TRACOPOWER TEC 3-4819 DC/DC Converter in SIP-8 package provides a regulated 9V DC output at 333mA with a maximum output power of 3W, designed for PCB mounting applications in industrial and electronic systems.
This converter operates efficiently with a wide input voltage range from 36V minimum to 75V maximum DC input, achieving an 82% efficiency that minimizes thermal loss to sustain operation under extended temperature conditions from -40°C to +90°C.
The device features a robust I/O-isolation voltage of 1.6kV DC (tested for 60 seconds) to ensure signal integrity and protection between input and output circuits, critical for industrial, manufacturing, and power management applications.
The compact SIP-8 package, measuring 21.8mm in length, 9.1mm in width, and 11.2mm in depth, enables easy integration into printed circuit boards with a reliable and stable fixing. Additional features include continuous short circuit protection and remote On/Off functionality, enhancing device safety and operational control.
The converter is fully RoHS-compliant, ensuring environmentally friendly usage in line with modern electronic manufacturing standards. Operates with input voltage range from 36V to 75V DC. Maintains high efficiency of 82% during operation.
Fully regulated output with continuous short circuit protection. Supports operating temperature range from -40°C up to 90°C. Features I/O isolation voltage of 1.6kV DC ensuring safety and reliability. Compact SIP-8 package with dimensions 21.8 x 9.1 x 11.2 mm.
Designed for reliable operation with MTBF of over 5 million hours. Complies with RoHS standards for hazardous substances. Includes remote On/Off functionality for flexible control.
This DC/DC converter is ideal for industrial power supplies, electronic control systems, telecommunications, instrumentation, and other applications requiring precise regulated voltages with low noise and high reliability. Its robust operating temperature and isolation ratings make it suitable for harsh environments.
Explore more DC/DC Converters and power management solutions to suit your technical requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with an input voltage range from 36V to 75V DC.
The maximum output power of the TEC 3-4819 is 3W.
It maintains a high efficiency of 82% during operation.
The SIP-8 package measures 21.8mm in length, 9.1mm in width, and 11.2mm in depth.
This unit supports an operating temperature range from -40°C to 90°C.
It features an I/O isolation voltage of 1.6kV DC, ensuring safety and reliability.
Yes, it includes continuous short circuit protection for enhanced safety.
This converter is designed for PCB mounting applications.
It is designed with an MTBF of over 5 million hours.
Yes, it complies with RoHS standards for hazardous substances.
It is ideal for industrial power supplies, electronic control systems, telecommunications, and instrumentation.
The output current for the TEC 3-4819 is 333mA.
