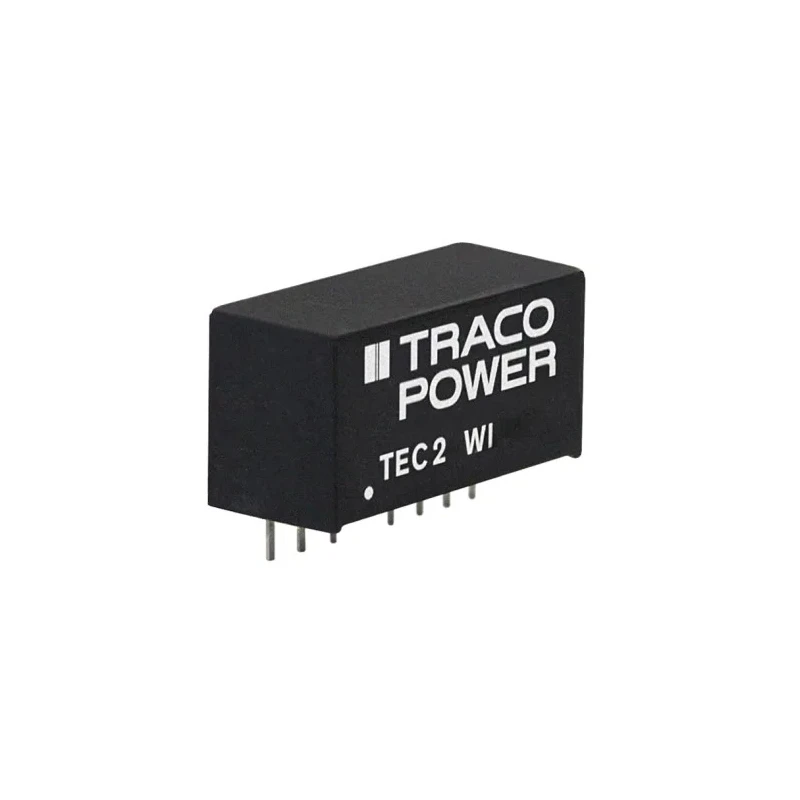

TRACOPOWER 2 Watt SIP-8 Fully Regulated DC/DC Converter 12V DC Output 167 mA Input 4.5-18V DC TEC 2-1212WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEC 2WI DC/DC Converter, 12V dc/ 167 mA |
| Brand | TRACOPOWER |
| Efficiency | 81% |
| Length | 21.8mm |
| Model | TEC 2-1212WI |
| Depth | 11.2mm |
| Width | 9.1mm |
| Mount Type | PCB |
| Series | TEC 2WI |
| Maximum Operating Temperature | 93°C |
| Package Type | SIP-8 |
| Minimum Operating Temperature | -40°C |
| MTBF | 6621000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 18V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 167mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Ultra-wide 4 | 1 input voltage range |
| Input Ratio4 | 1 |
Key Features
- The converter offers a compact SIP-8 package ideal for space-saving designs.
- Fully regulated output supports stable operation from 0 to 100% load with no minimum load required.
- High isolation voltage of 1.6 kV DC ensures effective protection and safety.
- Operational temperature range spans from -40°C to +93°C for demanding industrial environments.
- Maximum output power is 2 Watts optimized for low-power applications.
- Efficiency of 81% reduces thermal losses for improved performance.
- Continuous short circuit protection enhances reliability and safety.
- Remote On/Off functionality enables controlled power management.
Product Description
TRACOPOWER TEC 2-1212WI is a high-performance 2 Watt DC/DC converter designed to deliver a regulated 12V DC output at 167 mA, suitable for PCB mount (SIP-8) implementations. It accepts a wide input voltage range from 4.5 to 18V DC, featuring an ultra-wide 4:1 input voltage ratio to support varying power supply conditions.
Built to enhance cost efficiency and operational performance, this converter improves on previous designs by boosting efficiency by over 20%, thereby reducing thermal dissipation and allowing the unit to operate reliably within a -40°C to +93°C temperature range, making it ideal for harsh industrial environments.
The converter provides continuous short circuit protection and a remote On/Off capability, enhancing safety and control in embedded and industrial power applications. With an isolation voltage of 1.6 kV DC, it maintains electrical isolation between input and output, ensuring user and system safety.
The TEC 2-1212WI features a compact SIP-8 package and complies with RoHS standards, highlighting its environmentally friendly design and manufacturability. The compact SIP-8 form factor allows for space-efficient integration on printed circuit boards.
Wide operating temperature range covers extremes from -40°C up to +93°C. Fully regulated output negates the need for load requirements to maintain voltage stability. Remote On/Off provides enhanced control capabilities for system integration.
High isolation voltage safeguards both equipment and operators against electrical faults. Continuous short circuit protection improves overall system reliability. RoHS compliance ensures environmental and safety standards adherence.
Manufactured in Taiwan (Province of China), guaranteeing quality production standards.
This DC/DC converter is suitable for a variety of industrial and electronic applications requiring stable, isolated power conversion such as instrumentation, control systems, communication equipment, and embedded electronics.
For professional applications requiring compact, efficient DC voltage conversion with enhanced safety features, the TRACOPOWER TEC 2-1212WI offers an optimal solution. Explore further reliability and performance options in the EnvMart Electronics & Electricals DC/DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 2 Watts.
It accepts an input voltage range from 4.5V to 18V DC.
The efficiency of this unit is rated at 81%.
The dimensions of the SIP-8 package are 21.8mm in length, 11.2mm in depth, and 9.1mm in width.
The isolation voltage is 1.6 kV DC, providing effective protection and safety.
The operational temperature range spans from -40°C to +93°C.
Yes, it features continuous short circuit protection to enhance reliability and safety.
It is designed for PCB mounting.
This model has one output.
It is suitable for a variety of industrial and electronic applications requiring stable, isolated power conversion.
The converter complies with RoHS standards, ensuring environmental and safety adherence.
The input ratio for this DC/DC converter is 4:1, accommodating varying power supply conditions.
