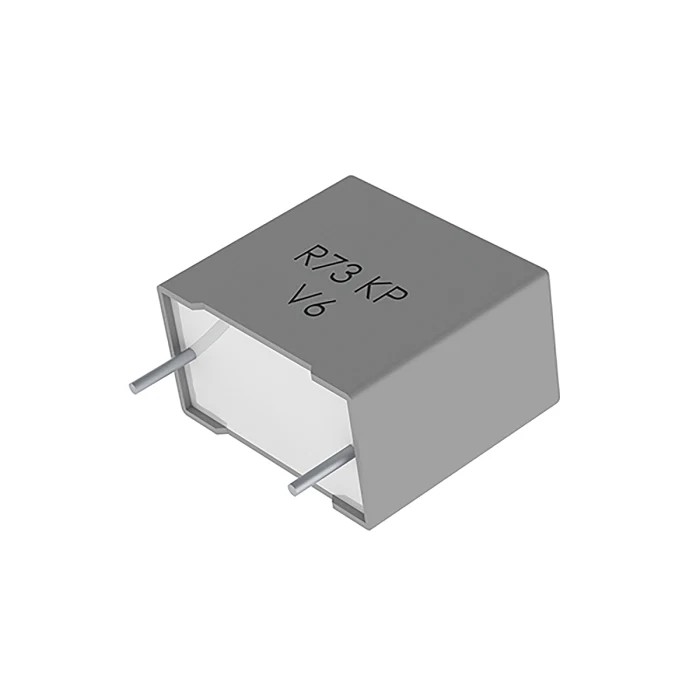

KEMET R73 Film Capacitor, ±5 % Tolerance, 15 nF Capacitance, 1.6 kV DC, 450 V AC, Through Hole Mount R73TN21504000J

KEMET R73TN21504000J Film Capacitor is a high-quality passive electronic component designed to provide stable capacitance of 15 nF with a tolerance of ±5 % for precision circuit applications. This capacitor is rated for a DC voltage of 1.6 kV and an AC voltage of 450 V, making it suitable for demanding high-voltage environments and high-frequency applications.

The capacitor uses polypropylene film and metal foil or metallized film construction, providing excellent electrical characteristics and durability. It features radial lead terminals with through hole mount type, ensuring secure and reliable PCB installation. The leads have a 22.5 mm pitch and are 30 mm in length, allowing precise placement and soldering on circuit boards.

This device operates efficiently within a broad temperature range from -55°C up to 105°C, making it ideal for automotive and industrial environments requiring robust electronic components. It is AEC-Q200 certified, confirming its compliance with automotive quality standards. The capacitor is encapsulated in a self-extinguishing plastic case that provides resistance to solvents and mechanical stresses, enhancing safety and component lifespan.

The R73 series capacitors have a low dissipation factor (0.03% to 0.1%), which contributes to reduced energy losses during operation. The component is RoHS compliant and meets IEC 60286-2 standards, ensuring it is environmentally friendly and meets international quality benchmarks.

Typical applications include use in power electronics, power supply filters, coupling and decoupling circuits, and various high-frequency filtering tasks in industrial, automotive, and electronic manufacturing sectors. The capacitor is packed in bags to maintain cleanliness and protect it during transport and storage.

Capacitance of 15 nF with ±5 % tolerance for accurate circuit behavior. Rated 1.6 kV DC and 450 V AC voltage withstand provides reliability in high-voltage circuits. Through hole radial lead mount facilitates secure PCB installation.

Wide operating temperature from -55°C to 105°C permits use in harsh environments. Meets RoHS and IEC 60286-2 standards with AEC-Q200 automotive certification. Constructed using polypropylene film and metal foil for high performance.

Lead pitch of 22.5 mm and lead length of 30 mm for consistent mounting. Low dissipation factor minimizes energy loss in operation. Suitable for industrial, automotive, and electronic applications requiring stable capacitance.

Supplied in protective bag packaging. Explore our Electronics Components category for advanced capacitors and other critical components for your design and manufacturing needs.
