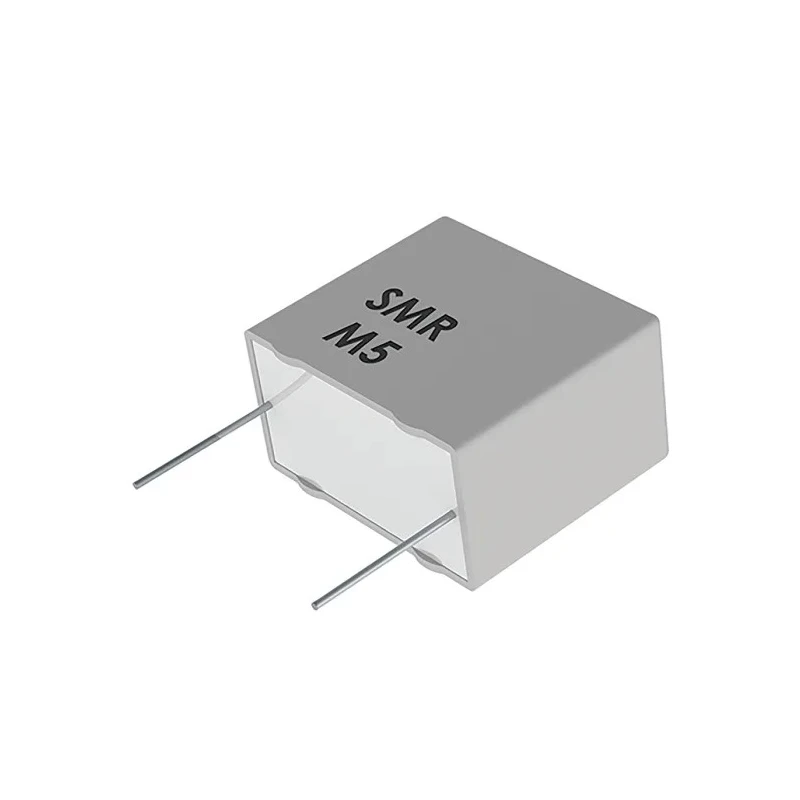

KEMET SMR Film Capacitor, Through Hole, ±5 % Tolerance, 22 nF Capacitance, 100 V DC, 63 V AC, Lead SMR5223J100J01L16.5CBULK

KEMET SMR5223J100J01L16.5CBULK is a film capacitor with metallized polyphenylene sulfide dielectric and vacuum-evaporated aluminium electrodes designed for through hole mounting. This capacitor offers a capacitance of 22 nF with a tolerance of ±5 %, rated for 100 V DC and 63 V AC voltage applications. Its 5 mm lead pitch and 16.5 mm lead length enable compatibility with typical PCB assembly processes.

The capacitor is encapsulated in a self-extinguishing material, enhancing safety during operation. It operates efficiently within a temperature range of -55°C up to 150°C, allowing its deployment in demanding industrial and automotive environments where temperature extremes are common.

Standards compliance includes IEC 60068-1 and RoHS, ensuring the component meets international quality and environmental regulations. The capacitor leads are made of tinned wire, welded electrically to ensure reliable connectivity.

This product is commonly used in power electronics, signal filtering, and general PCB assembly where precision film capacitors with stable electrical characteristics and long-term durability are required. The SMR series covers a range of capacitances and voltage ratings for versatile design requirements.

The capacitor features a ±5 % capacitance tolerance for precision applications. It uses metallized polyphenylene sulfide film dielectric with vacuum-evaporated aluminium electrodes. The lead pitch is 5 mm, suitable for standard PCB mounting through holes.

Rated for an operating temperature range of -55°C to 150°C, supporting robust industrial use. Encapsulated in a self-extinguishing material ensuring safety and durability. Lead length is 16.5 mm with radial tinned wire leads solderable via standard techniques.

Complies with IEC 60068-1 and RoHS standards, assuring reliability and environmental compliance. Suitable for automotive and industrial electronic applications requiring stable capacitance and wide temperature resilience.

This capacitor is ideal for applications in industrial manufacturing, automotive electronics, HVAC controls, power supply filters, and laboratory instrumentation. It combines reliability, precision, and safety in a compact package.
