TE Connectivity PCB Power Relay 24V DC Coil 8A Switching Current SPDT V23061B1007A301
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 30mm |
| Model | V23061B1007A301 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | MSR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 2.3kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 254mW |
| Certified | VDE, UL, CSA, SEV, SEMKO, SETI |
Key Features
- Operates on a 24V DC coil voltage with a coil resistance of 2.3kΩ.
- Supports an 8A switching current and 400V AC switching voltage.
- Features SPDT contact configuration for versatile switching.
- Compact PCB mount type with solder terminal connections.
- Suitable for operation in extreme temperatures from -40°C to 85°C.
- Constructed with silver alloy contact material for enhanced conductivity and durability.
- Complies with RoHS standards ensuring environmental safety.
- Coil power consumption is 254mW, ensuring low energy usage.
Product Description
TE Connectivity V23061B1007A301 PCB Power Relay is a robust power relay designed for PCB mounting, featuring a 24V DC coil and an 8A switching capacity suitable for industrial, electrical, and automation applications.
This SPDT (Single Pole Double Throw) relay provides reliable switching action with silver alloy contacts to ensure signal integrity under high inrush currents and demanding conditions.
The MSR series relay supports operation between -40°C and 85°C, making it ideal for varied environmental conditions. Its coil resistance of 2.3kΩ and coil power of 254mW offer efficient electrical performance while minimizing energy consumption.

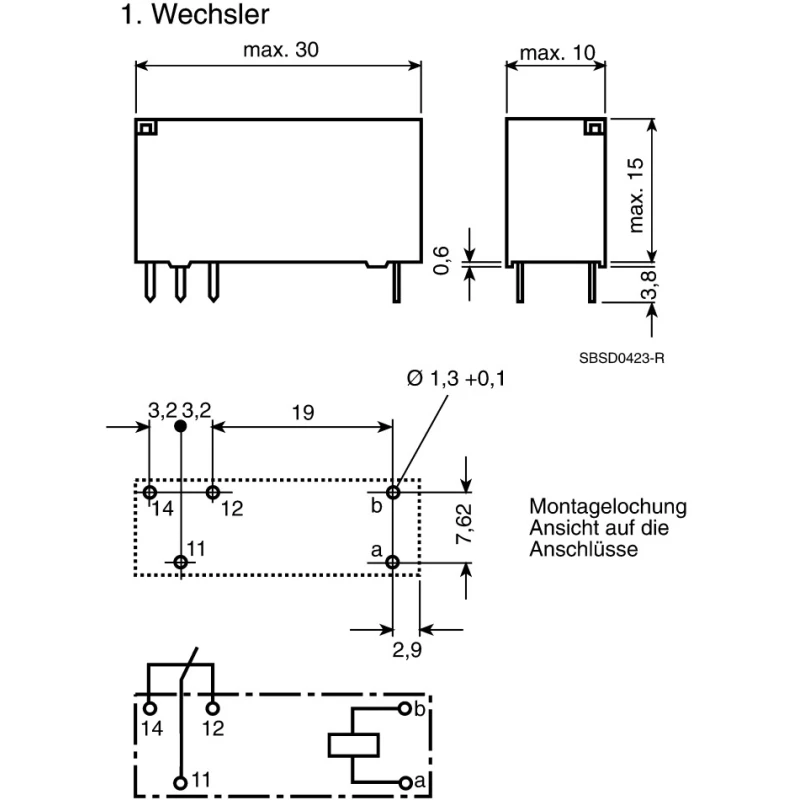

With dimensions of 30mm length, 10mm width, and 15mm height, it integrates seamlessly onto printed circuit boards with solder terminal connections for secure mounting.
This relay complies with RoHS directives, ensuring compliance with environmental and safety regulations. Certification from VDE, UL, CSA, SEV, SEMKO, and SETI affirms its quality and reliability.
Operates on 24V DC coil voltage with 2.3kΩ resistance. Supports an 8A switching current and 400V AC switching voltage. SPDT contact configuration provides versatile switching capability. Compact PCB mount with solder terminals enhances installation convenience.
Wide operating temperature range of -40°C to 85°C for versatile environments. Silver alloy contact material ensures durability and conductivity. Low coil power consumption of 254mW reduces energy use. Certified compliant to major international standards (VDE, UL, CSA, SEV, SEMKO, SETI).
This product is ideal for industrial automation, electrical control panels, HVAC systems, manufacturing equipment, and other commercial electrical applications requiring dependable power relay switching.
Discover more Power Relays and related electronic components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates on a 24V DC coil voltage.
This model supports an 8A switching current.
It features a Single Pole Double Throw (SPDT) contact configuration for versatile switching.
The relay has dimensions of 30mm in length, 10mm in width, and 15mm in height.
The coil resistance is 2.3kΩ.
It can switch voltages up to 400V AC.
It can operate in temperatures ranging from -40°C to 85°C.
This unit features solder terminal connections for secure mounting on PCBs.
It is certified by VDE, UL, CSA, SEV, SEMKO, and SETI, ensuring compliance with various safety standards.
The coil power consumption is 254mW, which helps in minimizing energy usage.
The contacts are made from silver alloy, enhancing conductivity and durability.
It is suitable for industrial automation, electrical control panels, HVAC systems, and manufacturing equipment.
